Seat Heating Element - Driver Back (KA1)

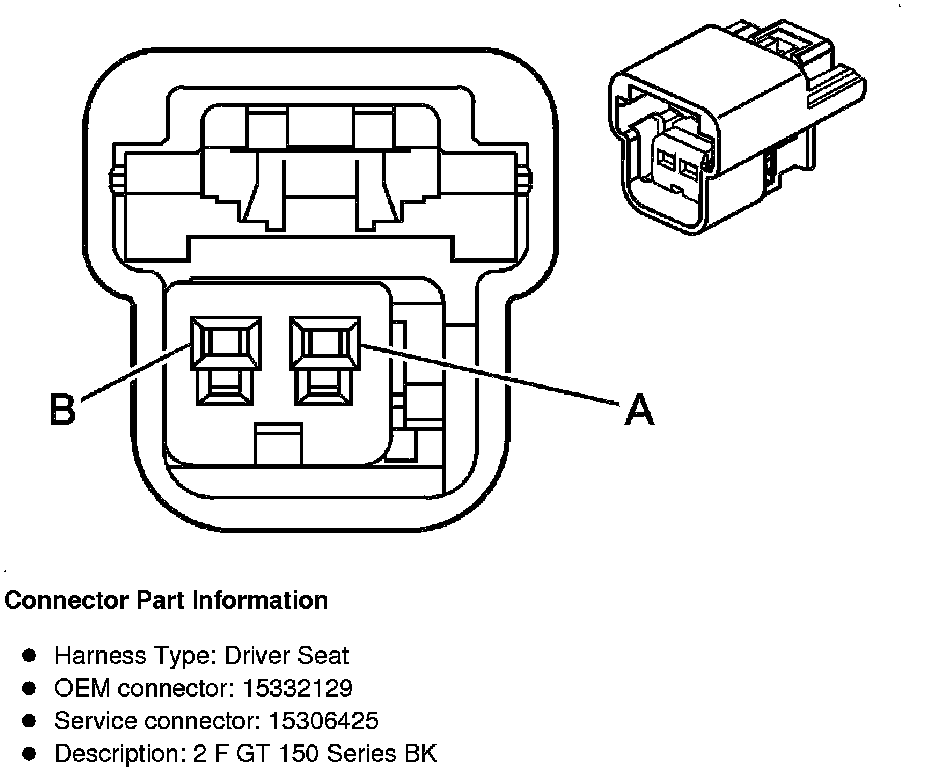

Component Connector End Views

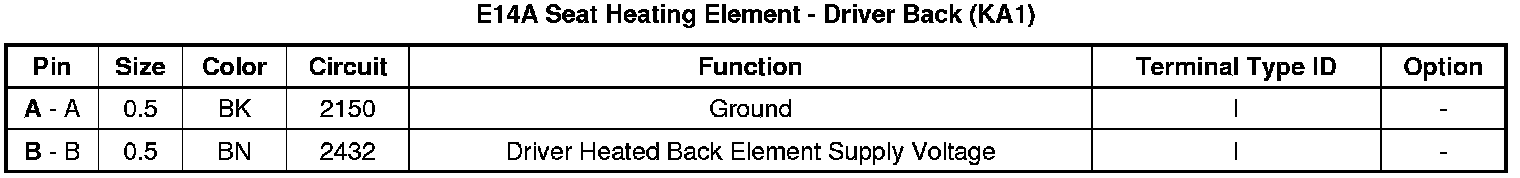

E14A Seat Heating Element - Driver Back (KA1)
