Radar Sensor Module - Long Range




Component Connector End Views

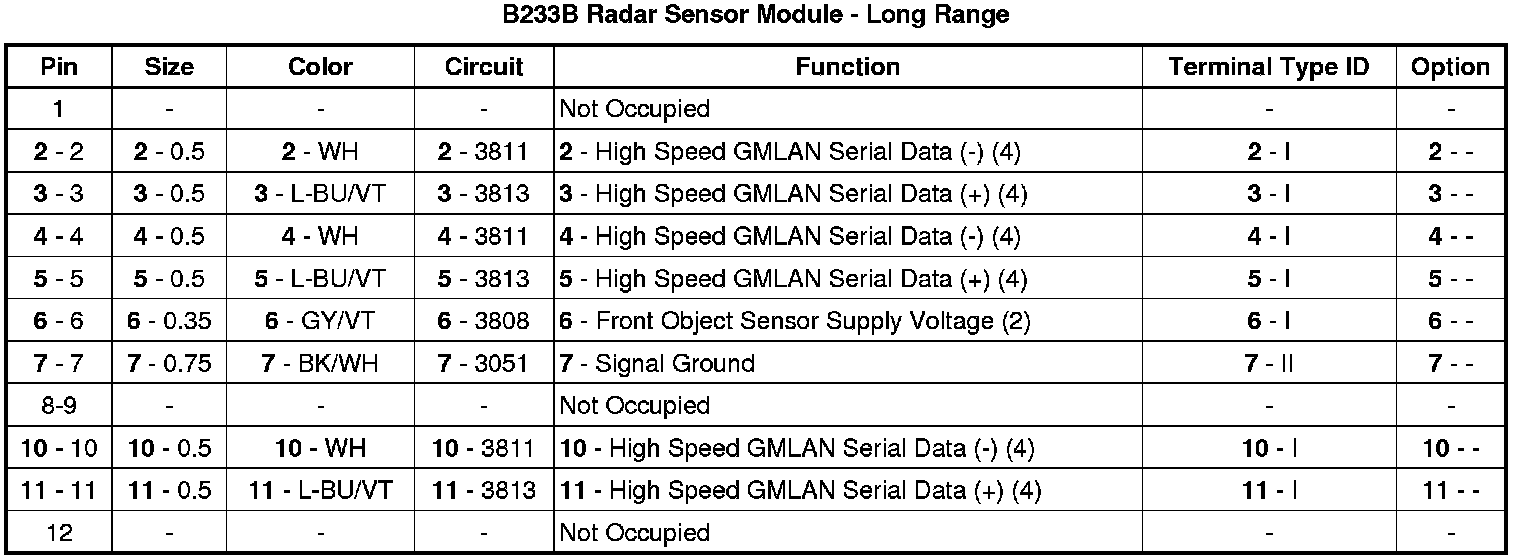

B233B Radar Sensor Module - Long Range
