Accessory DC/AC Power Inverter Module

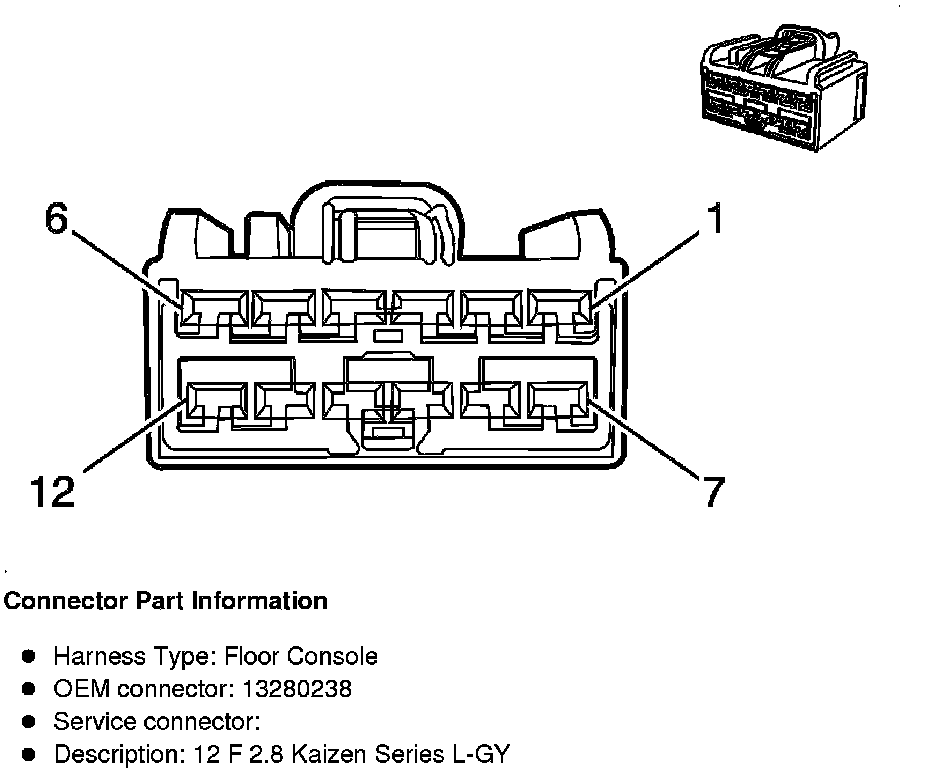

Component Connector End Views

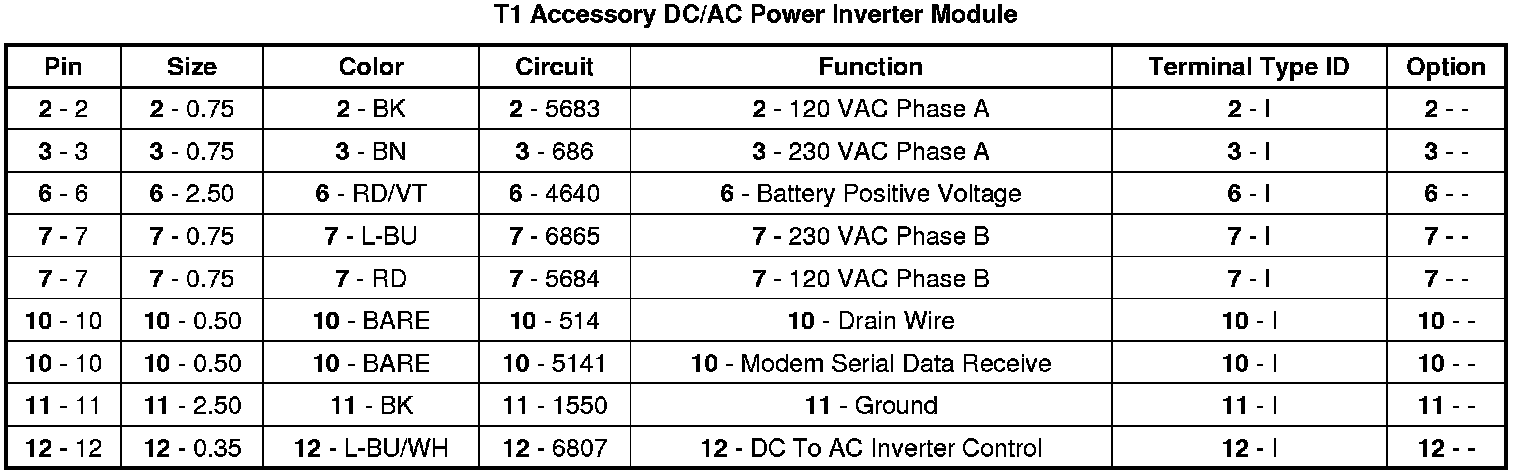

T1 Accessory DC/AC Power Inverter Module
