Impact Sensor
>>
Front Impact Sensor - Left
Front Impact Sensor - Left

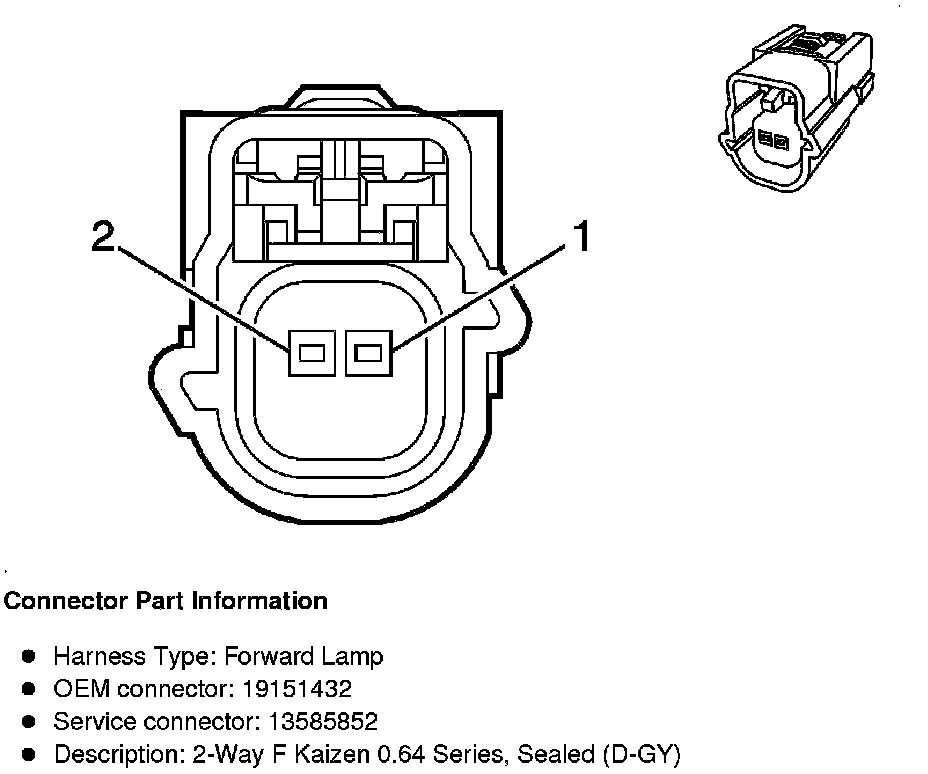

Component Connector End Views

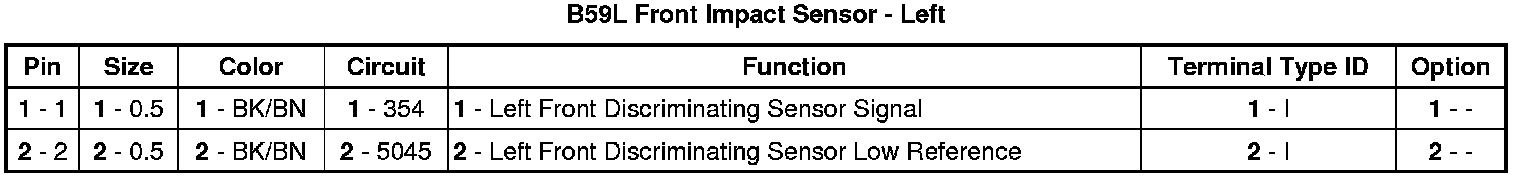

B59L Front Impact Sensor - Left
