Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Level Sensor >> Fuel Level Sensor - Secondary (F46)

Fuel Level Sensor - Secondary (F46)

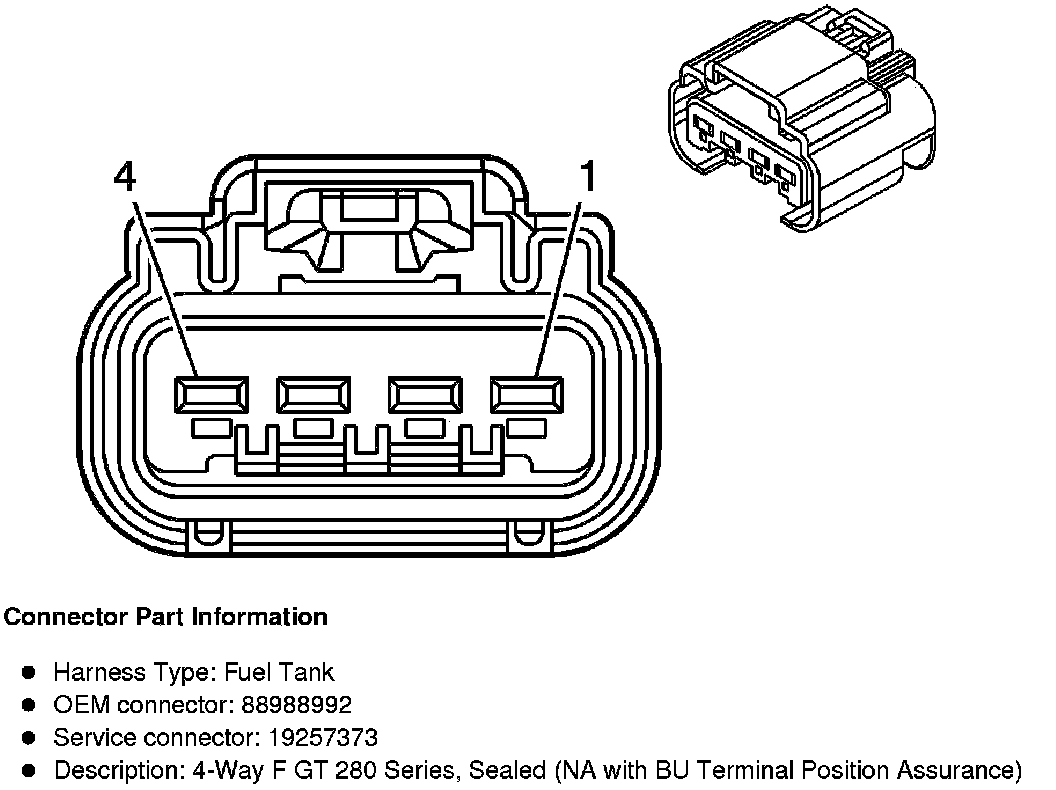

Component Connector End Views

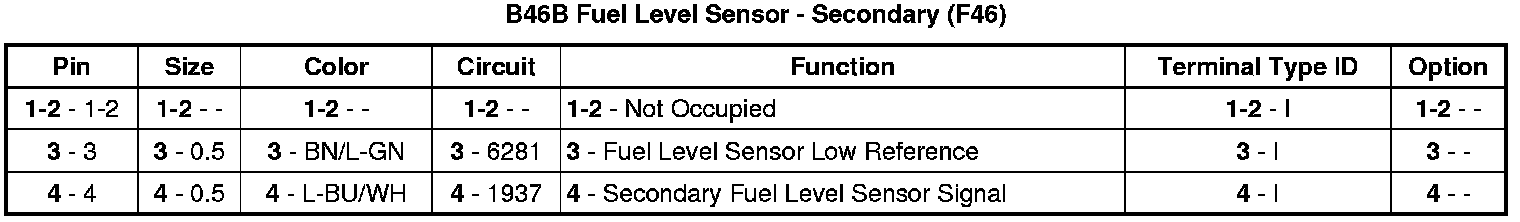

B46B Fuel Level Sensor - Secondary (F46)
