Dome Lamp
>>
System Diagram
>>
Dome/Reading Lamps - Front Overhead Console
Dome/Reading Lamps - Front Overhead Console

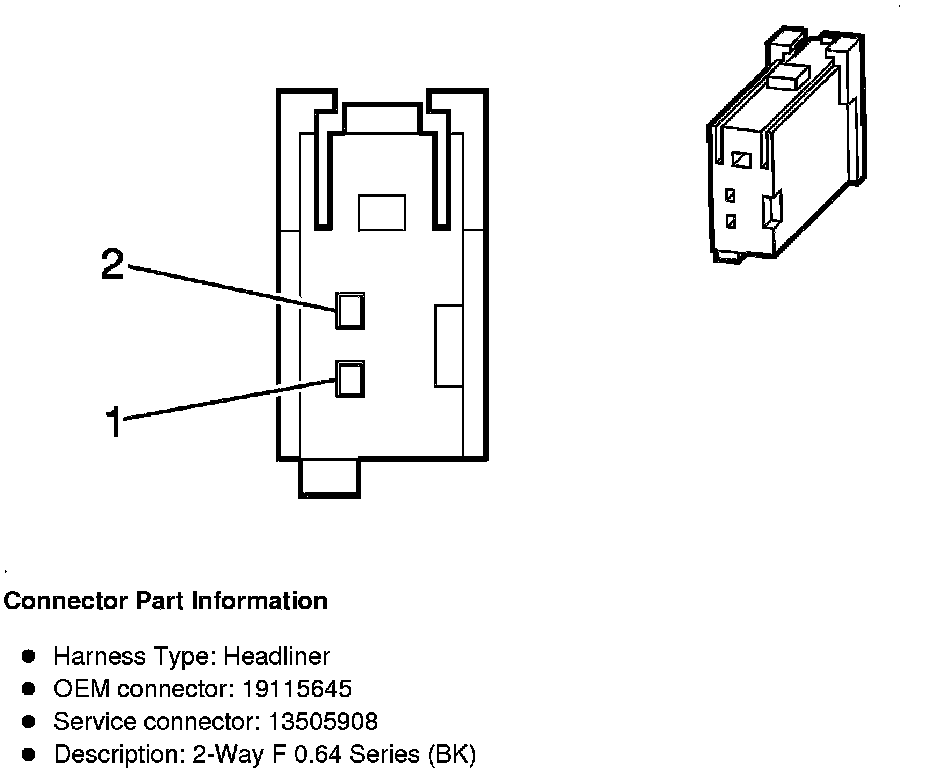

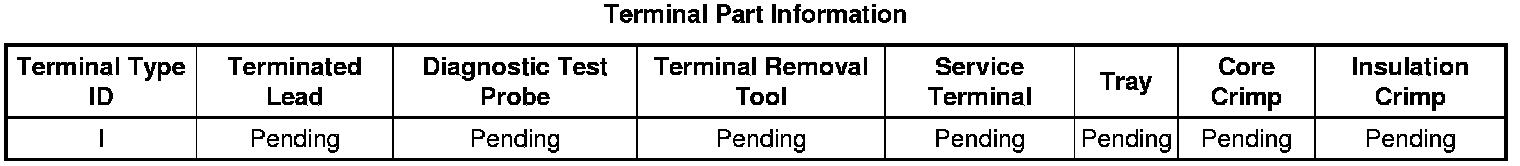

Component Connector End Views

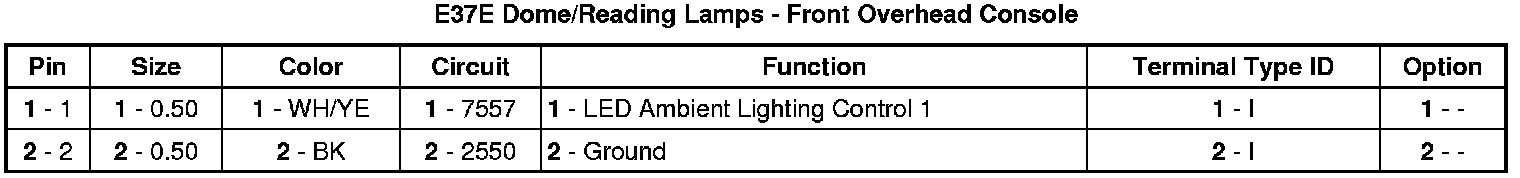

E37E Dome/Reading Lamps - Front Overhead Console
