Flood Lamp - Driver Door Pull Handle (TSP)
Flood Lamp - Driver Door Pull Handle (TSP)

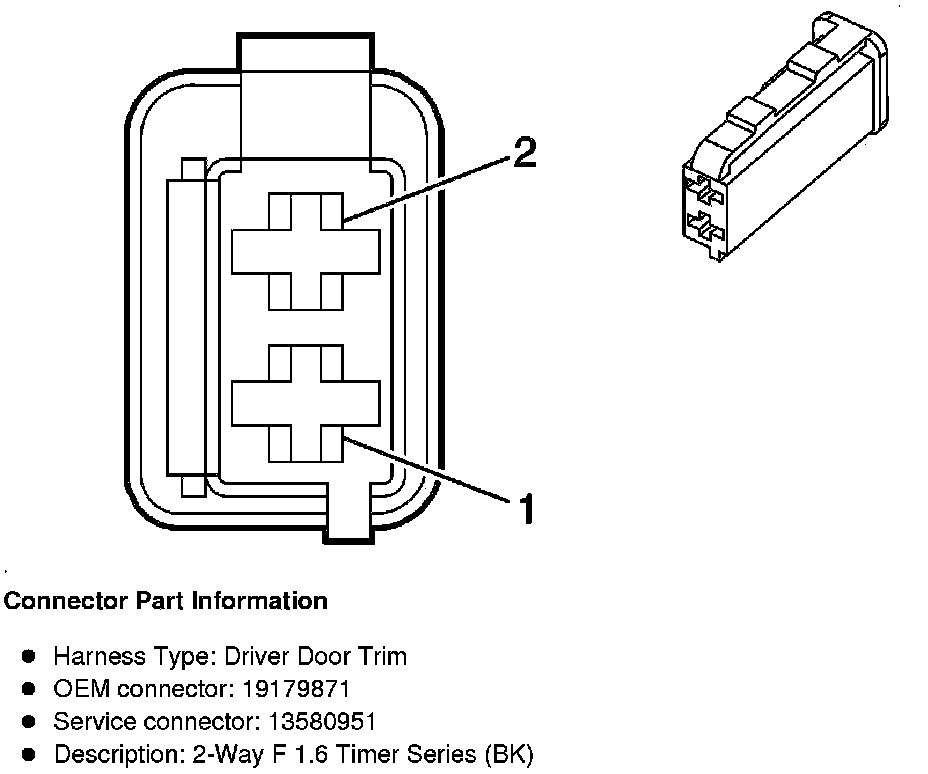

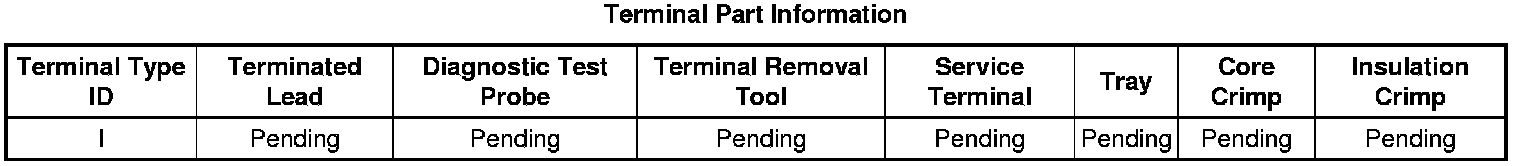

Component Connector End Views

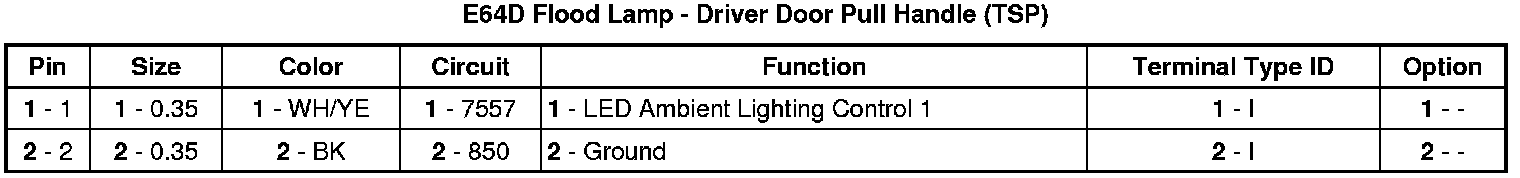

E64D Flood Lamp - Driver Door Pull Handle (TSP)
