Accessory Power Receptacle - Instrument Panel

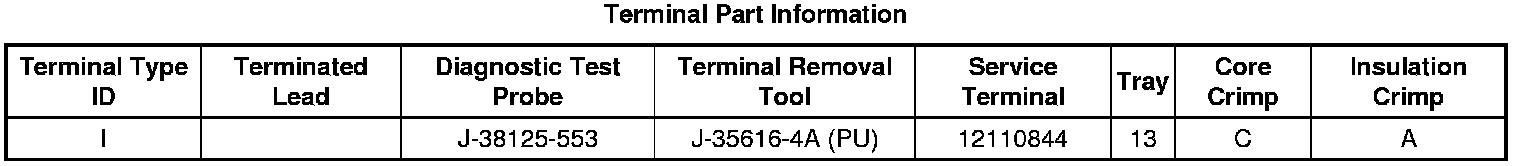

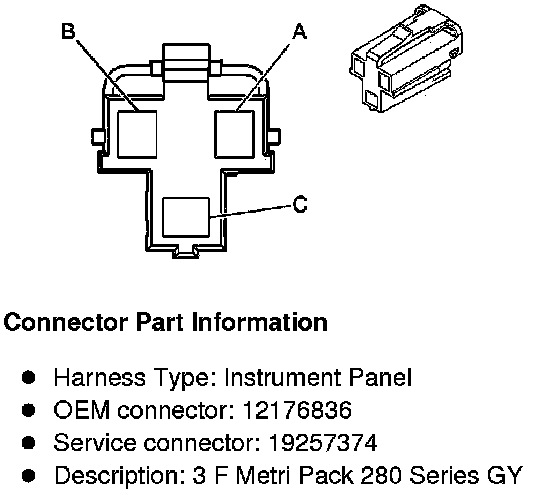

Component Connector End Views

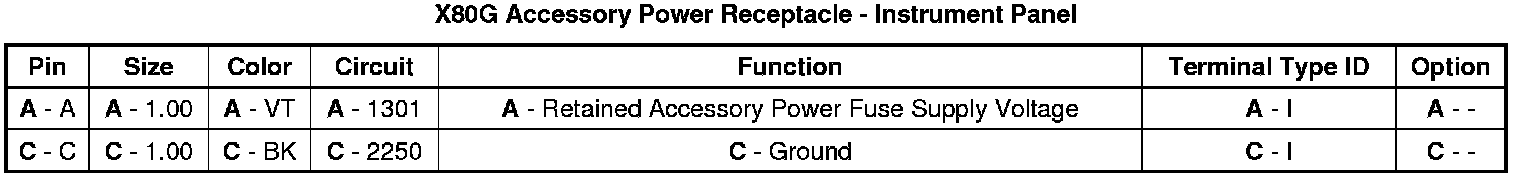

X80G Accessory Power Receptacle - Instrument Panel
