Auxiliary Power Outlet
>>
Accessory Power Receptacle - Center Console Compartment
Accessory Power Receptacle - Center Console Compartment

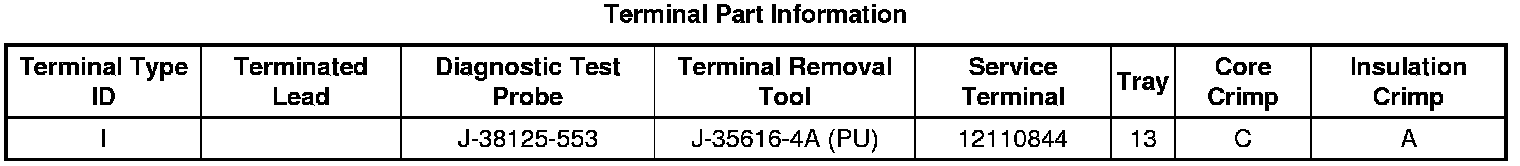

Component Connector End Views

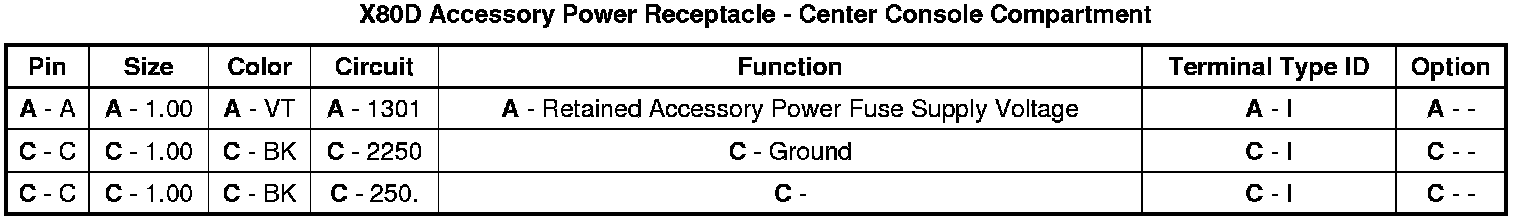

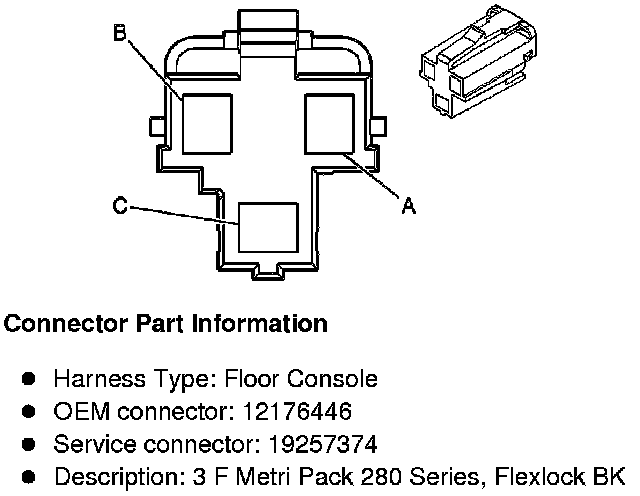

X80D Accessory Power Receptacle - Center Console Compartment
