Accessory Power Outlet - Center Console (Uplevel)

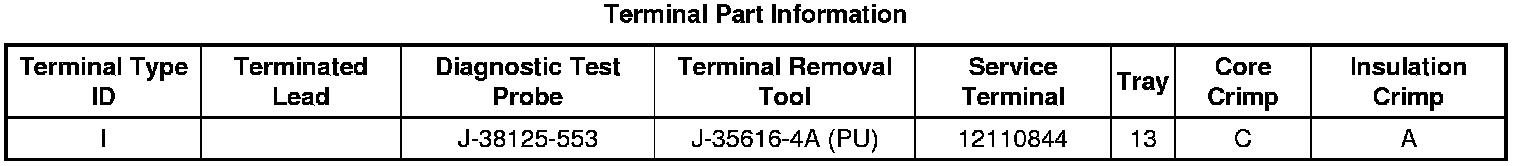

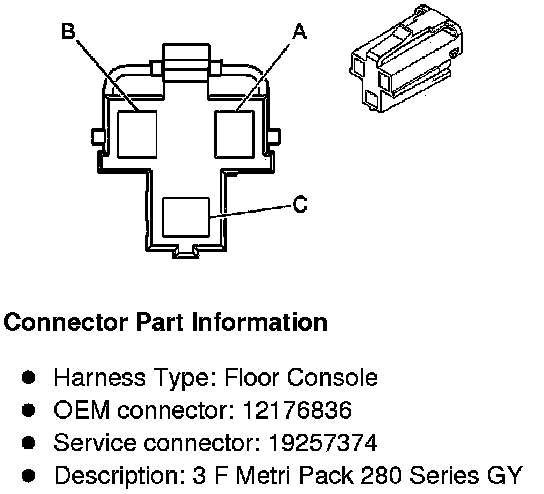

Component Connector End Views

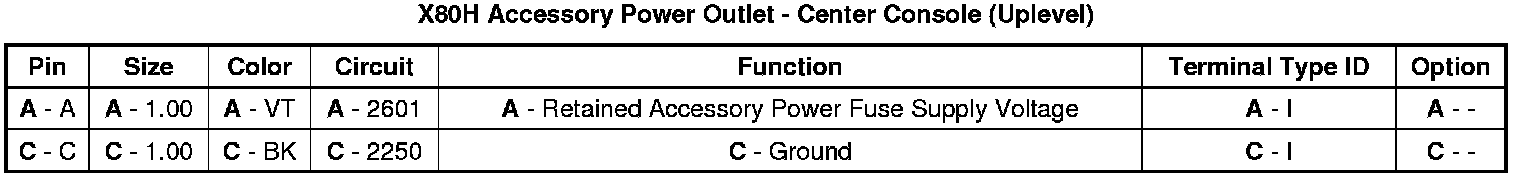

X80H Accessory Power Outlet - Center Console (Uplevel)
