Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antenna - Keyless Entry >> Keyless Entry Antenna - Center Console Front

Keyless Entry Antenna - Center Console Front

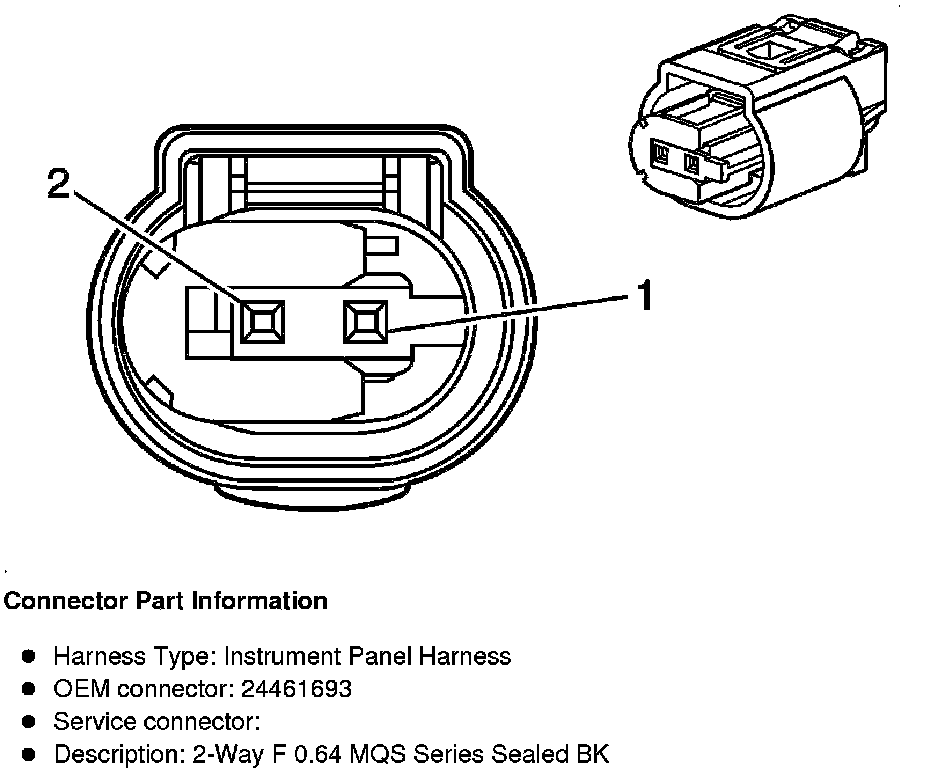

Component Connector End Views

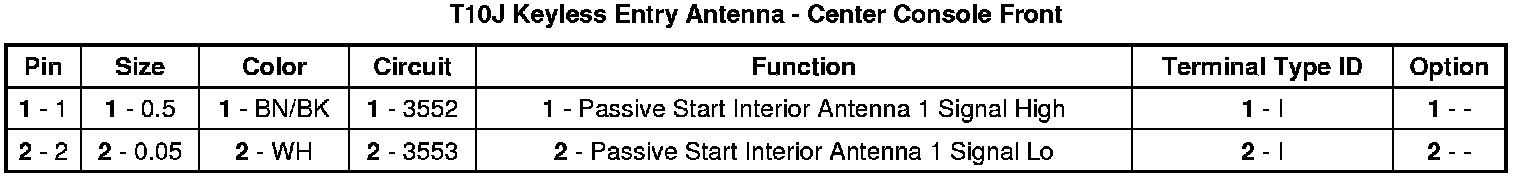

T10J Keyless Entry Antenna - Center Console Front
