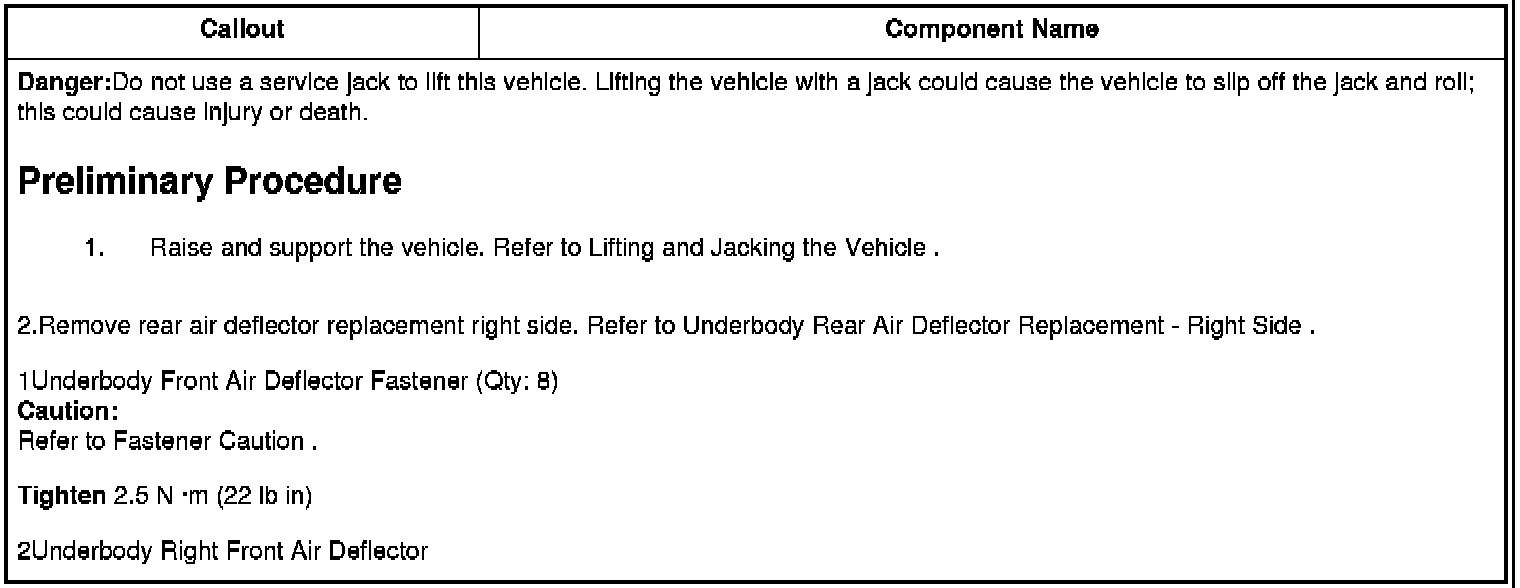

Underbody Front Air Deflector Replacement - Right Side

Underbody Front Air Deflector Replacement - Right Side











2.Remove rear air deflector replacement right side. Refer to Underbody Rear Air Deflector Replacement - Right Side Underbody Rear Air Deflector Replacement - Right Side .

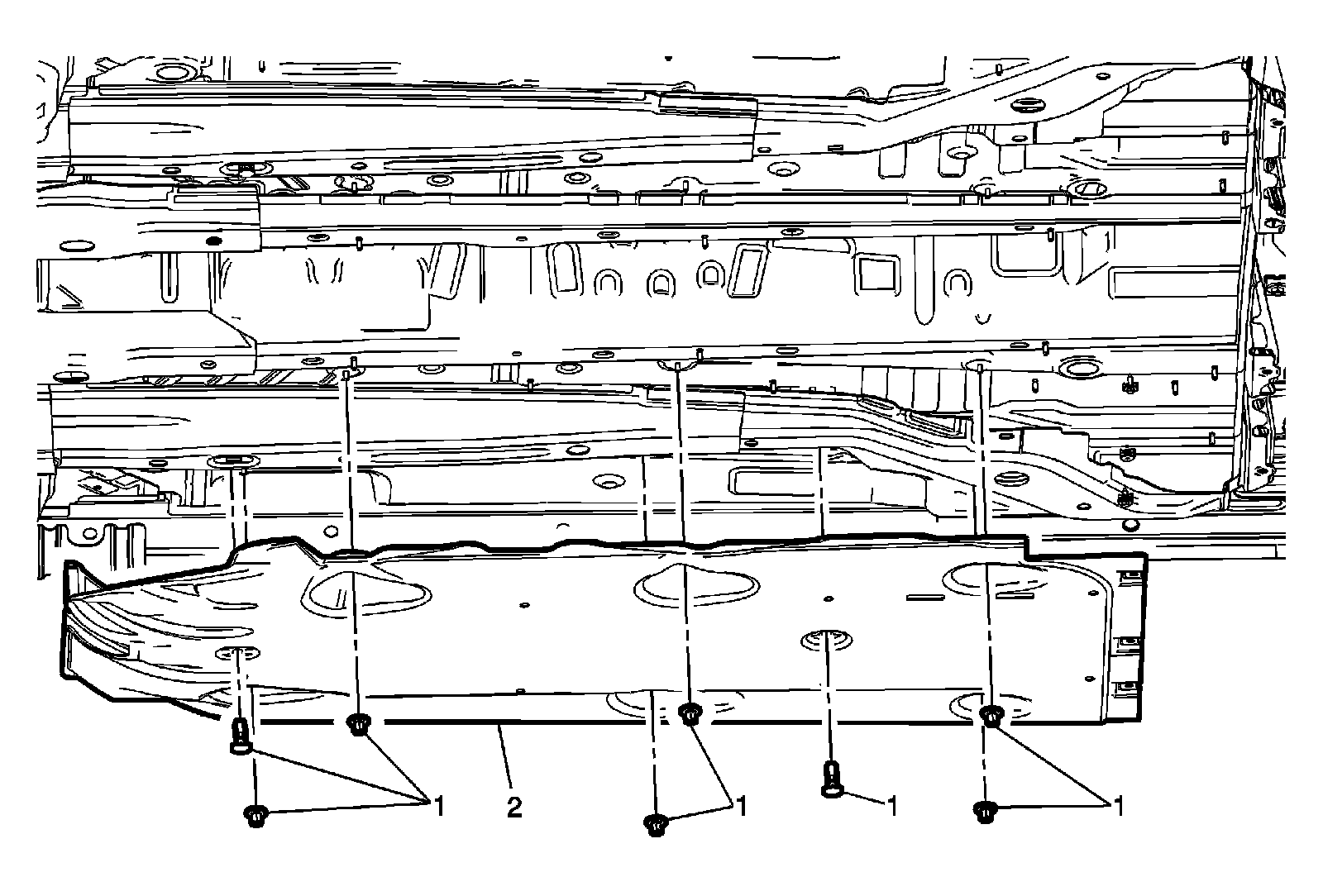

1Underbody Front Air Deflector Fastener (Qty: 8)
Caution:Refer to Fastener Caution .
Tighten 2.5 N �m (22 lb in)

2Underbody Right Front Air Deflector
