Underbody Front Air Deflector Replacement - Left Side

Underbody Front Air Deflector Replacement - Left Side











2.Remove rear air deflector replacement left side. Refer to Underbody Rear Air Deflector Replacement - Left Side Underbody Rear Air Deflector Replacement - Left Side .

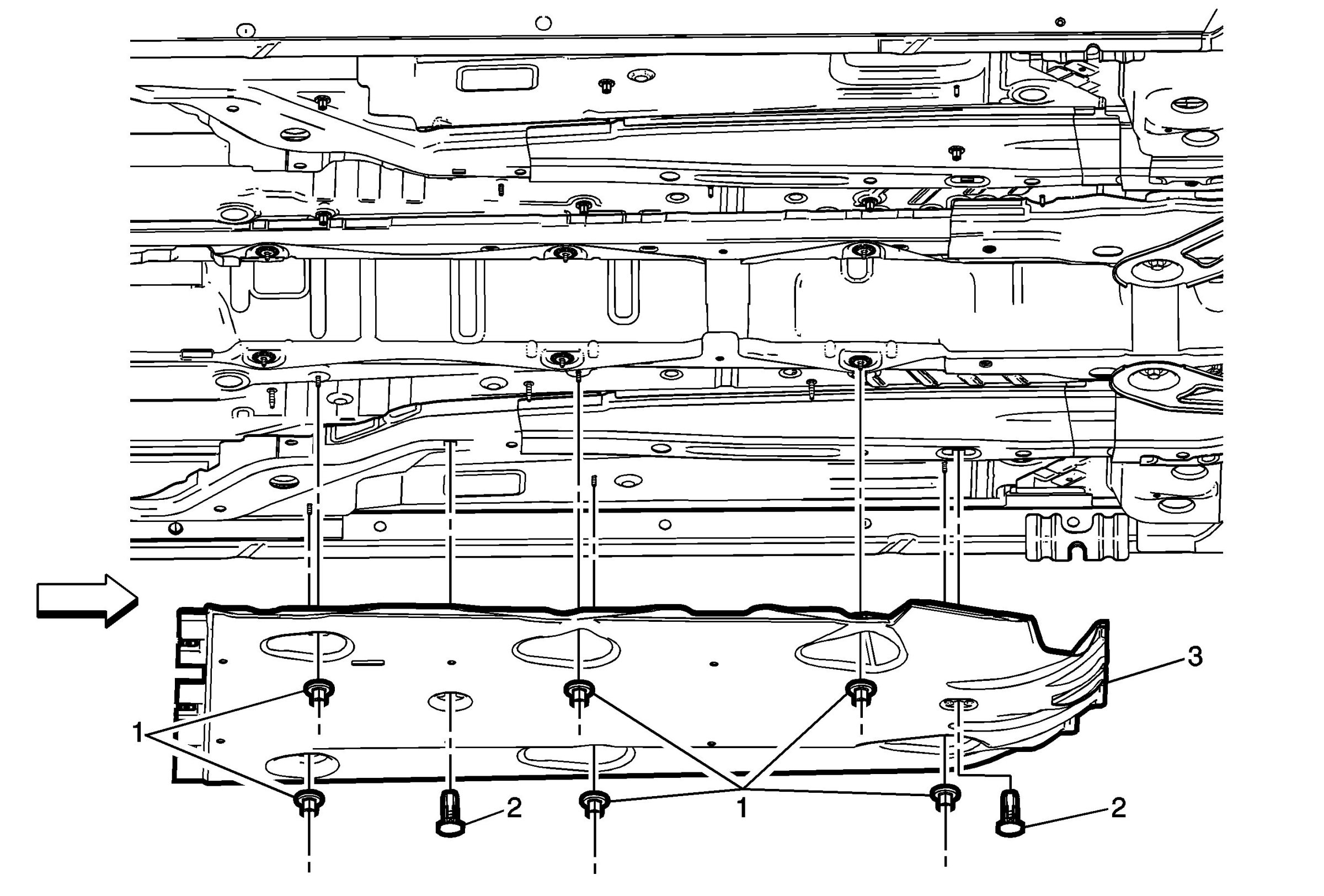

1Underbody Front Air Deflector Fastener (Qty: 6)
Caution:Refer to Fastener Caution .
Tighten 2.5 N �m (22 lb in)

2Underbody Left Front Air Deflector Fastener (Qty: 2)

3Underbody Left Front Air Deflector
