Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Seat Lumbar Sub System Replacement

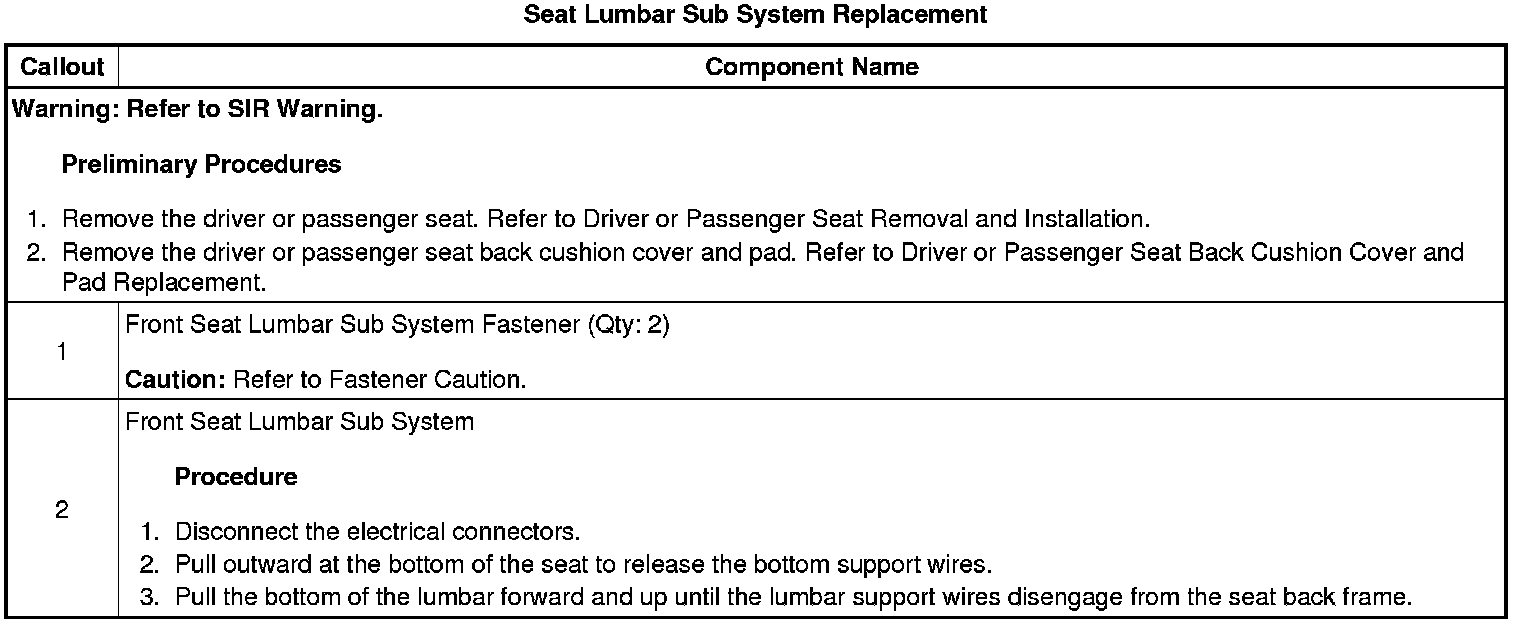

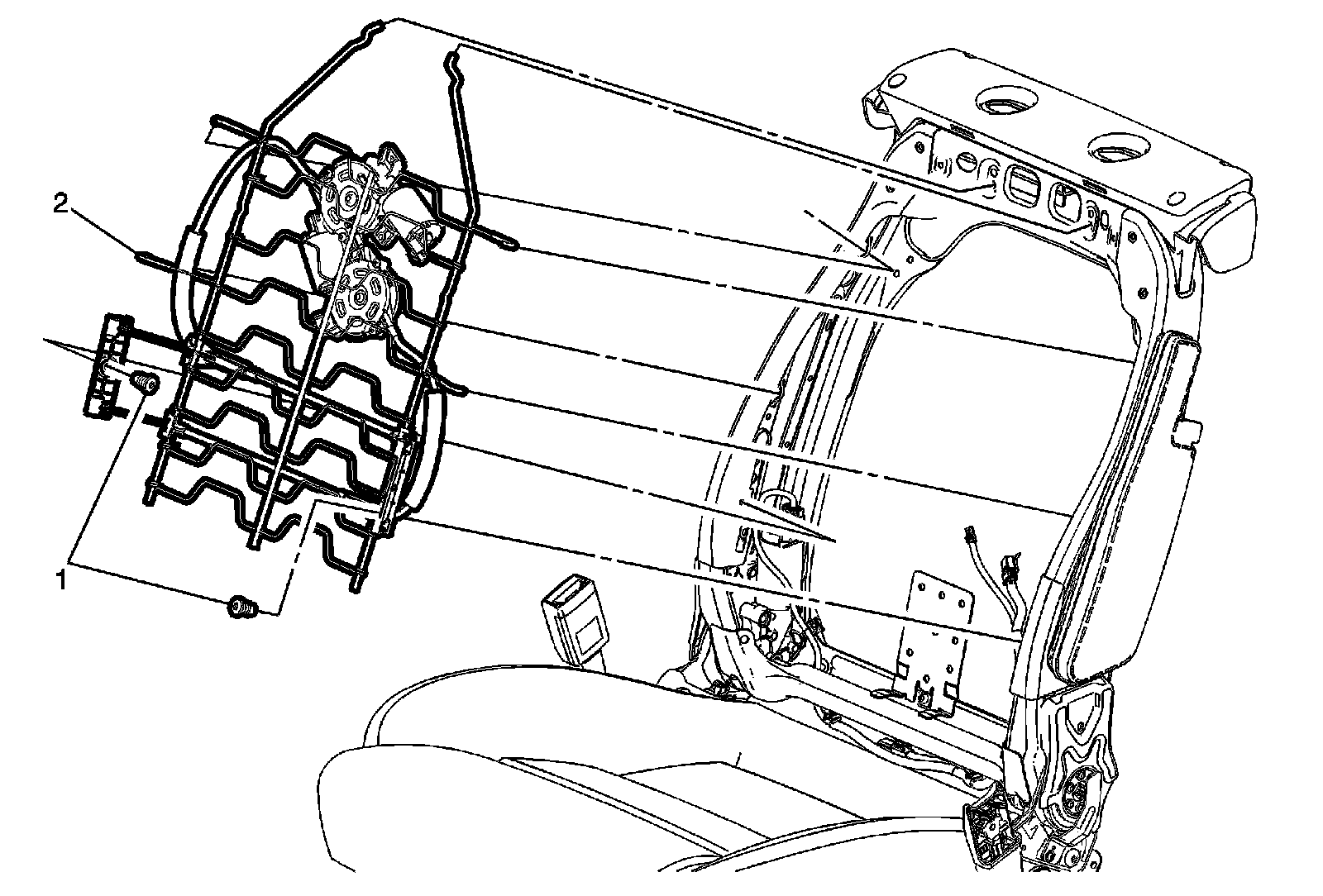

Seat Lumbar Sub System Replacement

Seat Lumbar Sub System Replacement
