Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Grille >> Service and Repair >> Radiator Lower Outer Grille Replacement (Base)

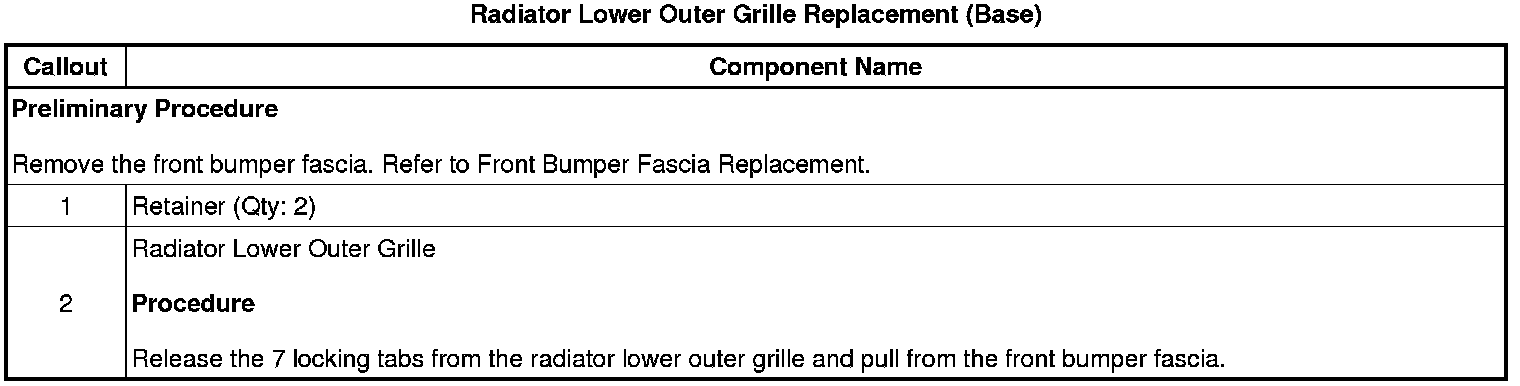

Radiator Lower Outer Grille Replacement (Base)




Radiator Lower Outer Grille Replacement (Base)
