Driver Door Components (3 of 6)

Door Component Views

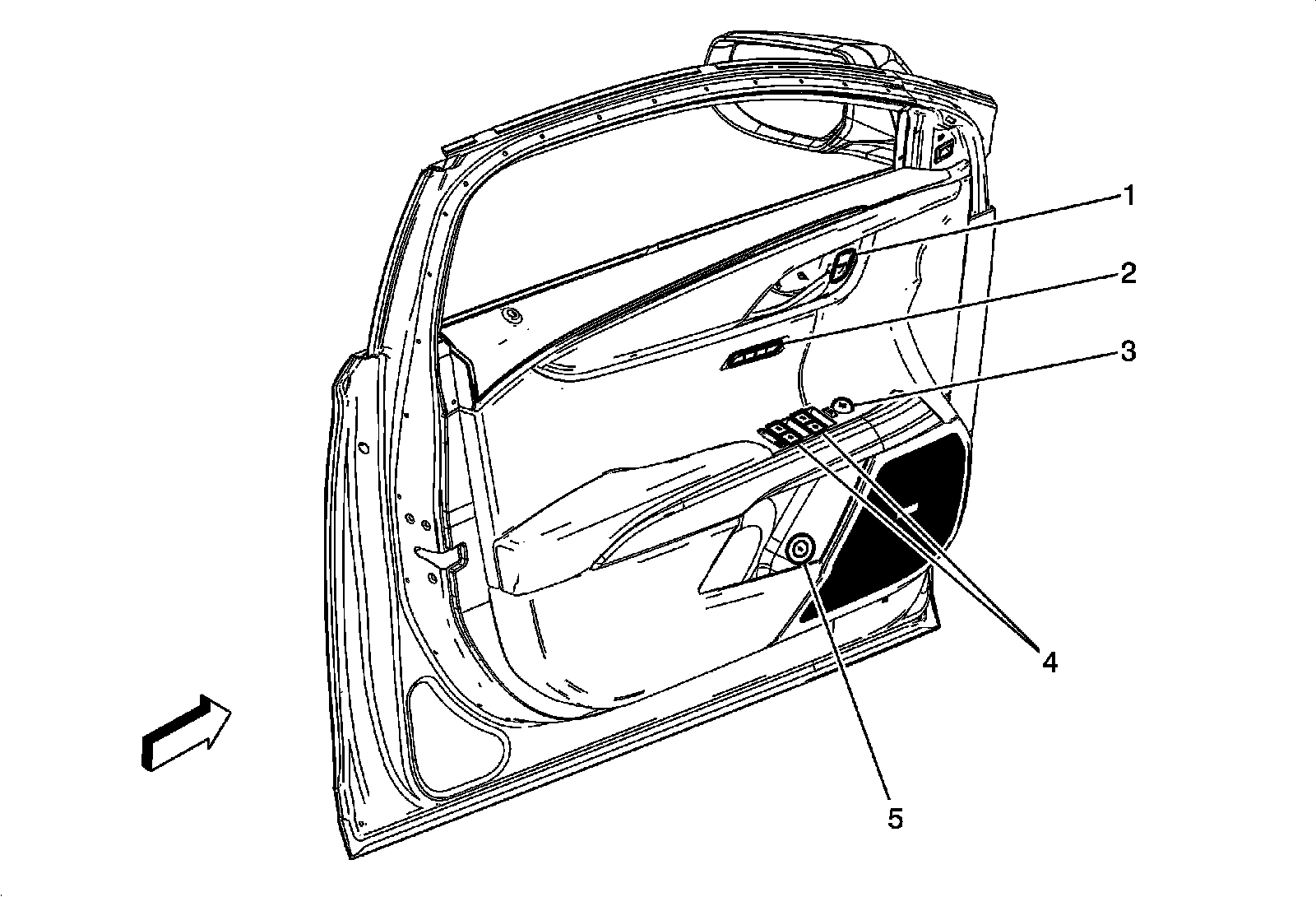

Driver Door Components (3 of 6)





1 - S13D Door Lock Switch - Driver

2 - S47D Seat Memory Switch - Driver (A45)

3 - S52 Outside Rearview Mirror Switch

4 - S79D Window Switch - Driver

5 - S58B Rear Compartment Lid Unlatch Switch - Interior
