Keyless Entry Antenna - Rear Fascia

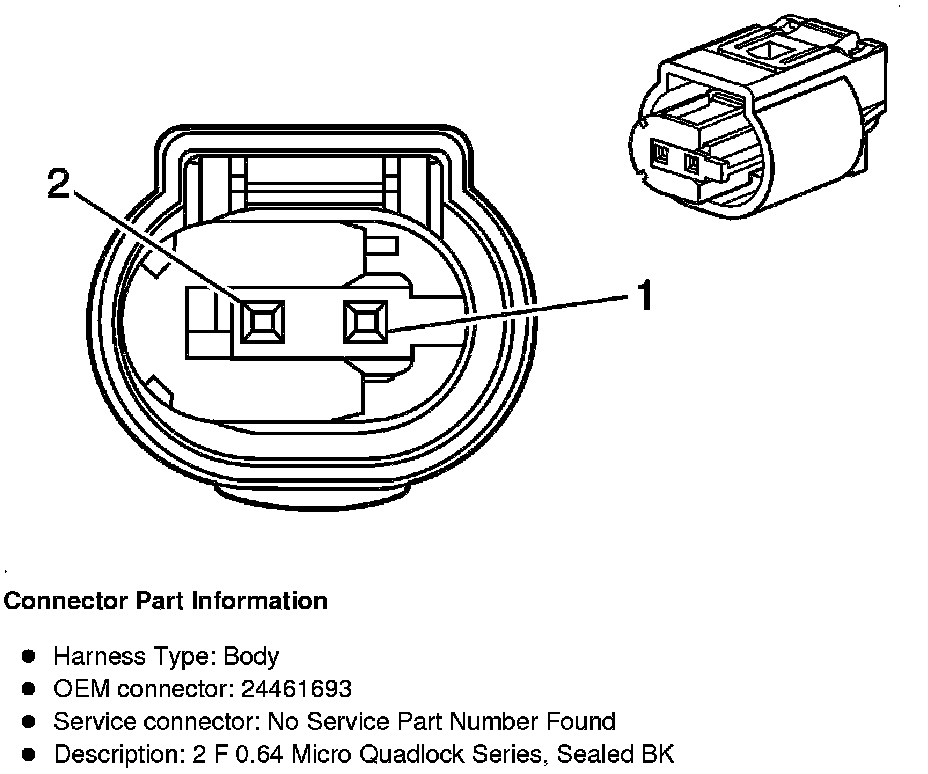

Component Connector End Views

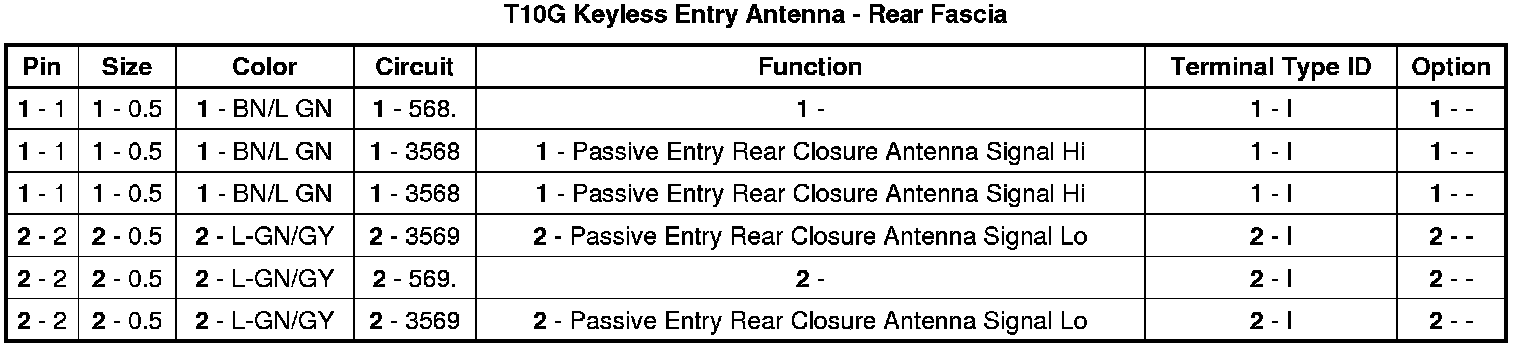

T10G Keyless Entry Antenna - Rear Fascia
