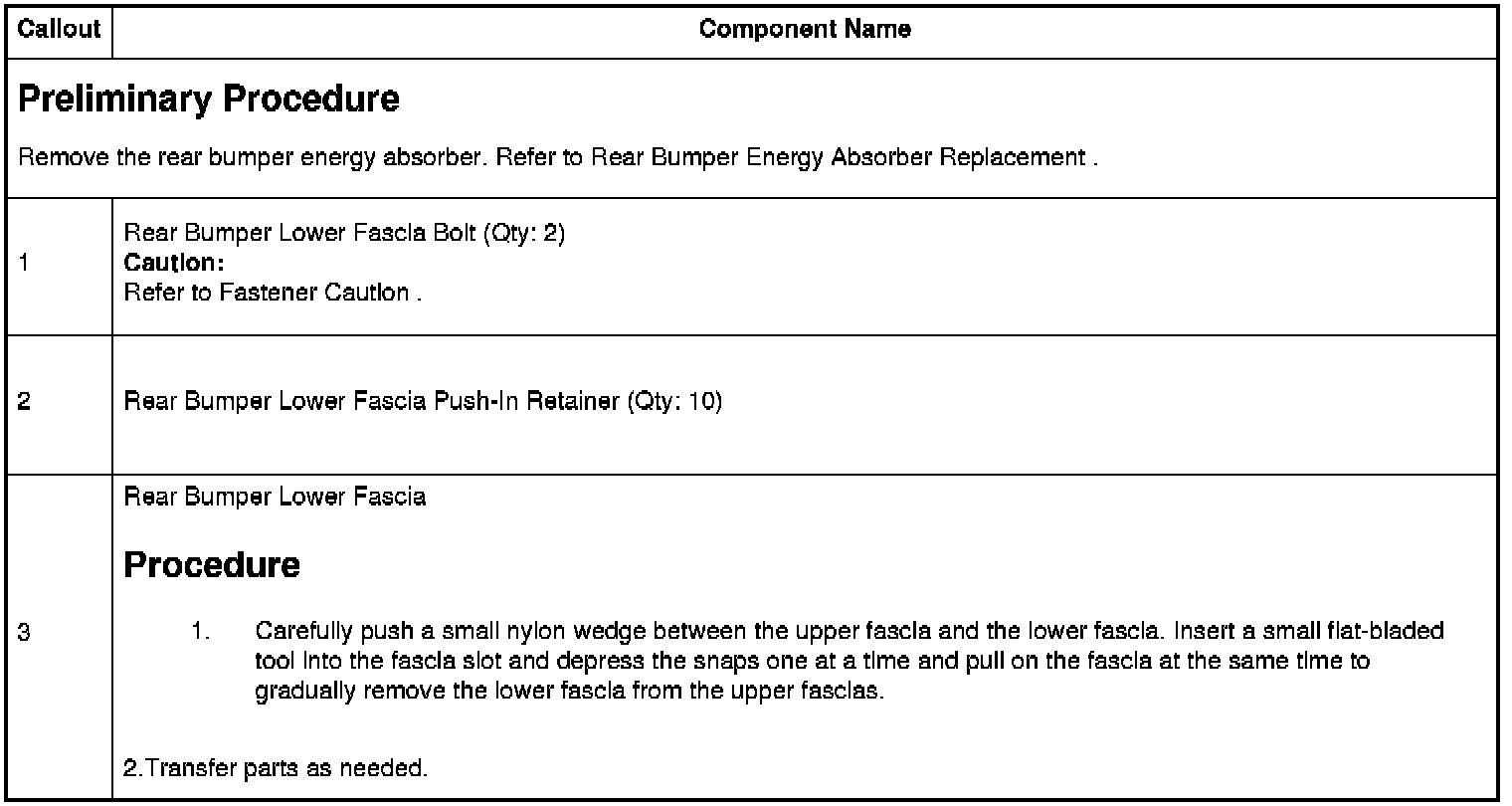

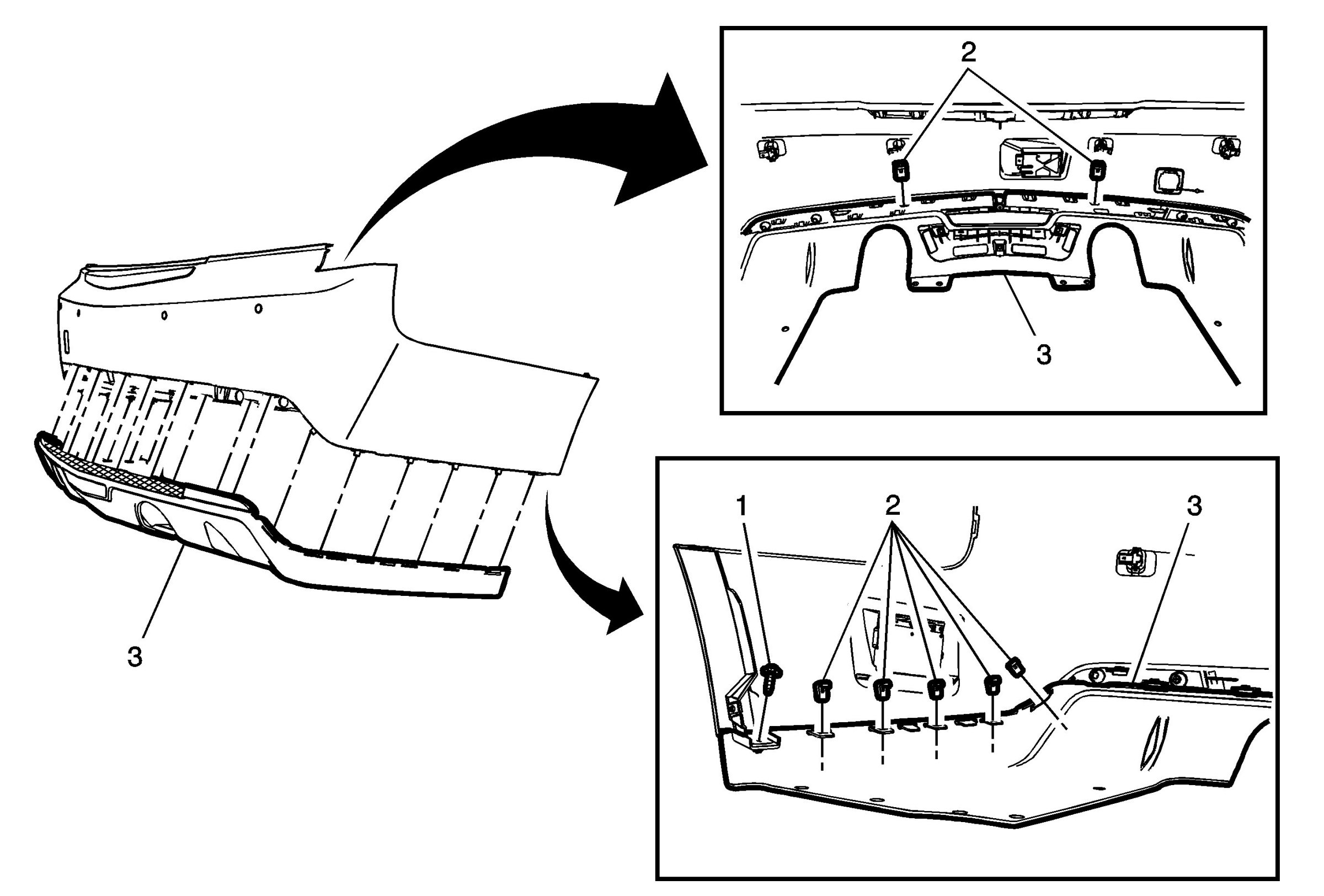

Rear Bumper Lower Fascia Replacement






Rear Bumper Lower Fascia Replacement











2.Transfer parts as needed.
