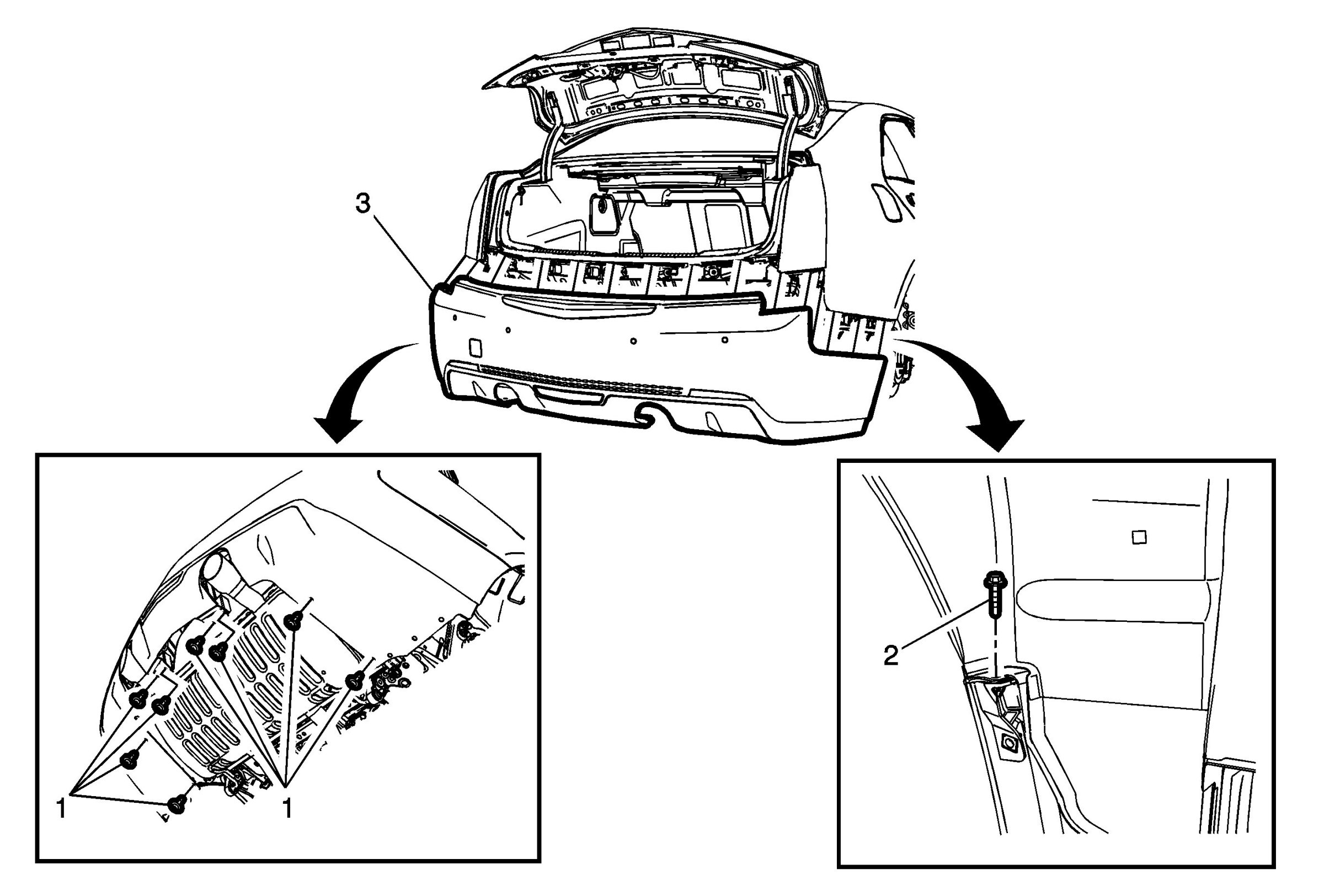

Rear Bumper Fascia Replacement

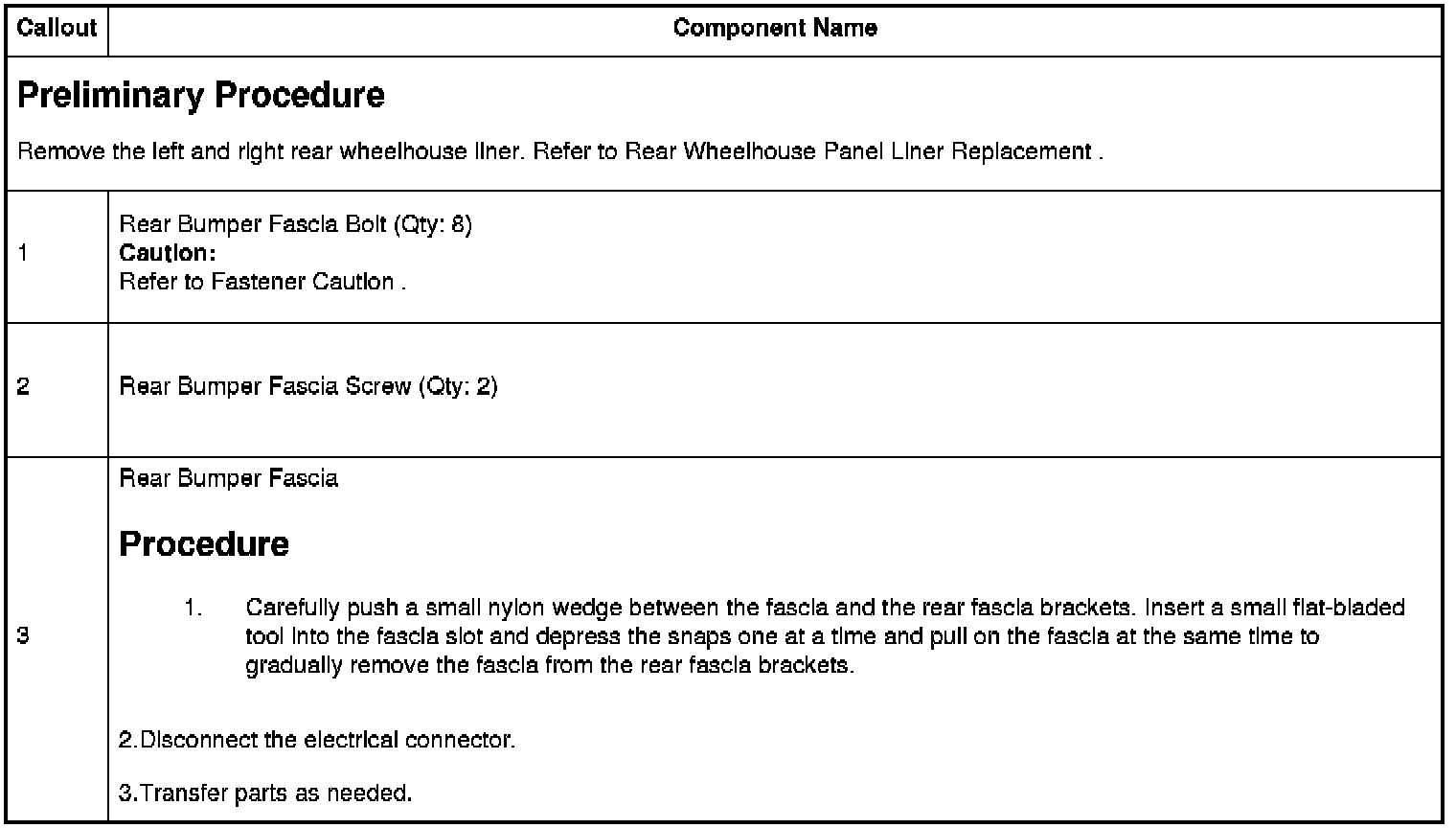

Rear Bumper Fascia Replacement











2.Disconnect the electrical connector.

3.Transfer parts as needed.
