Home >> Cadillac >> 2013 >> ATS AWD L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Splash Guard >> Service and Repair

Splash Guard: Service and Repair

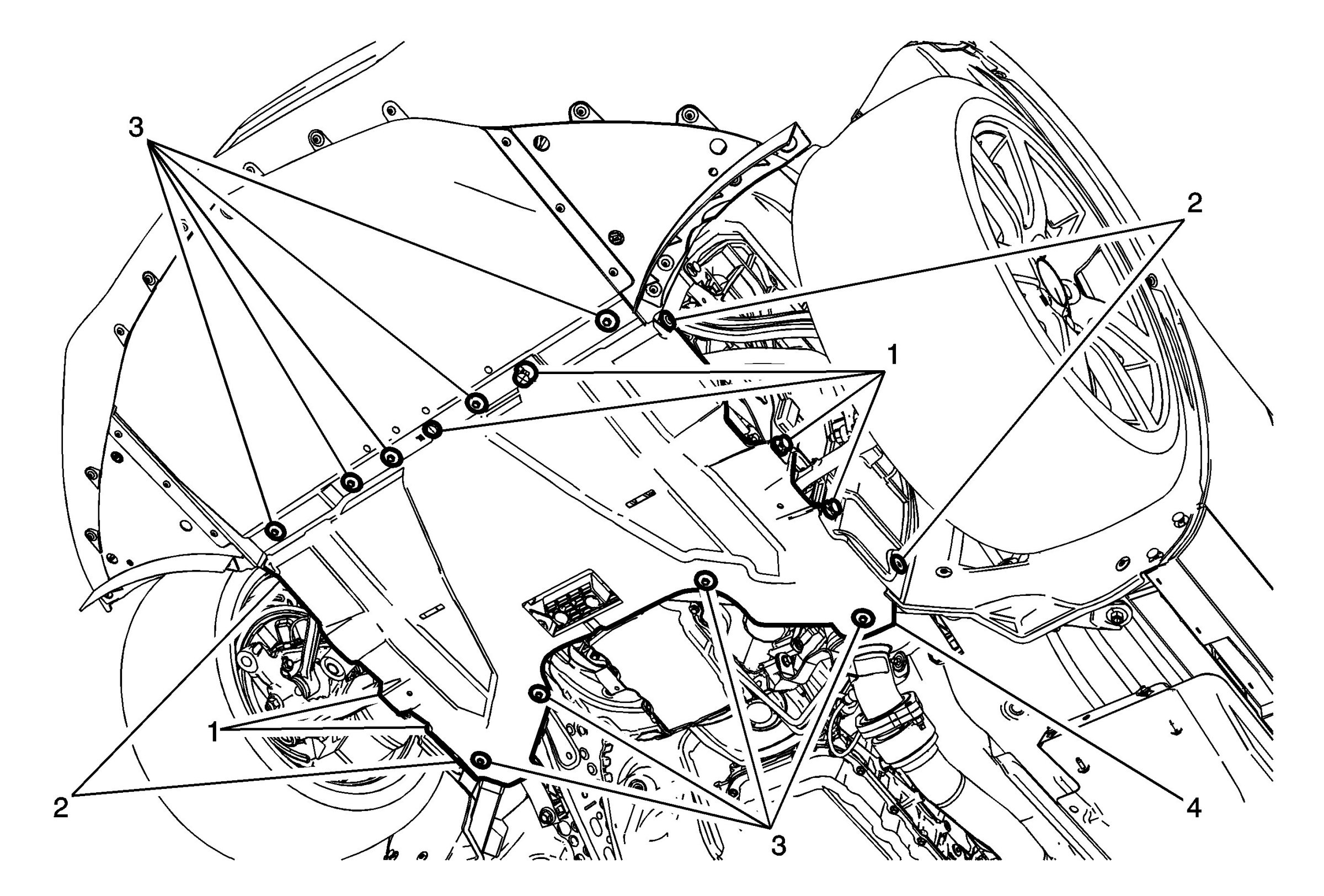

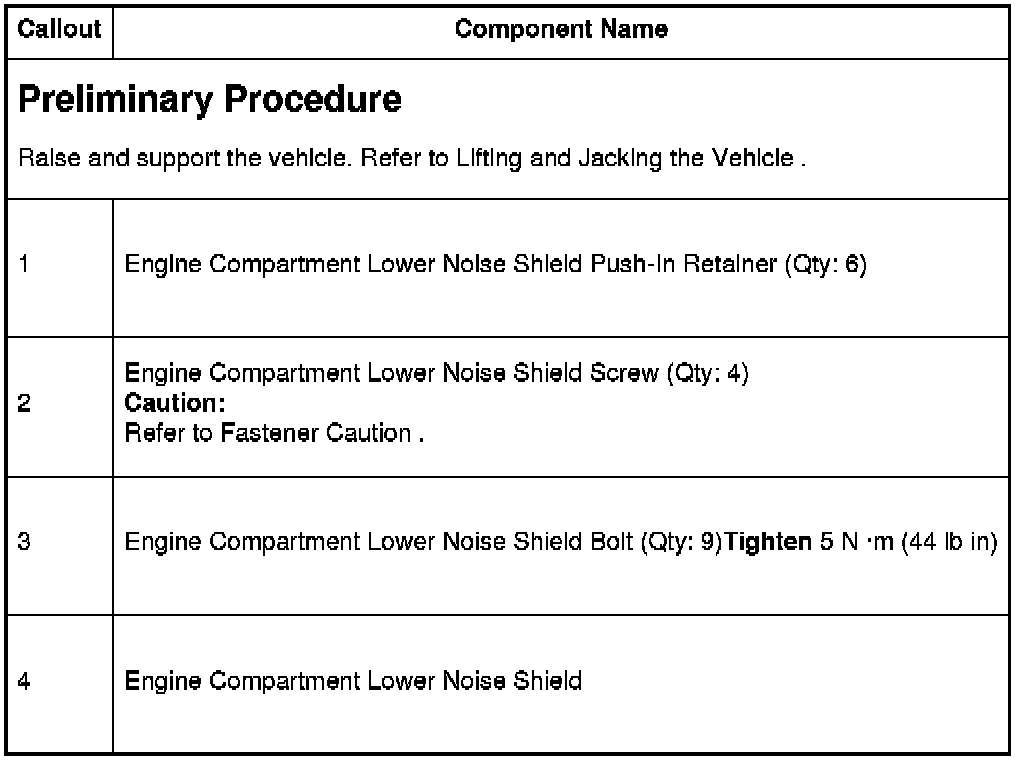

Engine Compartment Lower Noise Shield Replacement
