Home >> Cadillac >> 2013 >> ATS AWD L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Bumper >> Rear Bumper >> Rear Bumper Reinforcement >> Service and Repair >> Rear Bumper Energy Absorber Replacement

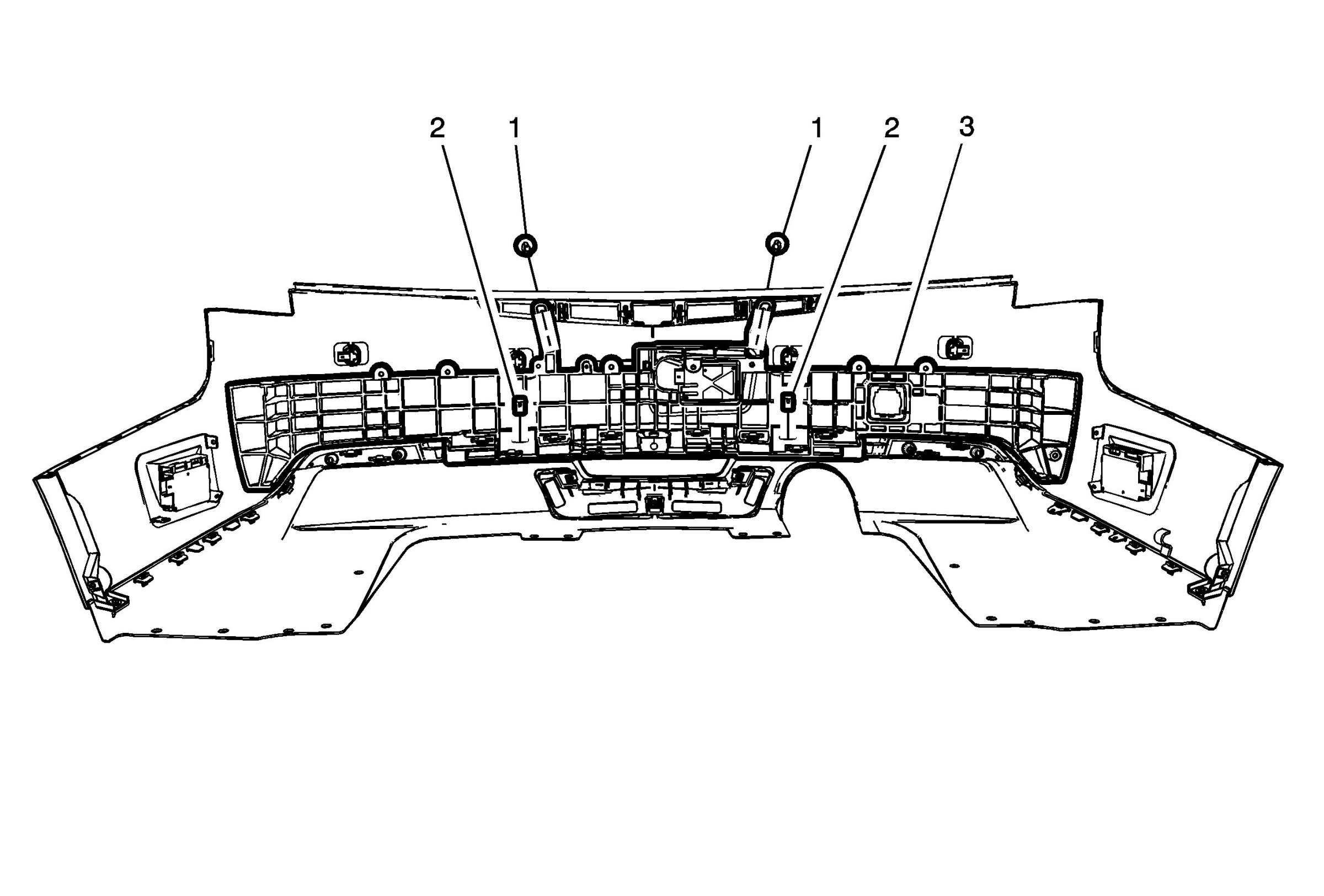

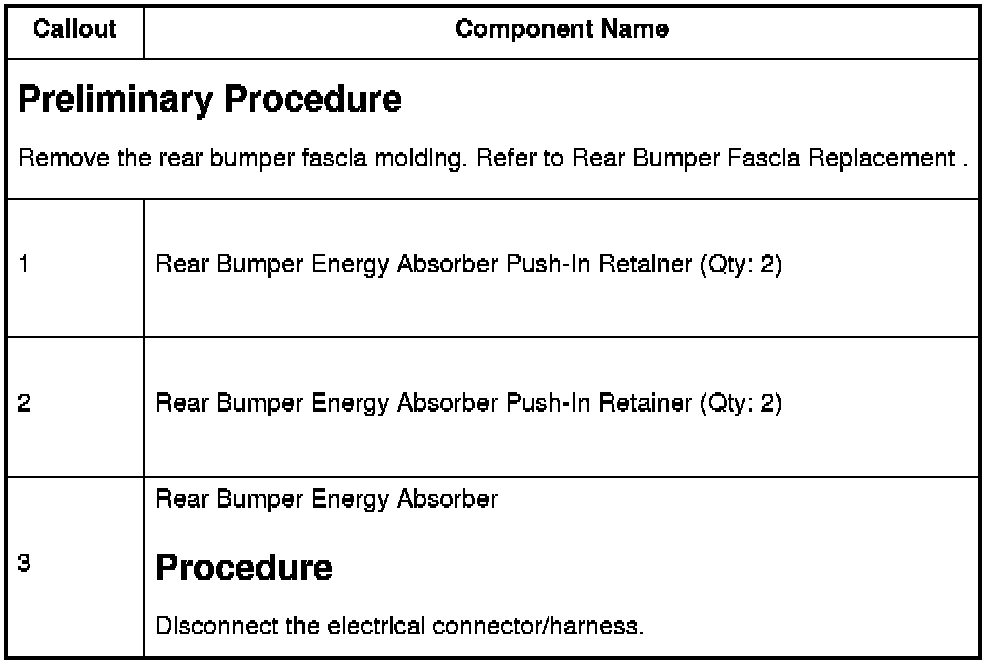

Rear Bumper Energy Absorber Replacement






Rear Bumper Energy Absorber Replacement
