Front Bumper Impact Bar Replacement

Front Bumper Impact Bar Replacement

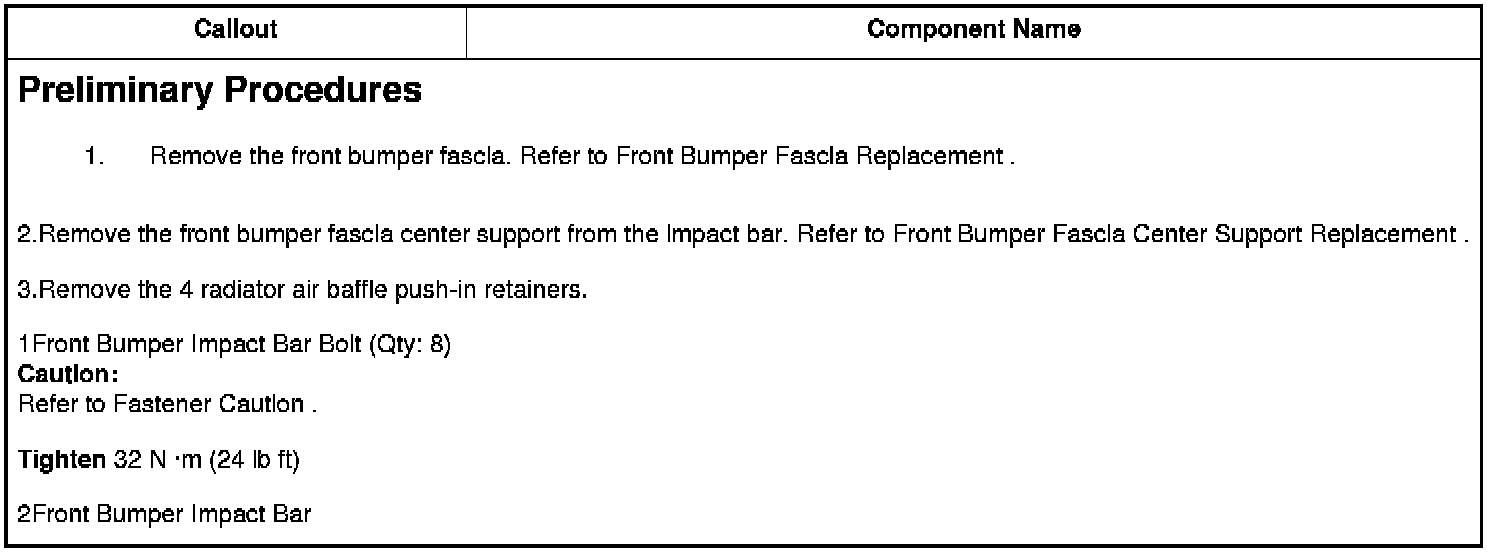

2.Remove the front bumper fascia center support from the impact bar. Refer to Front Bumper Fascia Center Support Replacement Front Bumper Fascia Center Support Replacement .

3.Remove the forward range radar module if equipped. Refer to Forward Range Radar Module Replacement

4.Remove the ambient air temperature sensor. Refer to Ambient Air Temperature Sensor Replacement .

5.Remove the 4 radiator air baffle push-in retainers.

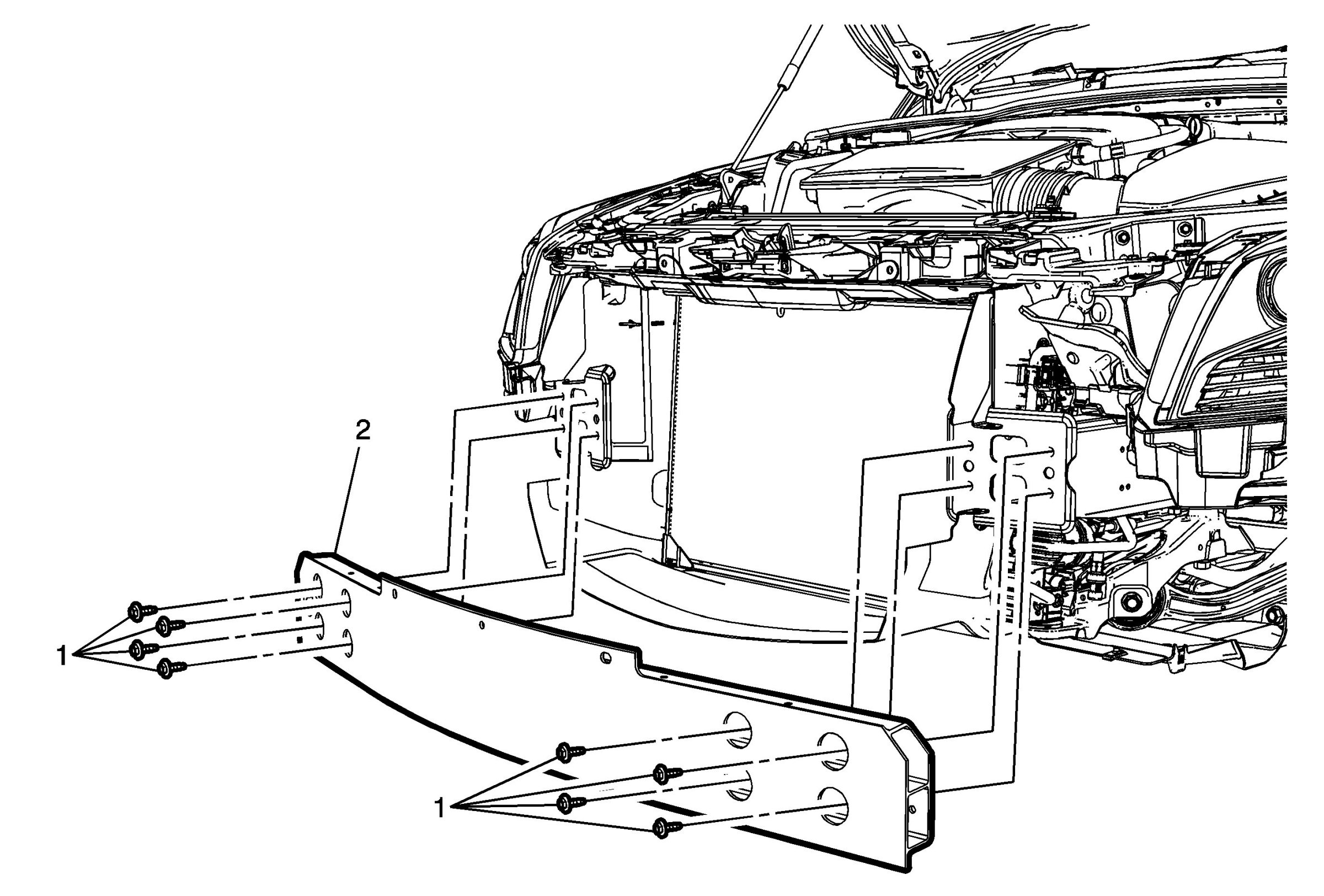

1Front Bumper Impact Bar Bolt (Qty: 8)
Caution:Refer to Fastener Caution .
Tighten 32 N �m (24 lb ft)

2Front Bumper Impact Bar


Procedure


Unclip and reposition the electrical harnesses.
