Home >> Cadillac >> 2013 >> ATS AWD L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Bumper >> Front Bumper >> Front Bumper Reinforcement >> Service and Repair >> Front Bumper Fascia Energy Upper Absorber Replacement

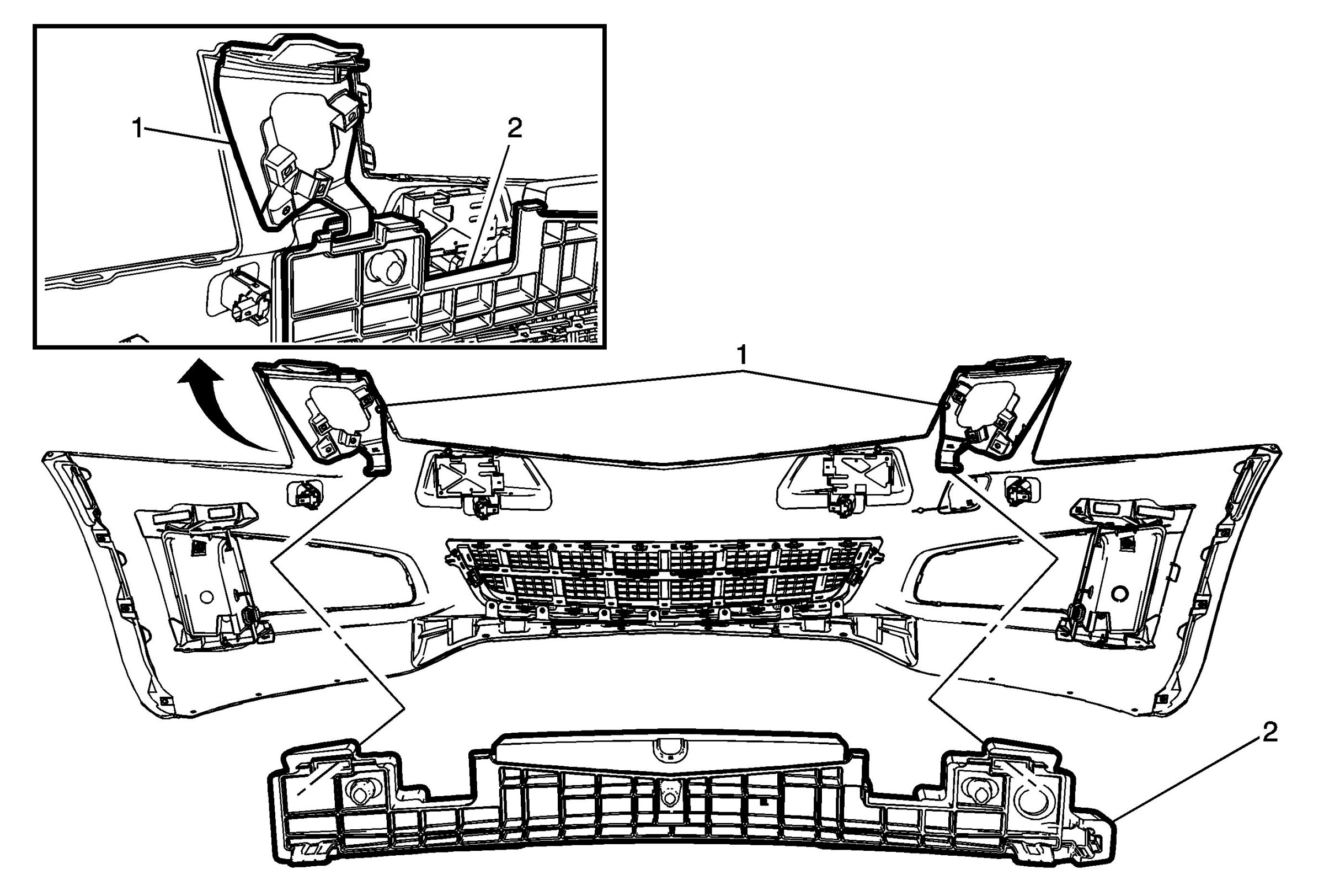

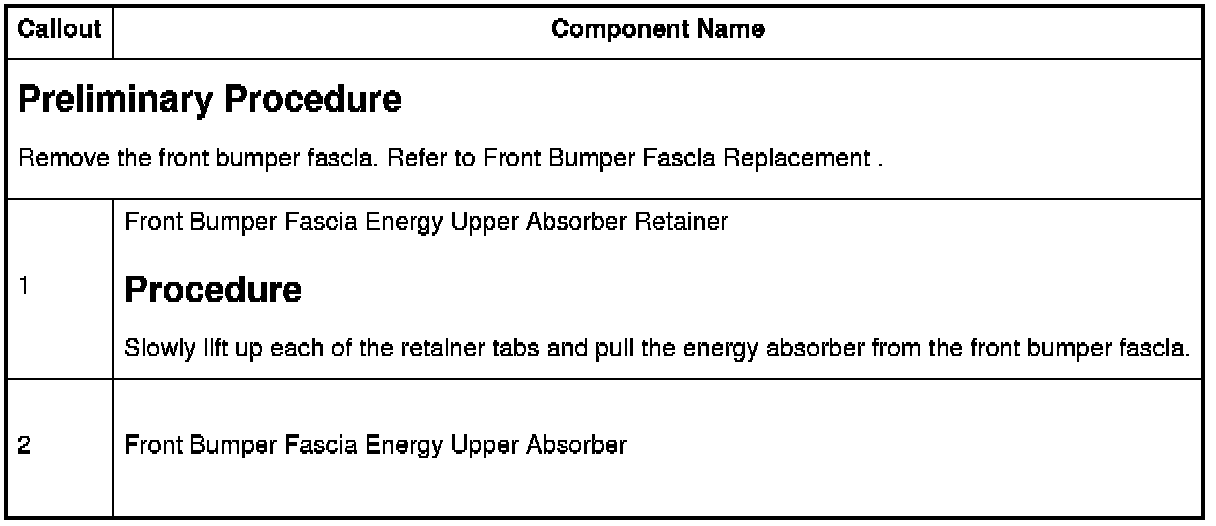

Front Bumper Fascia Energy Upper Absorber Replacement






Front Bumper Fascia Energy Upper Absorber Replacement
