Front Bumper Fascia Upper Support Replacement

Front Bumper Fascia Upper Support Replacement

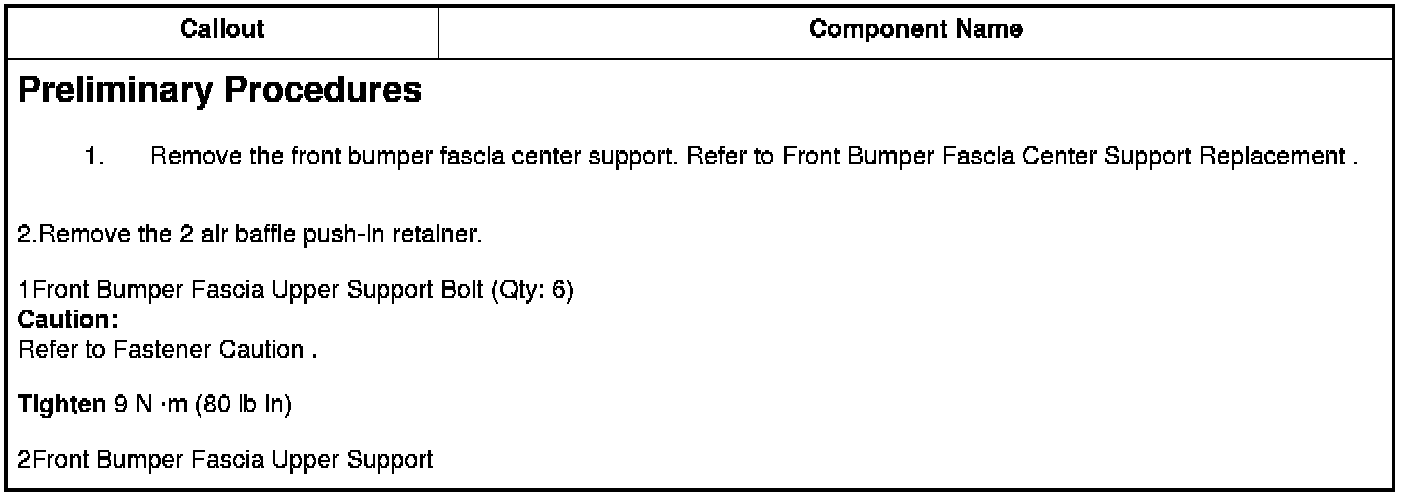

2.Remove the 2 air baffle push-in retainer.

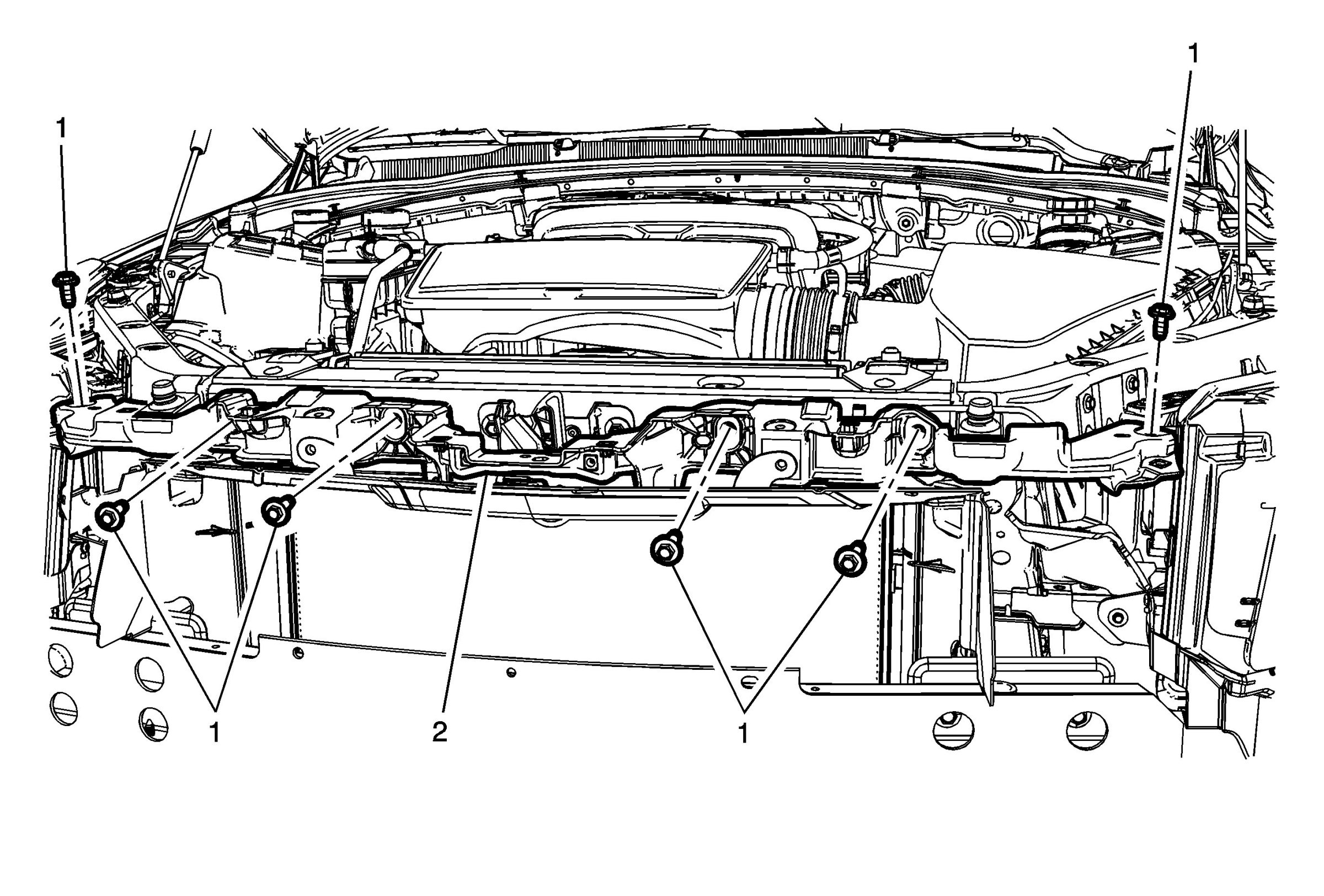

1Front Bumper Fascia Upper Support Bolt (Qty: 6)
Caution:Refer to Fastener Caution .
Tighten 9 N �m (80 lb in)

2Front Bumper Fascia Upper Support


Procedure


Unclip the hood release electrical connector and electrical harness from the front bumper fascia upper support.
