Front Bumper Fascia Replacement

Front Bumper Fascia Replacement

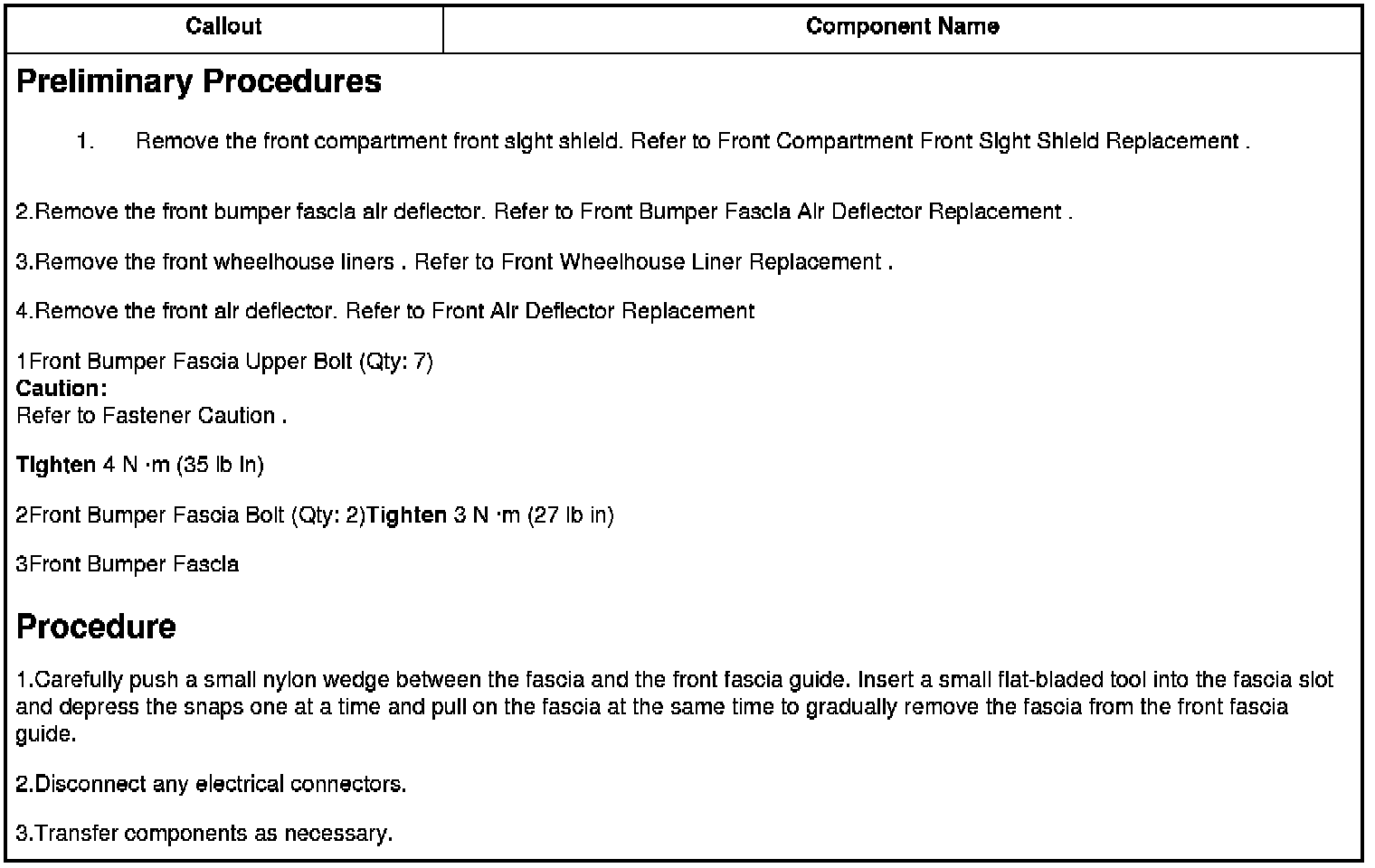

2.Remove the front bumper fascia air deflector. Refer to Front Bumper Fascia Air Deflector Replacement Front Bumper Fascia Air Deflector Replacement .

3.Remove the front wheelhouse liners. Refer to Front Wheelhouse Liner Replacement Front Wheelhouse Liner Replacement .

4.Remove the front air deflector. Refer to Front Air Deflector Replacement Front Air Deflector Replacement

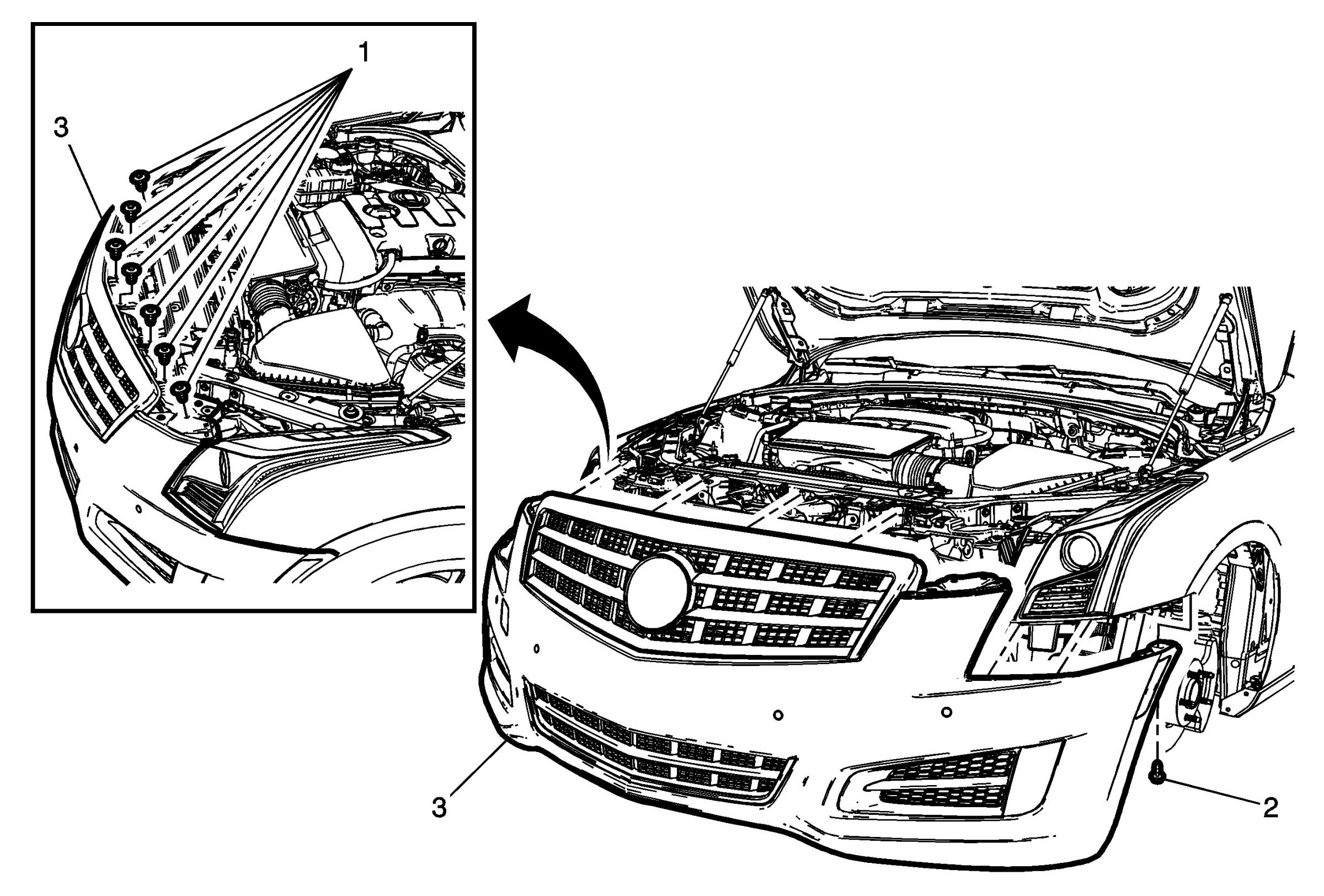

1Front Bumper Fascia Upper Bolt (Qty: 7)
Caution:Refer to Fastener Caution .
Tighten 4 N �m (35 lb in)

2Front Bumper Fascia Bolt (Qty: 2)Tighten 3 N �m (27 lb in)

3Front Bumper Fascia

Procedure

1.Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide.

2.Disconnect any electrical connectors.

3.Transfer components as necessary.
