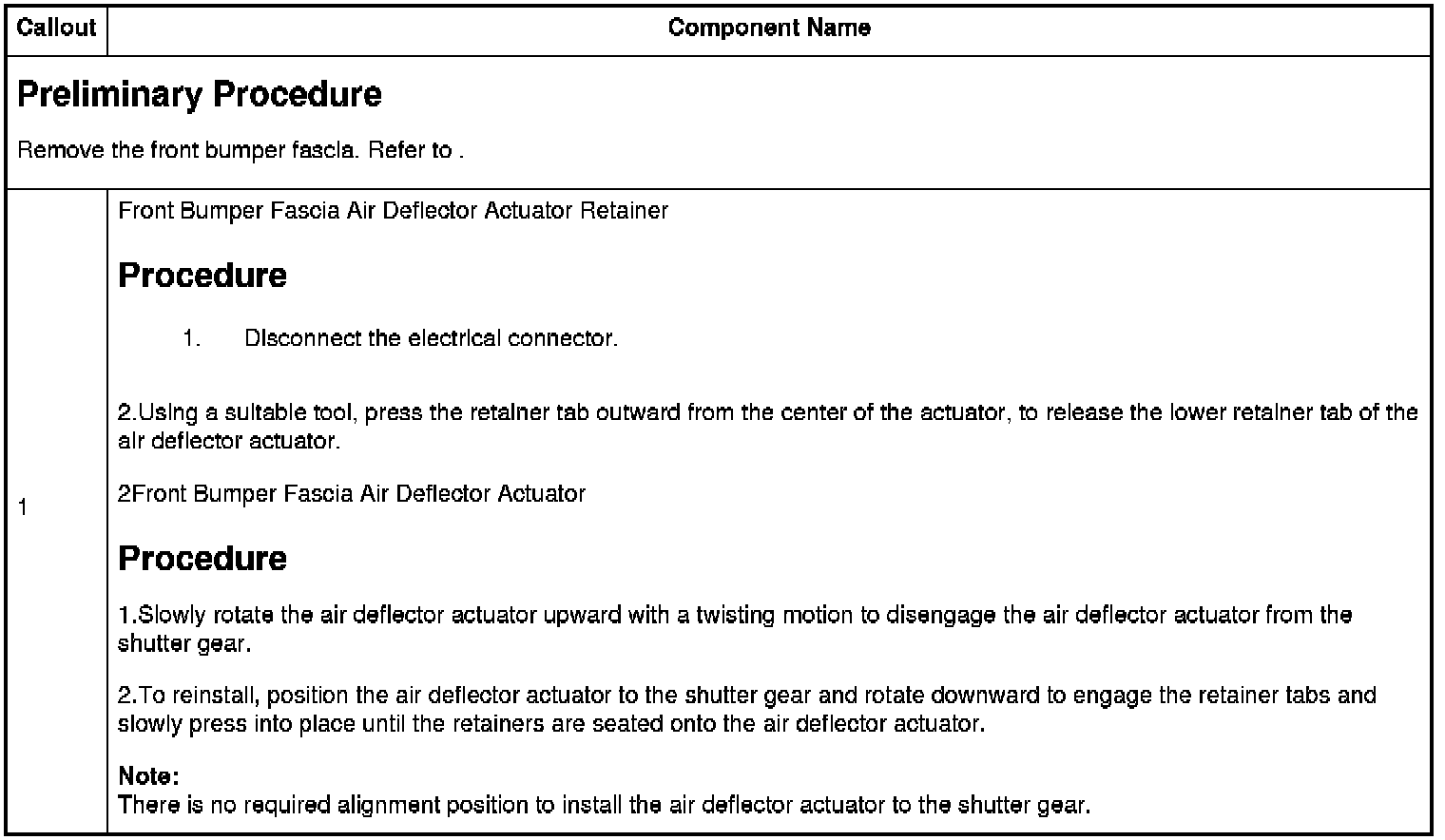

Front Bumper Fascia Air Deflector Actuator Replacement

Front Bumper Fascia Air Deflector Actuator Replacement











2.Using a suitable tool, press the retainer tab outward from the center of the actuator, to release the lower retainer tab of the air deflector actuator.

2Front Bumper Fascia Air Deflector Actuator

Procedure

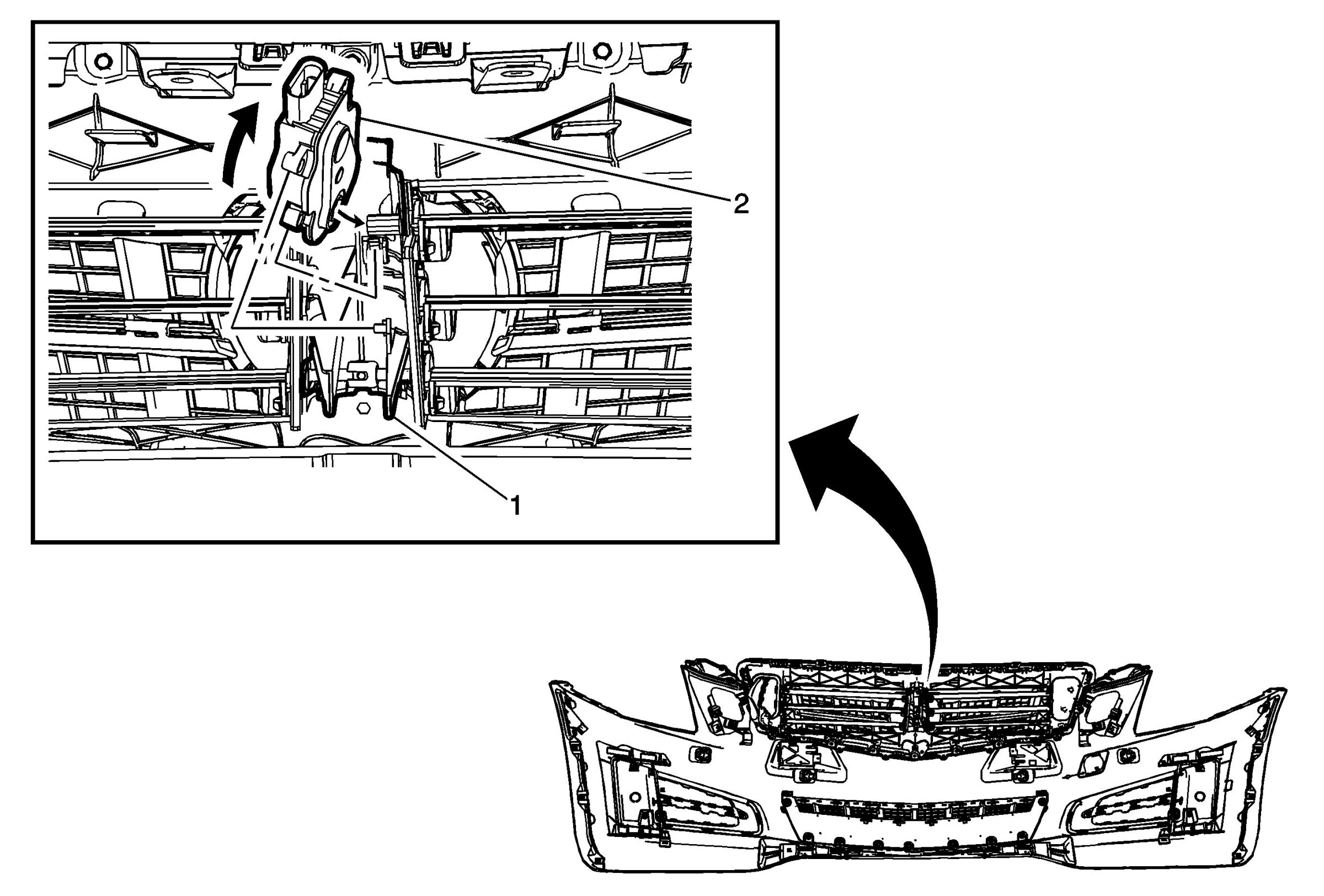

1.Slowly rotate the air deflector actuator upward with a twisting motion to disengage the air deflector actuator from the shutter gear.

2.To reinstall, position the air deflector actuator to the shutter gear and rotate downward to engage the retainer tabs and slowly press into place until the retainers are seated onto the air deflector actuator.

Note:There is no required alignment position to install the air deflector actuator to the shutter gear.
