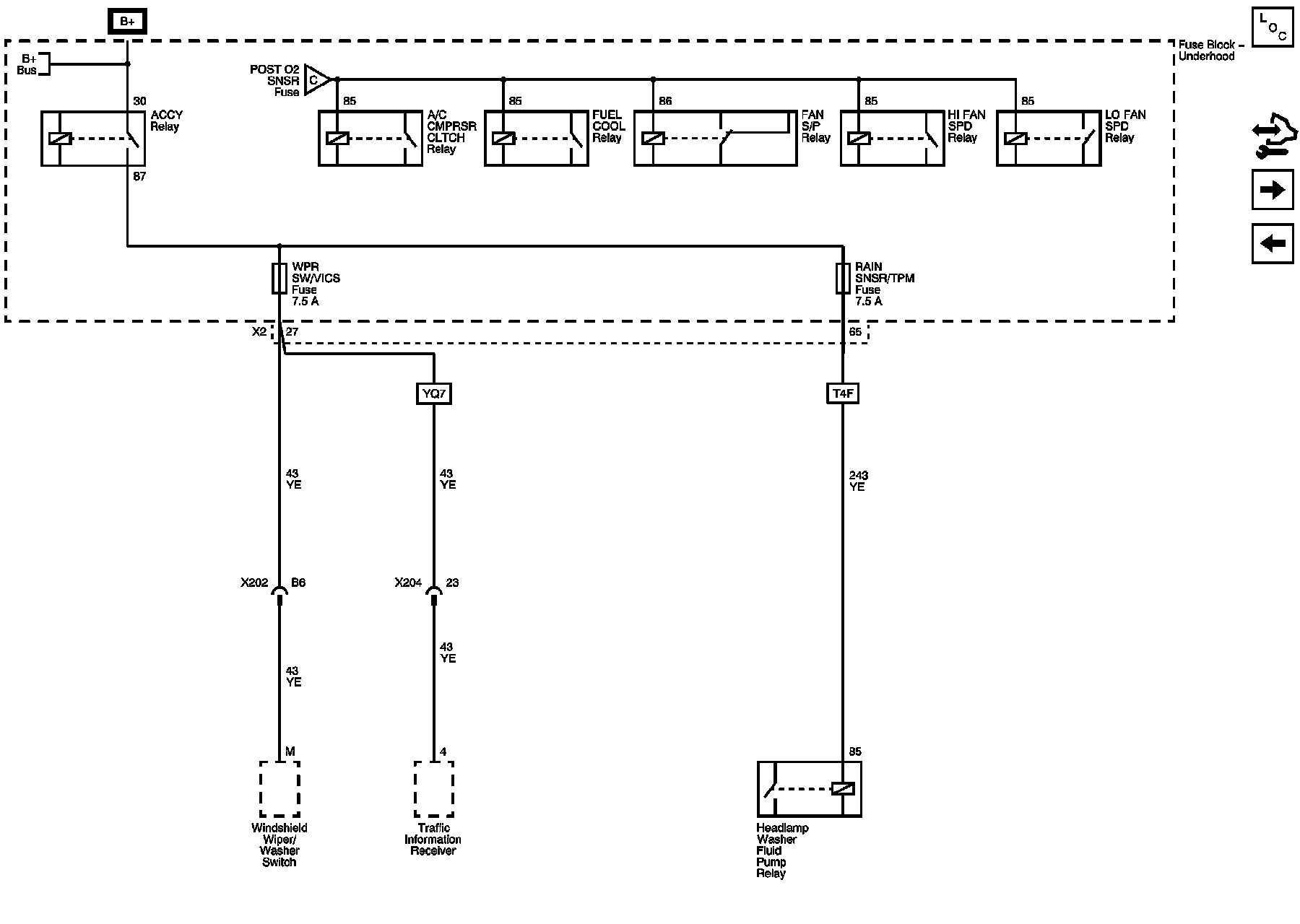

Power Distribution Schematic 9




Power Distribution Schematics

RAIN SNSR/TPM and WPR SW/VICS Fuses
