Power Distribution Schematic 18
Power Distribution Schematic 18
Power Distribution Schematics

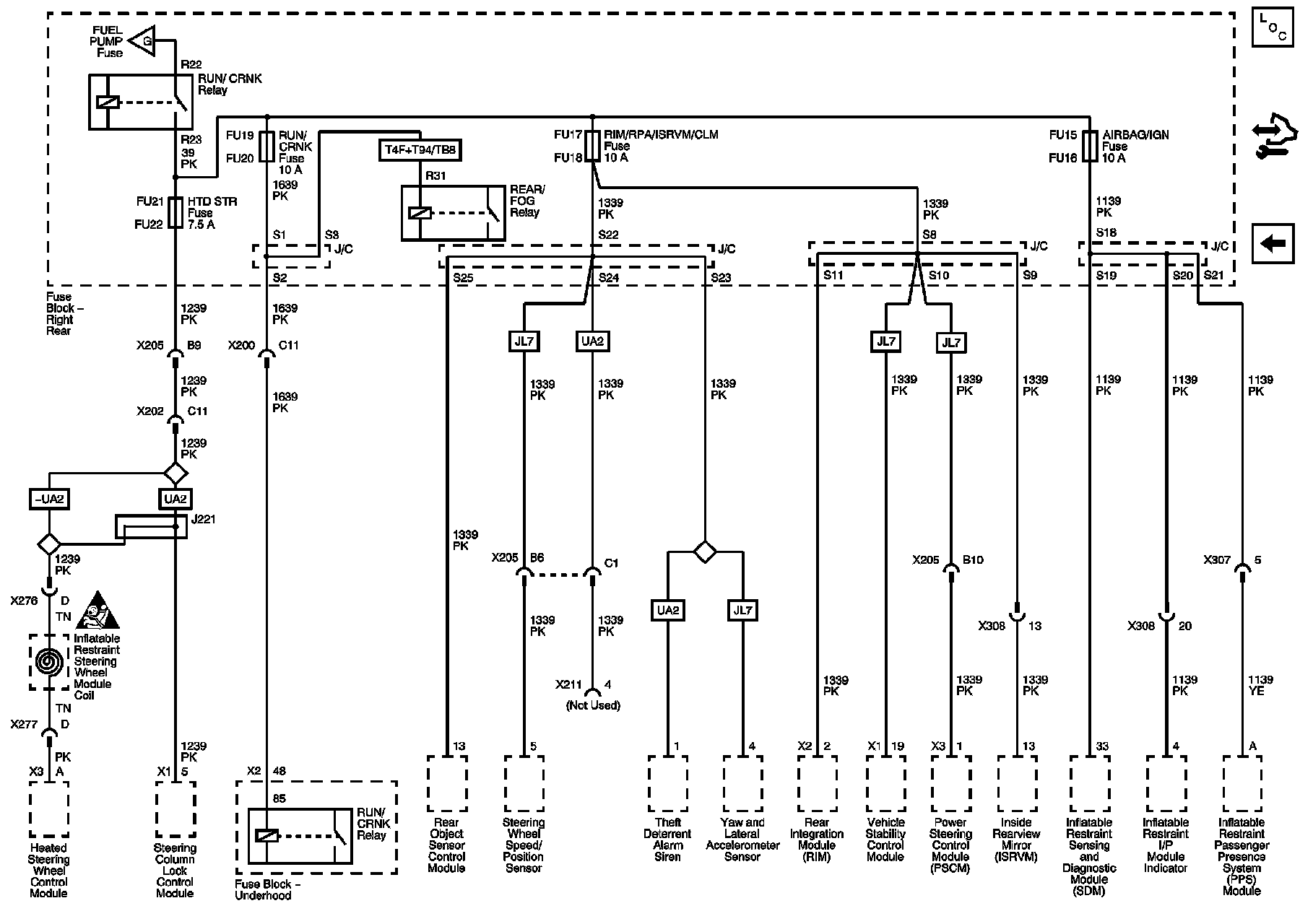

AIRBAG/IGN, HTD STR, RIM/RPA/ISRVM/CLM, and RUN/CRNK Fuses
