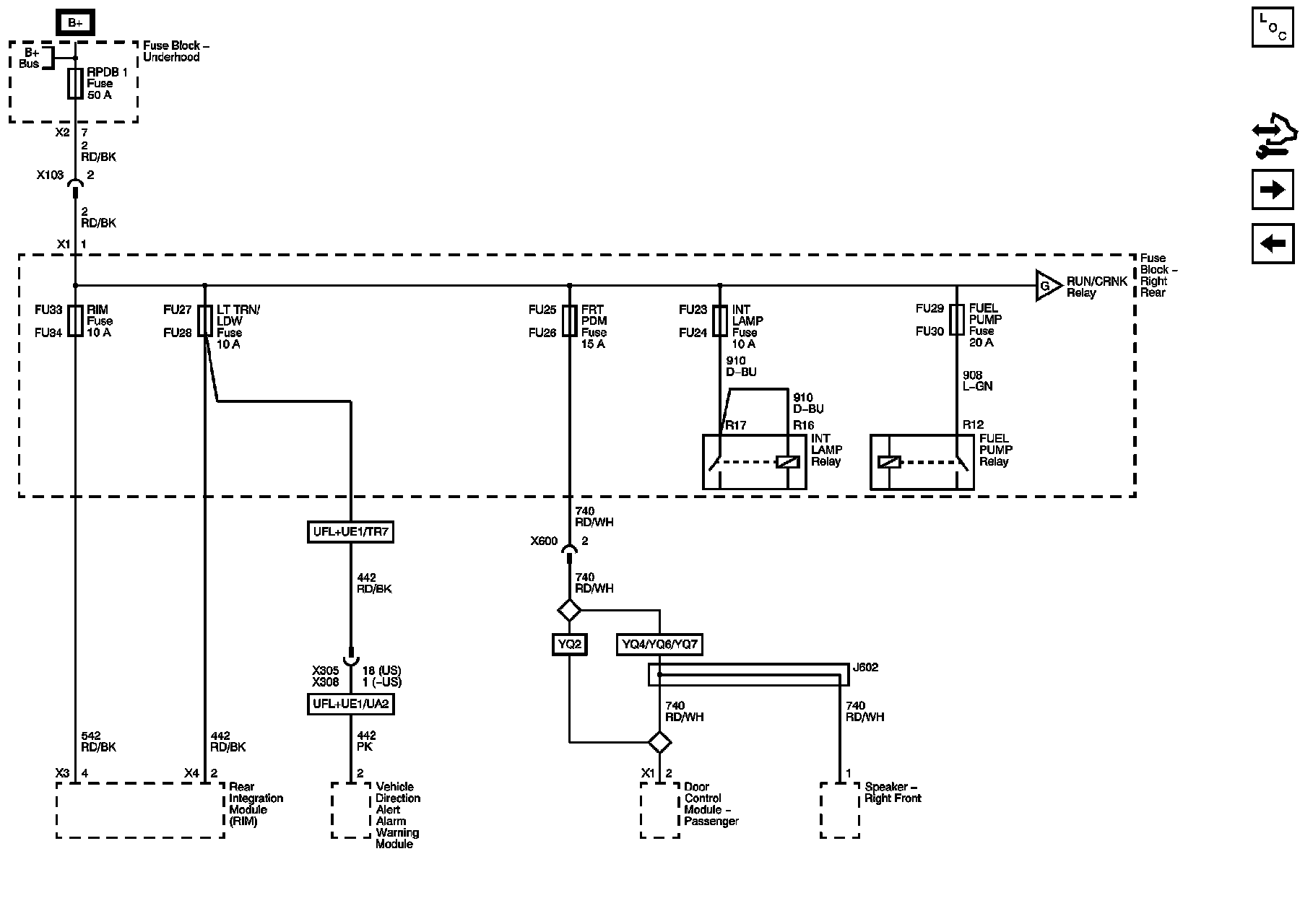

Power Distribution Schematic 17
Power Distribution Schematic 17
Power Distribution Schematics
FRT PDM, FUEL PUMP, INT LAMP, LT TRN/LDW, and RIM Fuses
