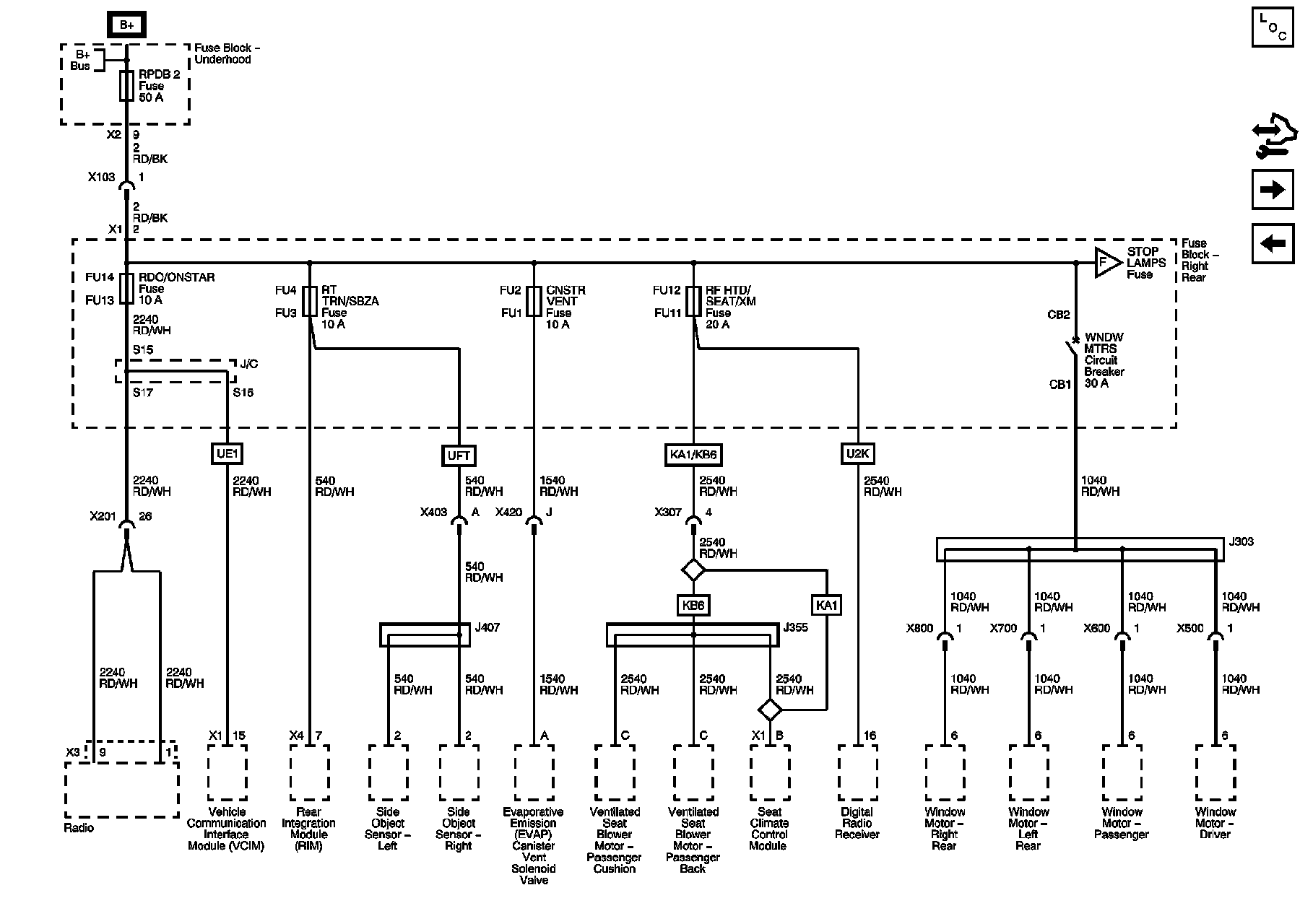

Power Distribution Schematic 15
Power Distribution Schematic 15
Power Distribution Schematics
CNSTR VENT, RDO/ONSTAR, RF HTD/SEAT/XM, RT TRN/SBZA Fuses, and WNDW MTRS Circuit Breaker
