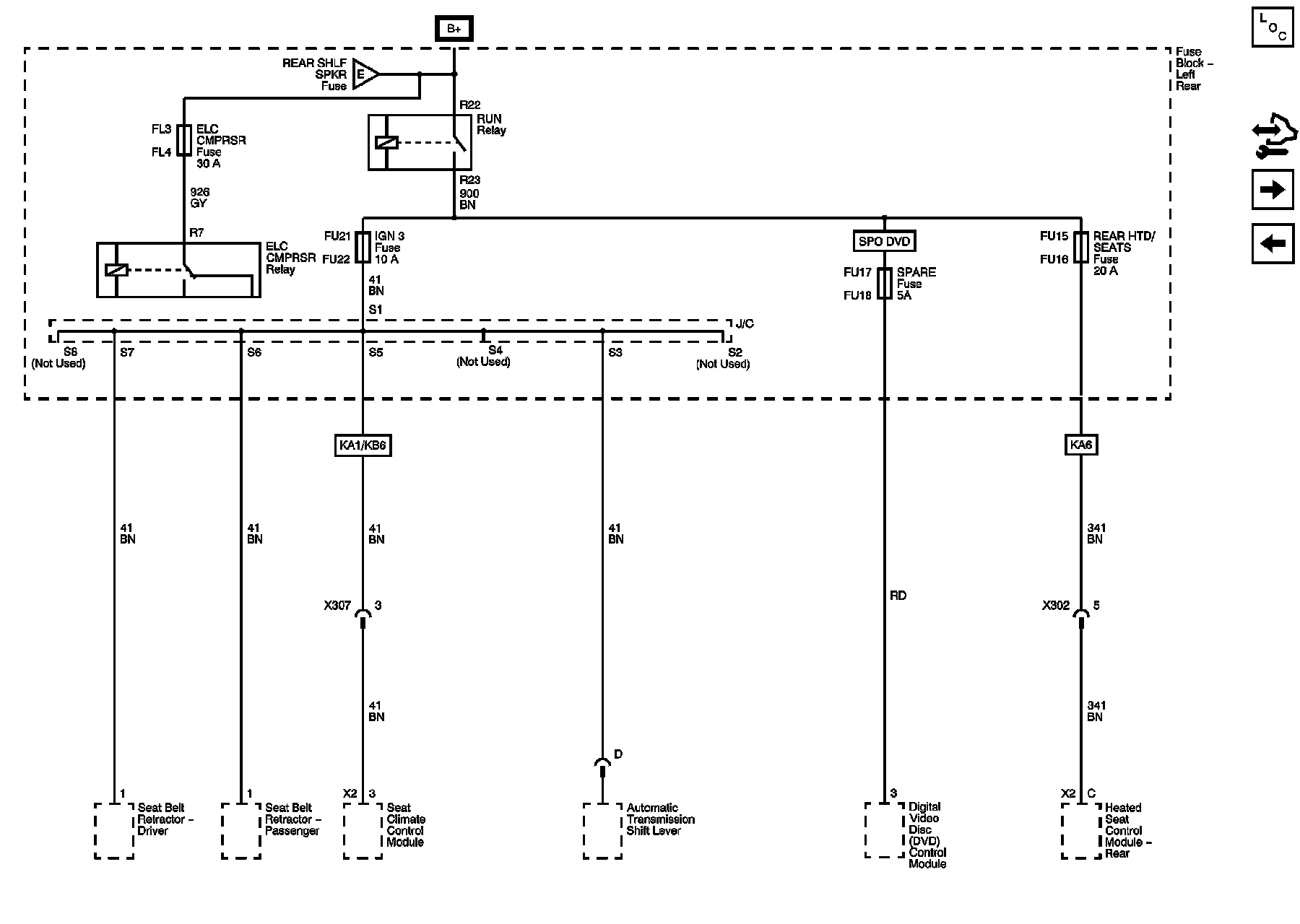

Power Distribution Schematic 14




Power Distribution Schematics

ELC CMPRSR, IGN 3, and REAR HTD/SEATS Fuses
