Power Distribution Schematic 11
Power Distribution Schematic 11
Power Distribution Schematics

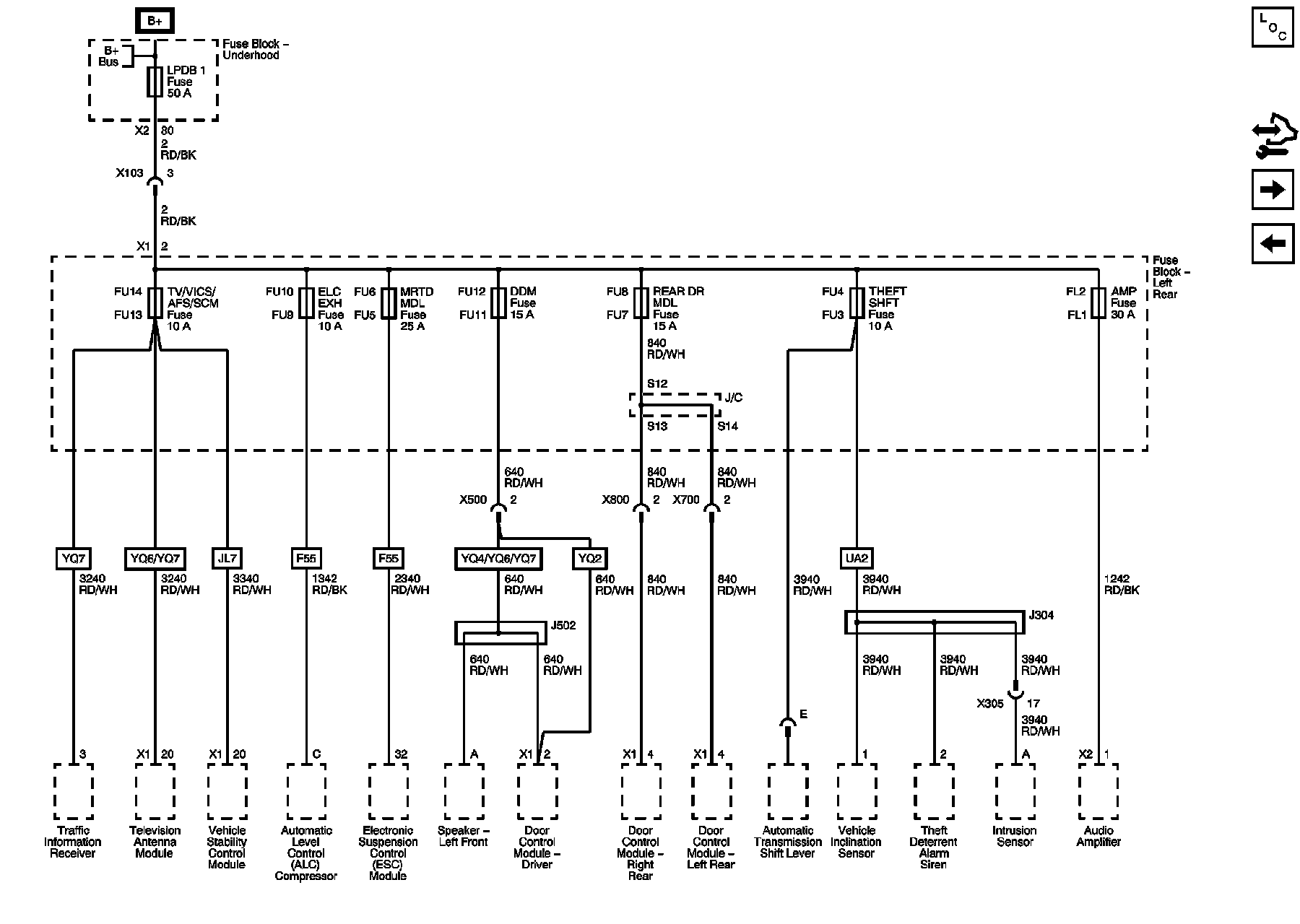

AMP, DDM, ELC EXH, MRTD MDL, REAR DR MDL, THEFT SHFT, and TV/VICS/AFS/SCM Fuses
