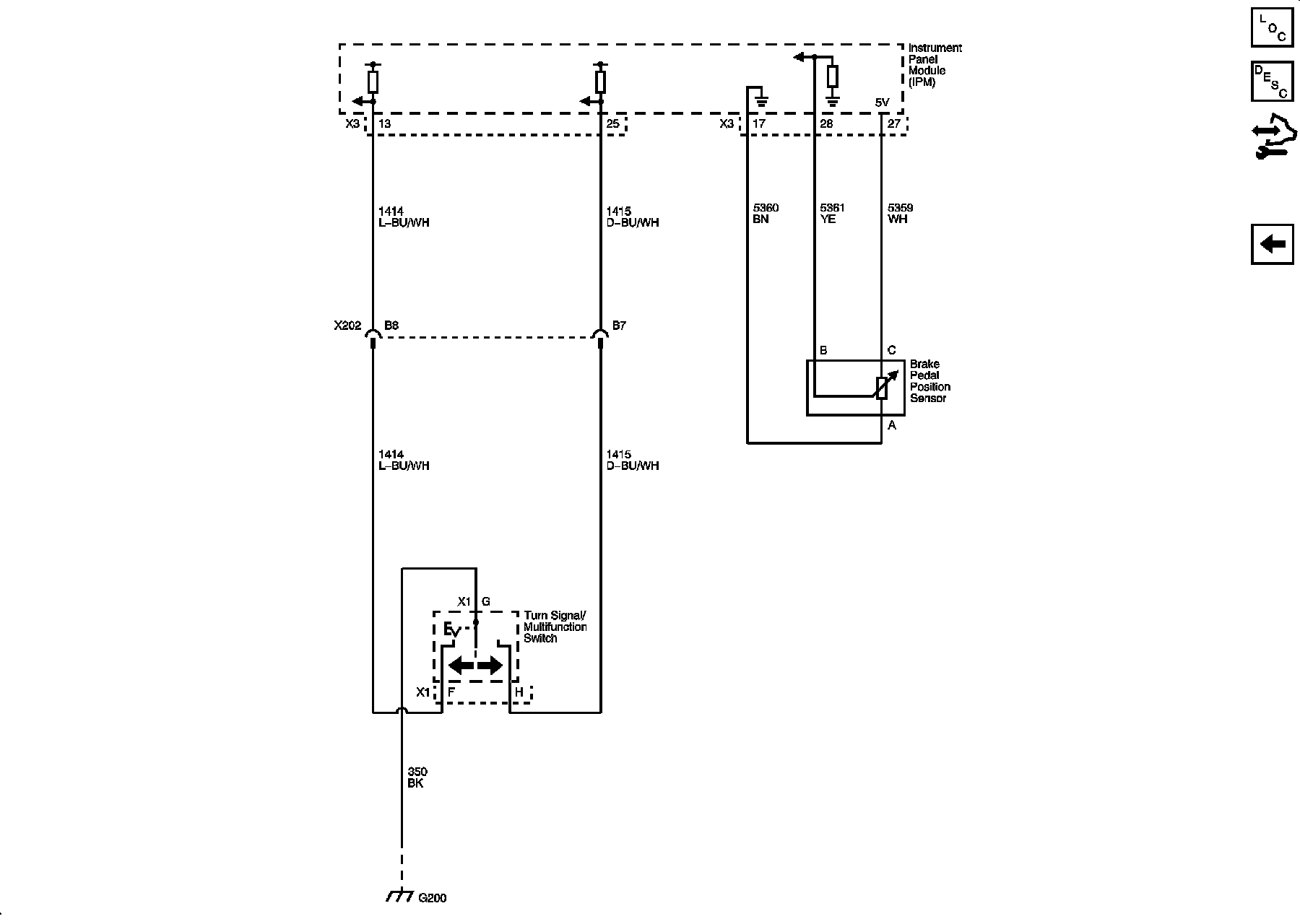

Exterior Lights Schematic 9




Exterior Lights Schematics

Front Turn Signal Switch Signals, Brake Pedal Position Sensor
