Home >> Cadillac >> 2011 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lights Schematics >> Exterior Lights Schematic 5

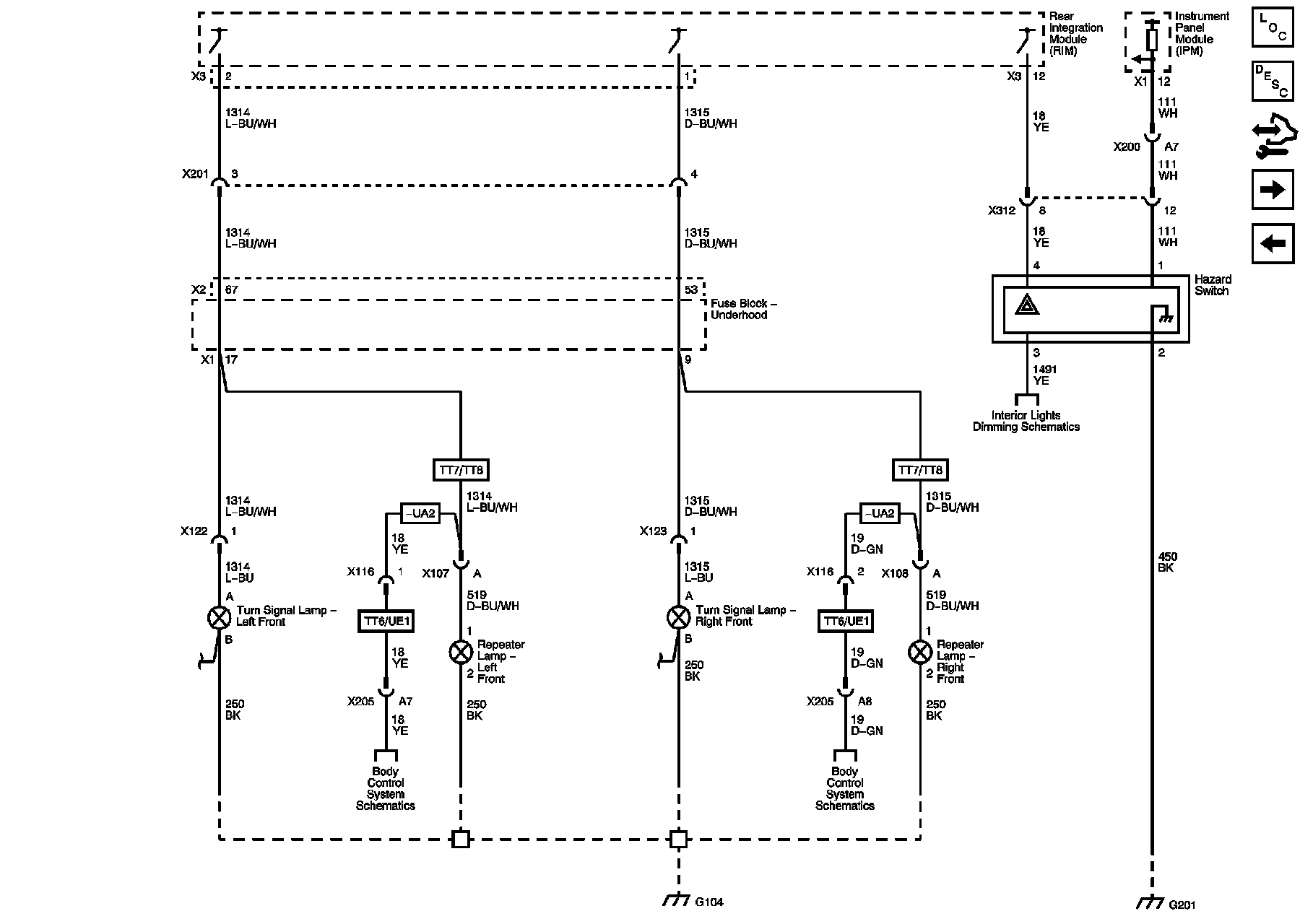

Exterior Lights Schematic 5




Exterior Lights Schematics

Front Turn Signal, Repeater Lamps, and Hazard Switch
