System Diagram

Automatic Transmission Controls Schematics

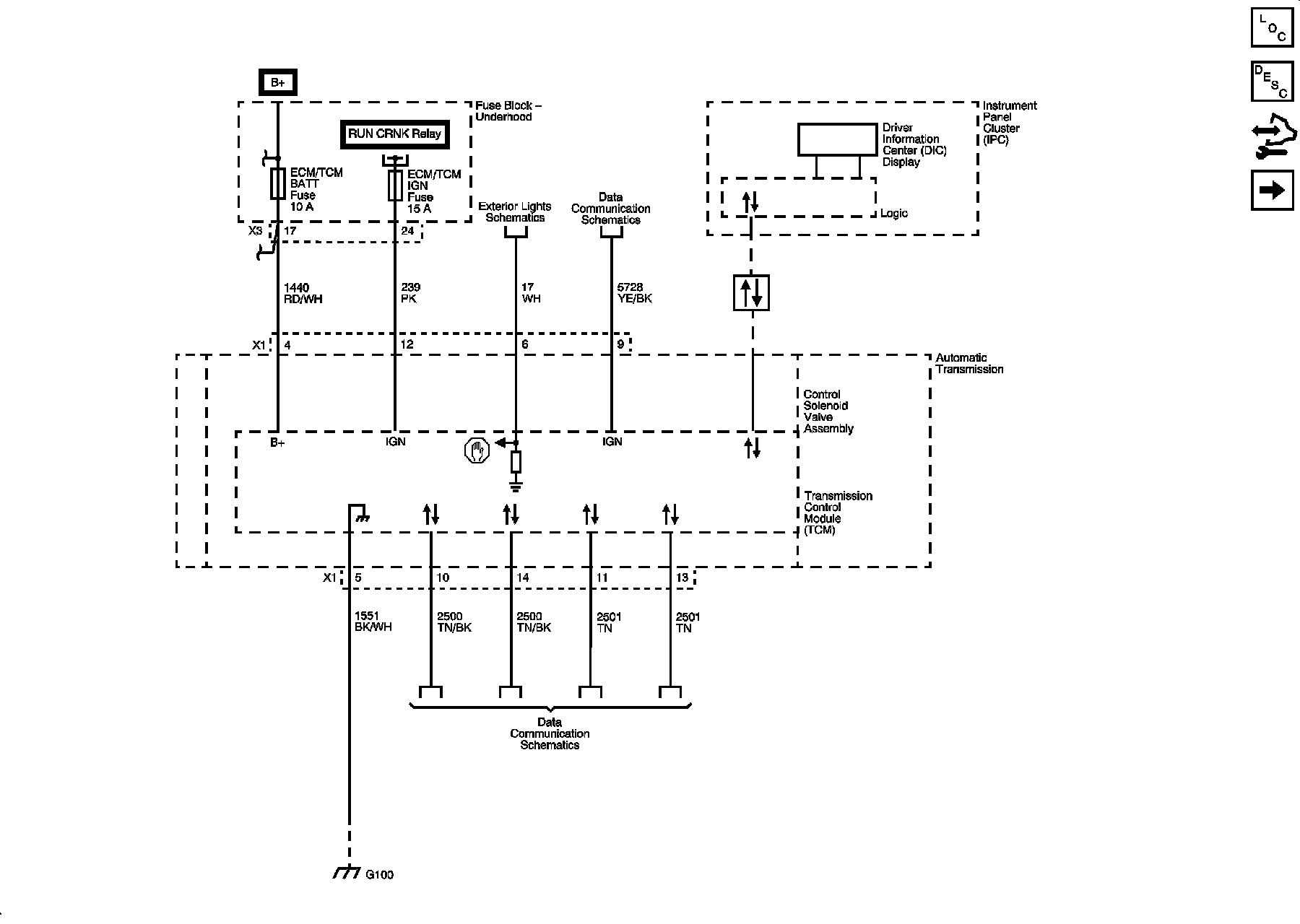

Module Power, Ground, Data Communication

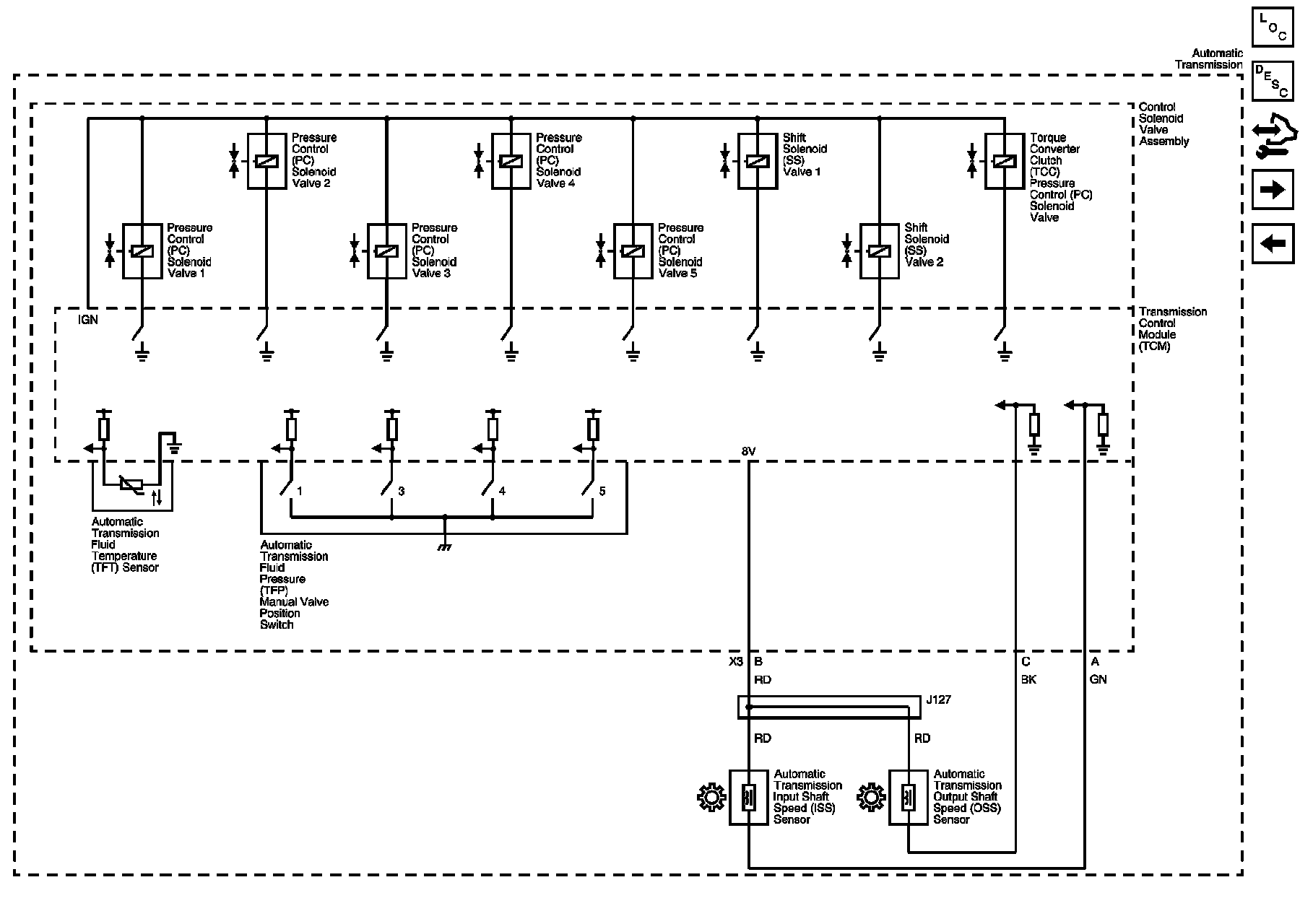

ISS, OSS, TFP, TFT Pressure Controls and Shift Controls

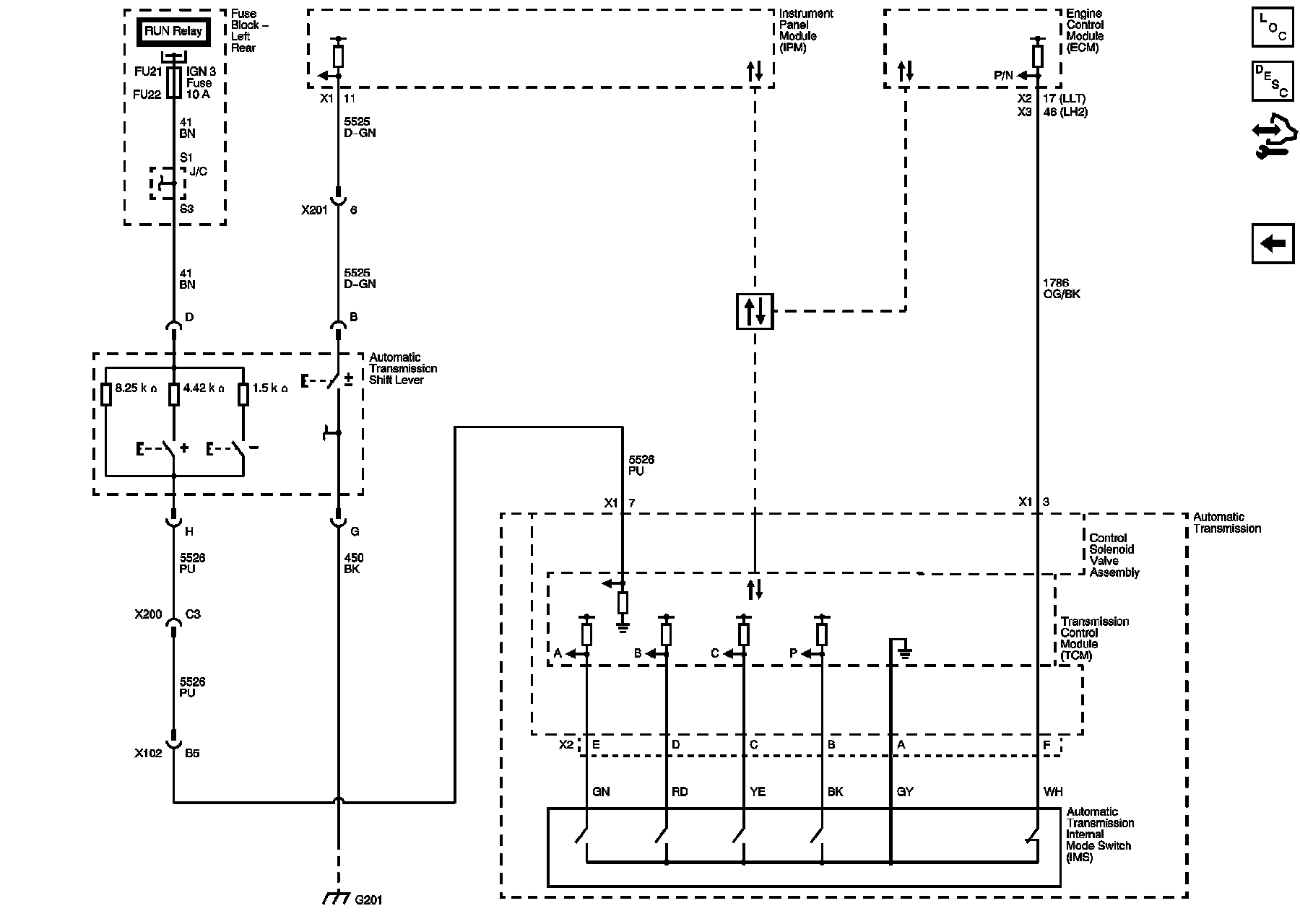

IMS and Tap Up/Tap Down
