Cigar Lighter - Front (DT4)
Cigar Lighter - Front (DT4)

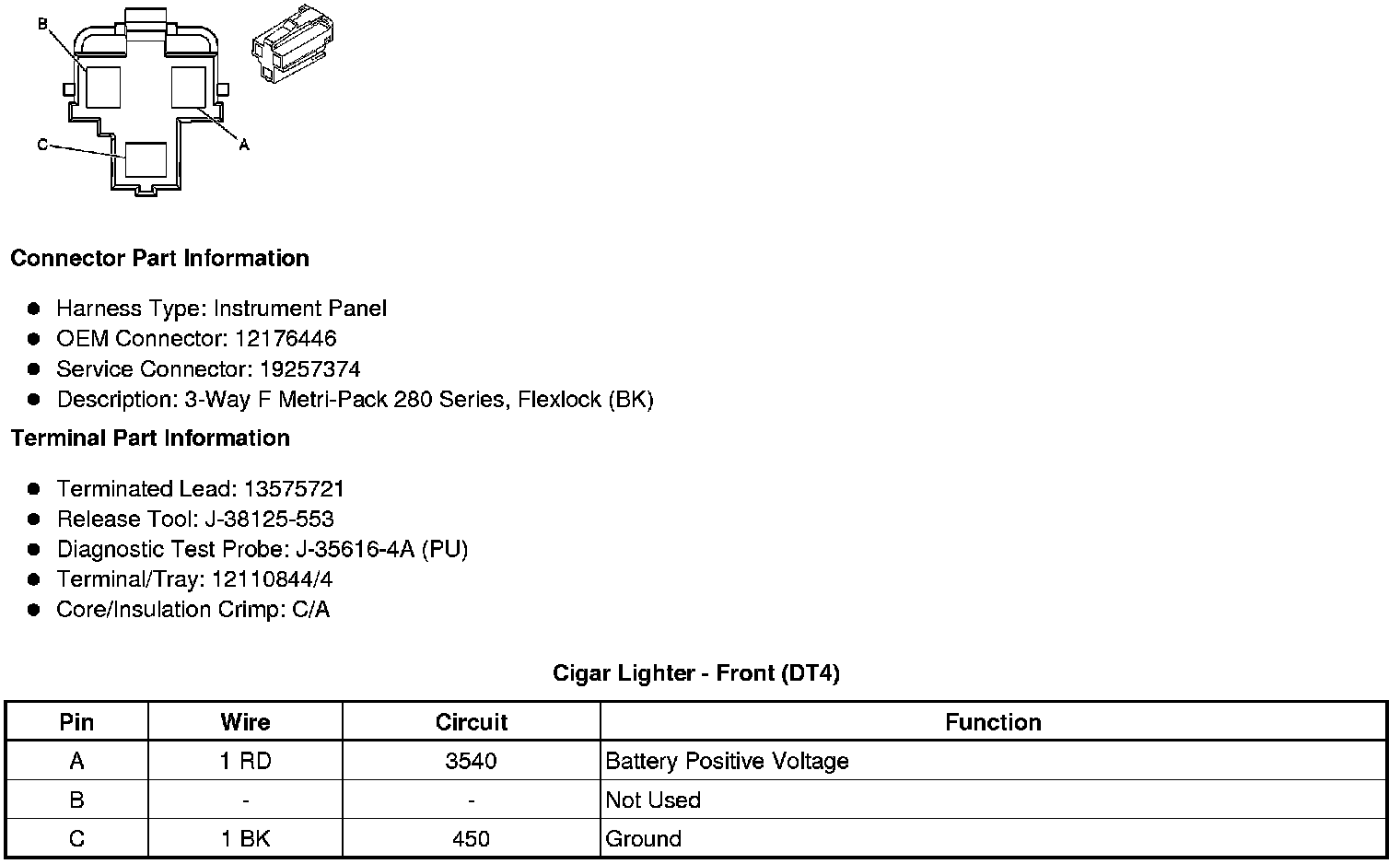

Component Connector End Views
Cigar Lighter - Front (DT4)
