Steering Column Lock Control Module X2 (UA2 or UA7)
Steering Column Lock Control Module X2 (UA2 or UA7)
Component Connector End Views

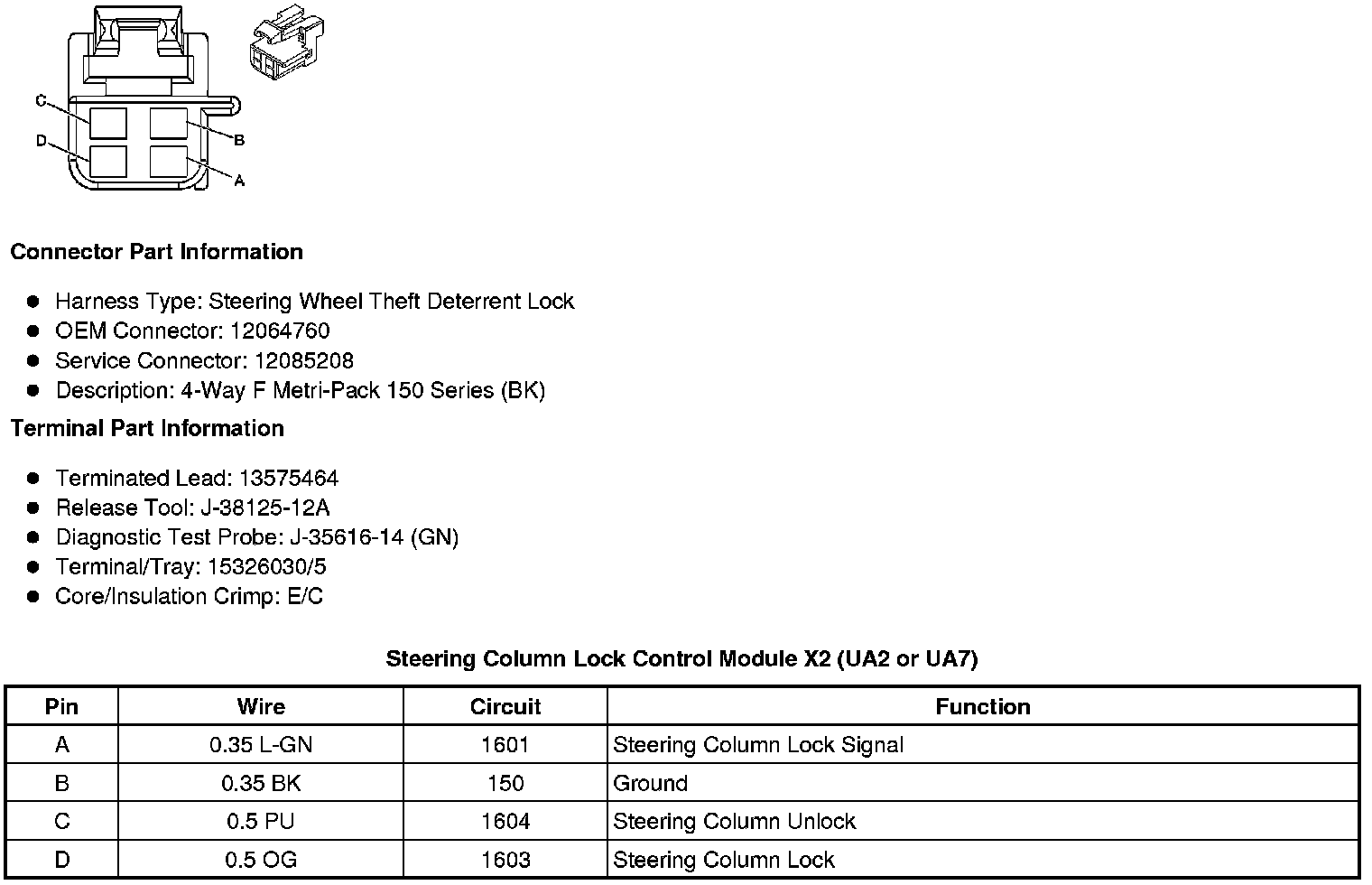

Steering Column Lock Control Module X2 (UA2 or UA7)
