Engine Cooling Fan Resistor (LTT or LH2 without V03 or V92)
Engine Cooling Fan Resistor (LTT or LH2 without V03 or V92)
Component Connector End Views

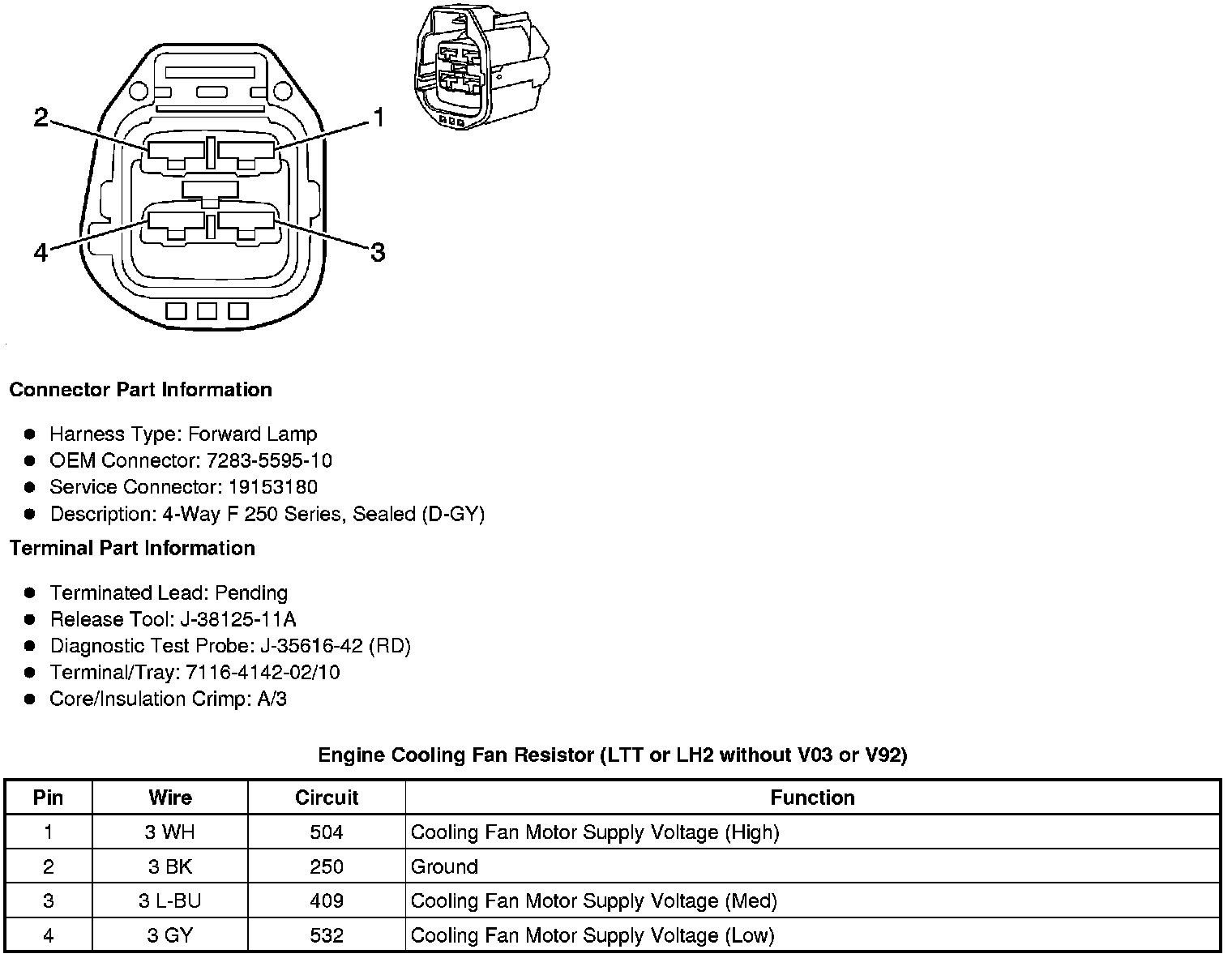

Engine Cooling Fan Resistor (LTT or LH2 without V03 or V92)
