Rear Door Latch: Diagrams




Component Connector End Views

Door Latch - Right Rear

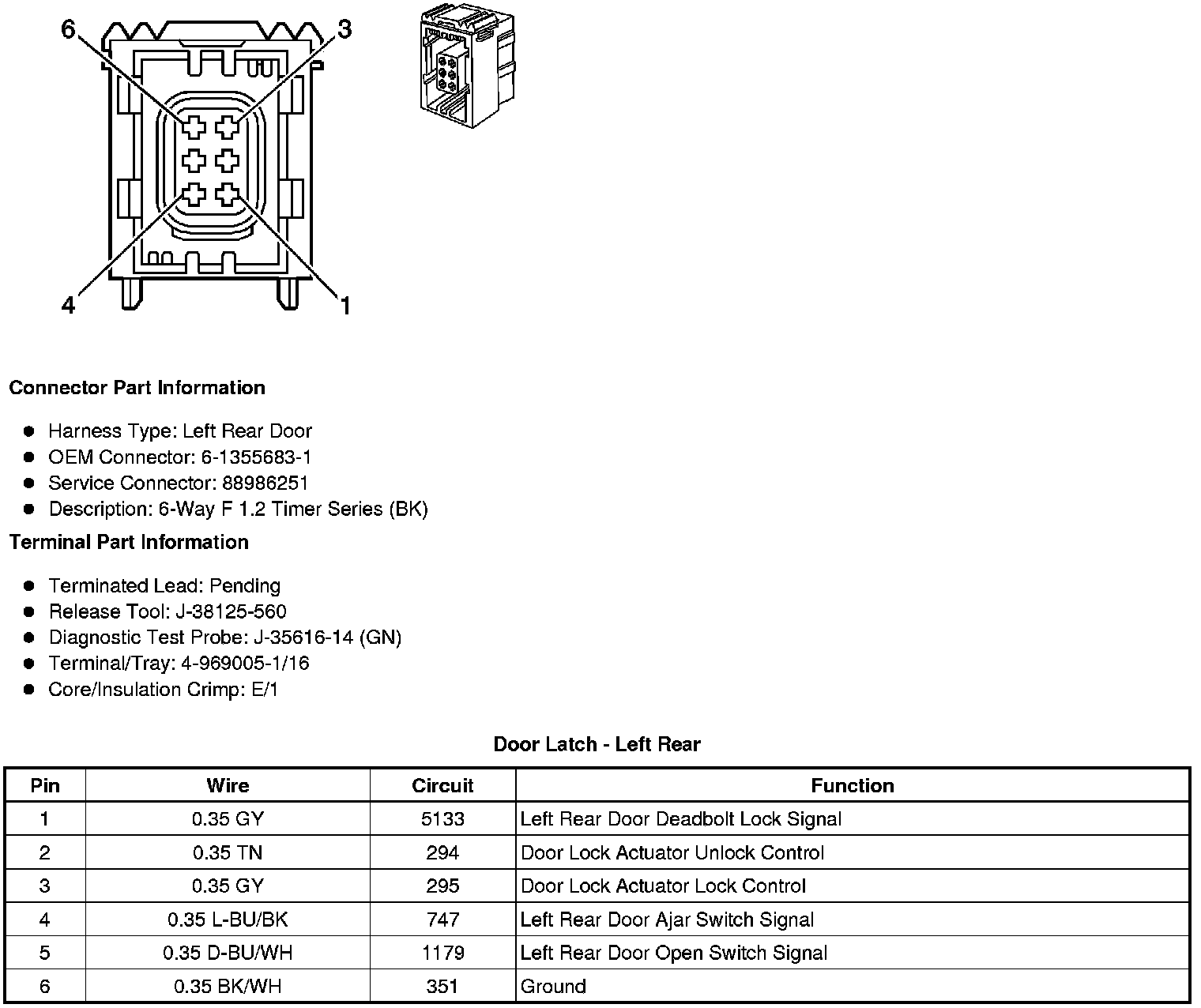

Door Latch - Left Rear
