Radio Antenna Module Replacement

Radio Antenna Module Replacement

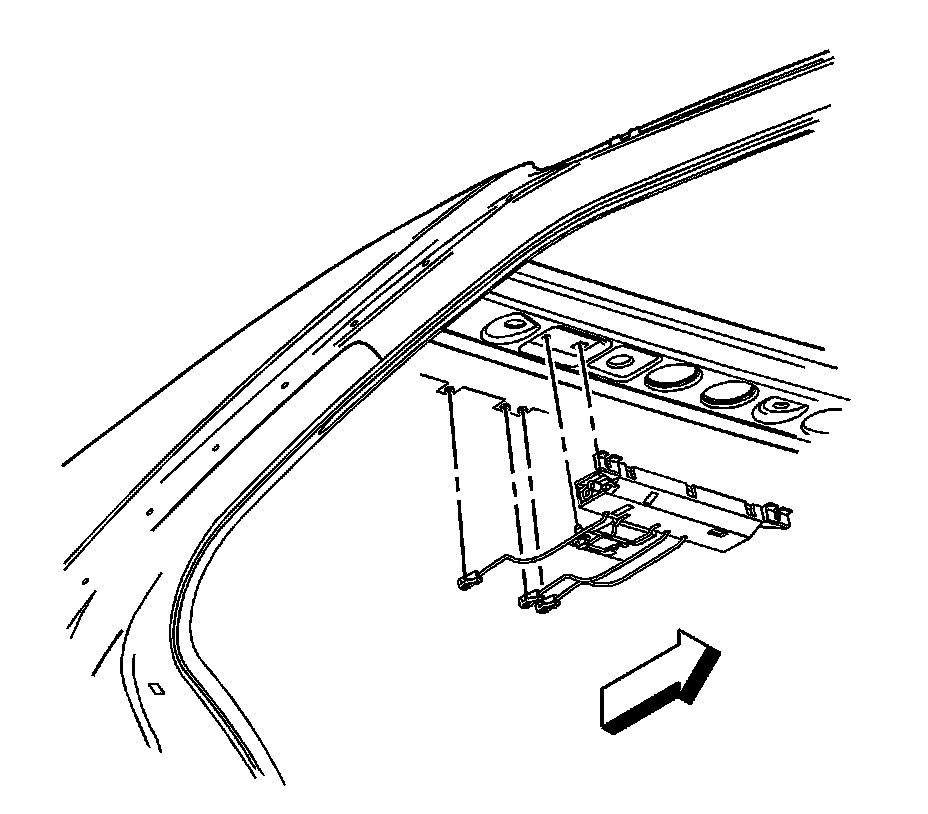

Removal Procedure

1. Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement (Headlining Trim Panel Replacement).




2. Remove the bolt securing antenna module to the roof.
3. Disconnect the electrical connectors.

Installation Procedure




1. Connect the electrical connectors.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the bolt securing the antenna module to the roof and tighten to 9 Nm (80 lb in).
3. Install the headliner. Refer to Headlining Trim Panel Replacement (Headlining Trim Panel Replacement).
