Power Distribution Schematics 17




Power Distribution Schematics

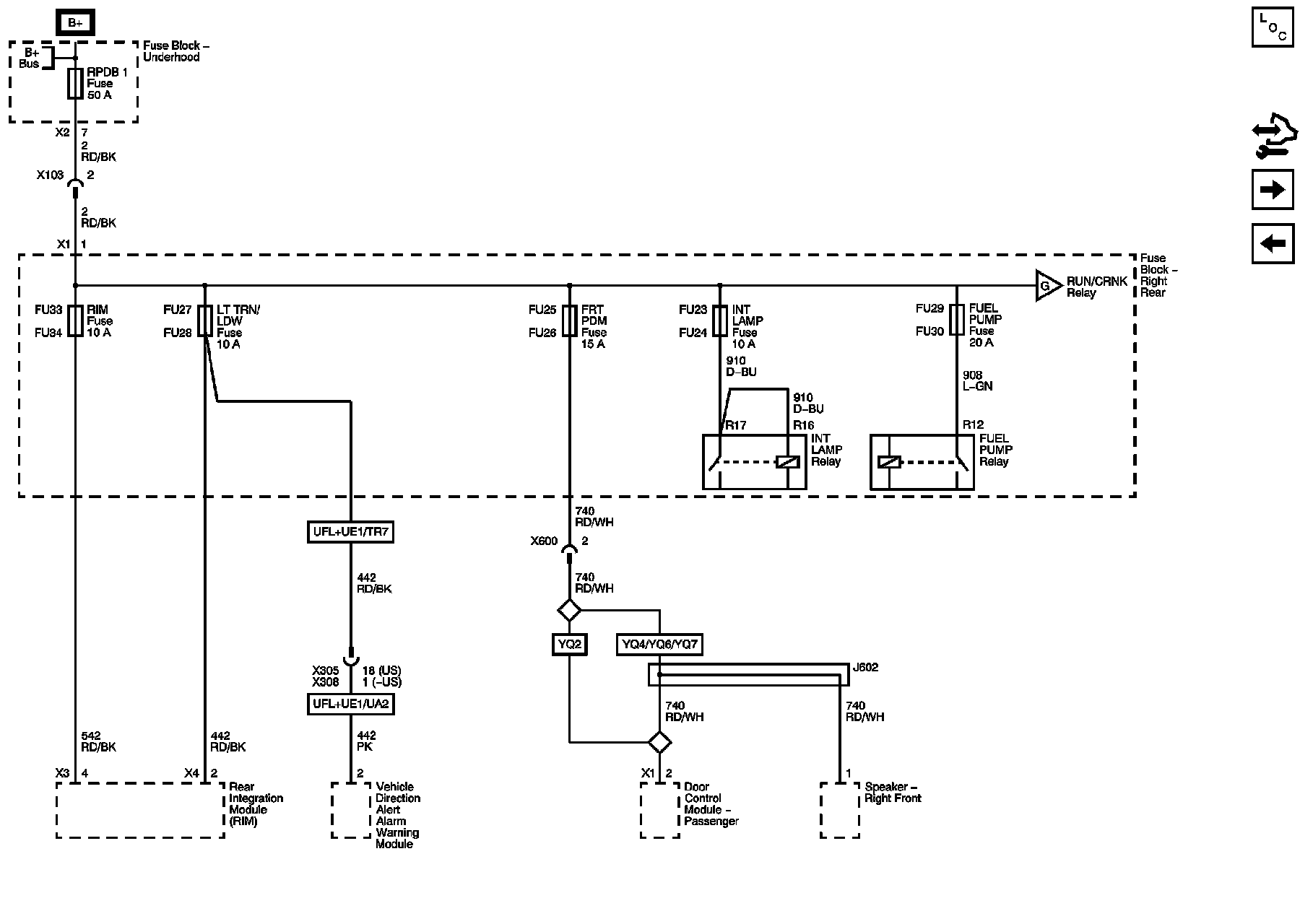

FRT PDM, LT TRN/LDW, and RIM Fuses
