Steering Angle Sensor: Diagrams




Component Connector End Views

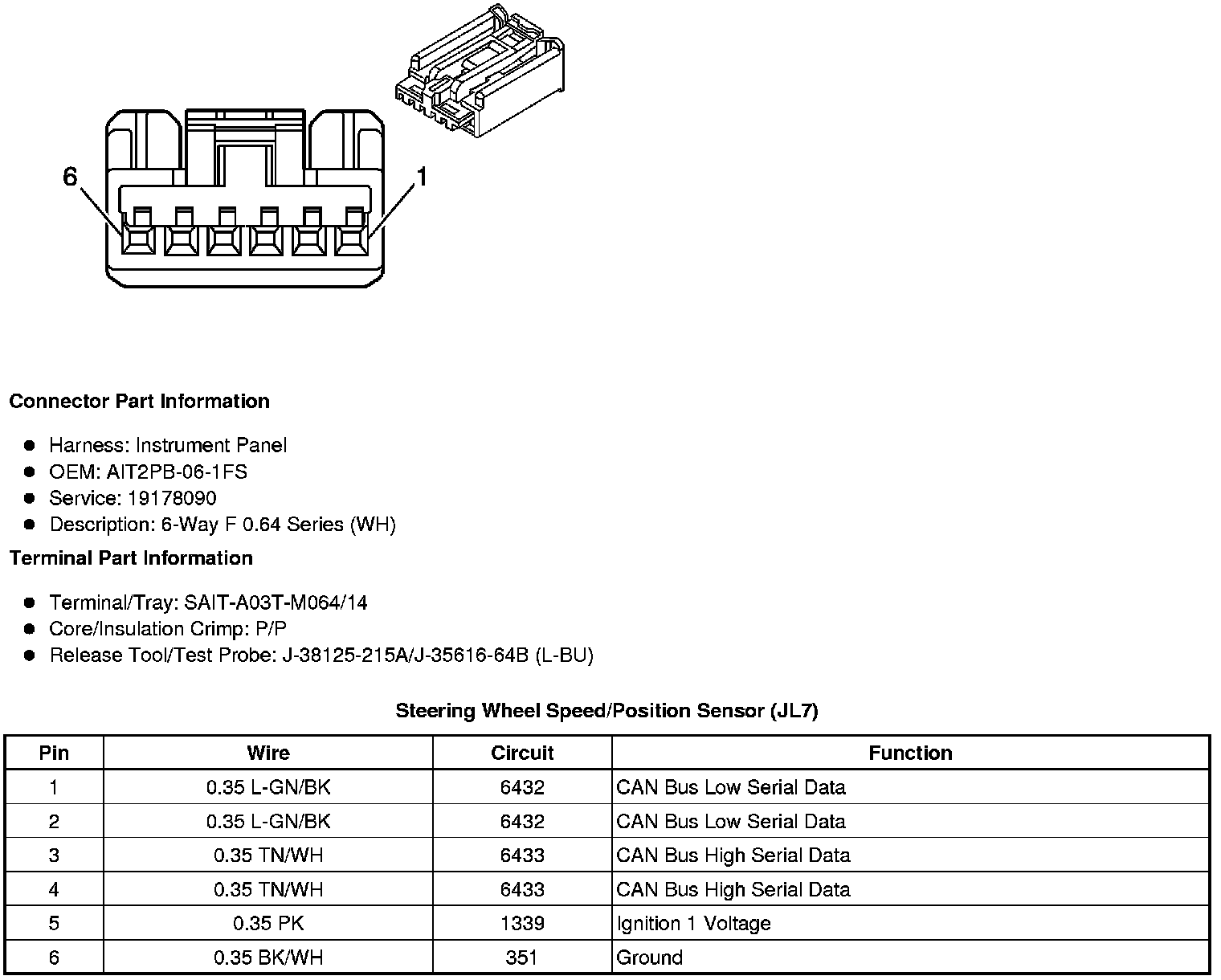

Steering Wheel Speed/Position Sensor (JL7)

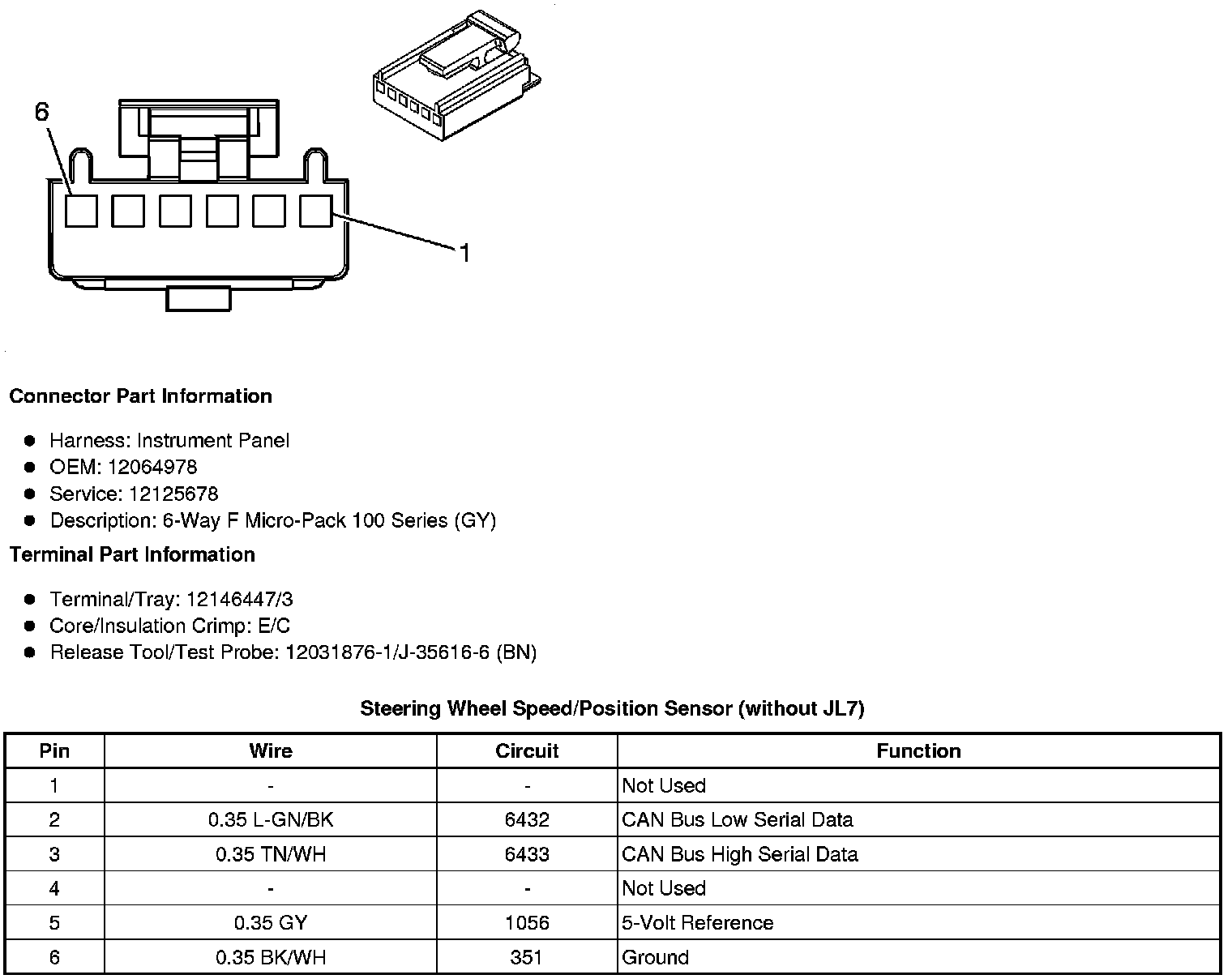

Steering Wheel Speed/Position Sensor (without JL7)

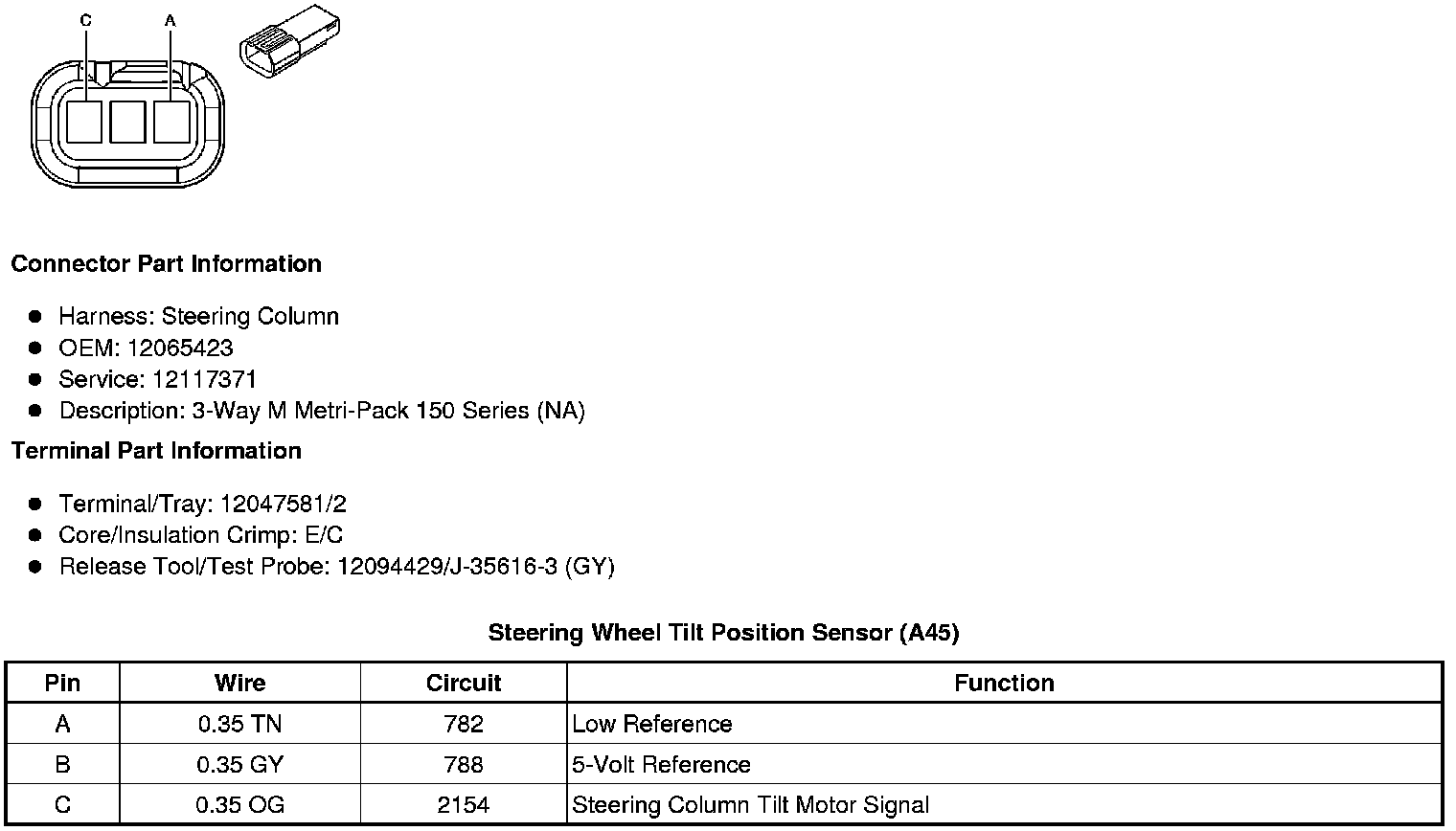

Steering Wheel Tilt Position Sensor (A45)
