Front of Vehicle/Engine Compartment Component Views




Front of Vehicle/Engine Compartment Component Views

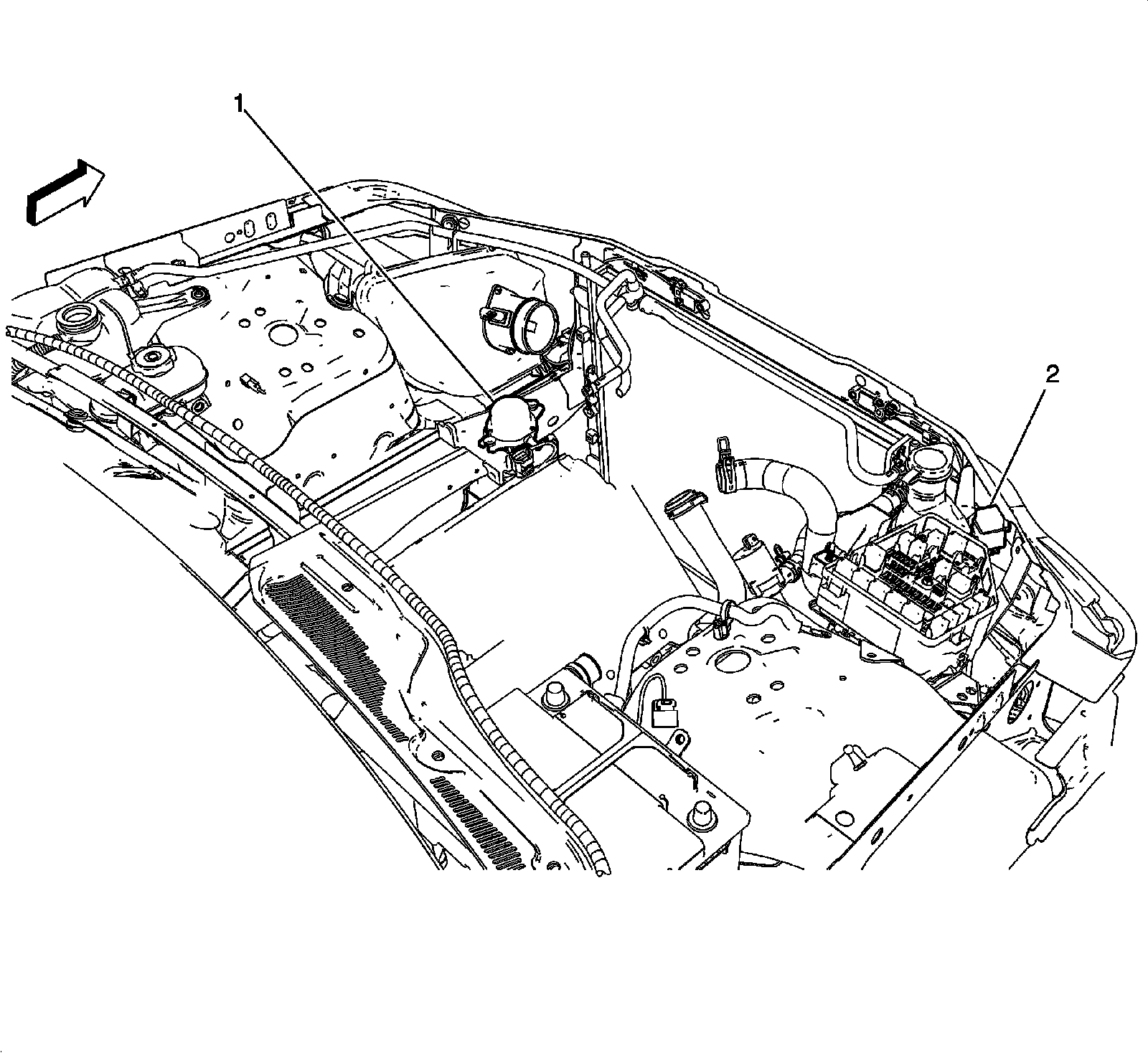

Front Engine Compartment Components 2 of 2




1 - Coolant Pump - Auxiliary (LLT)
2 - Headlamp Washer Fluid Pump Relay (CE4)
