Fuse Block - Right Rear




Electrical Center Identification Views

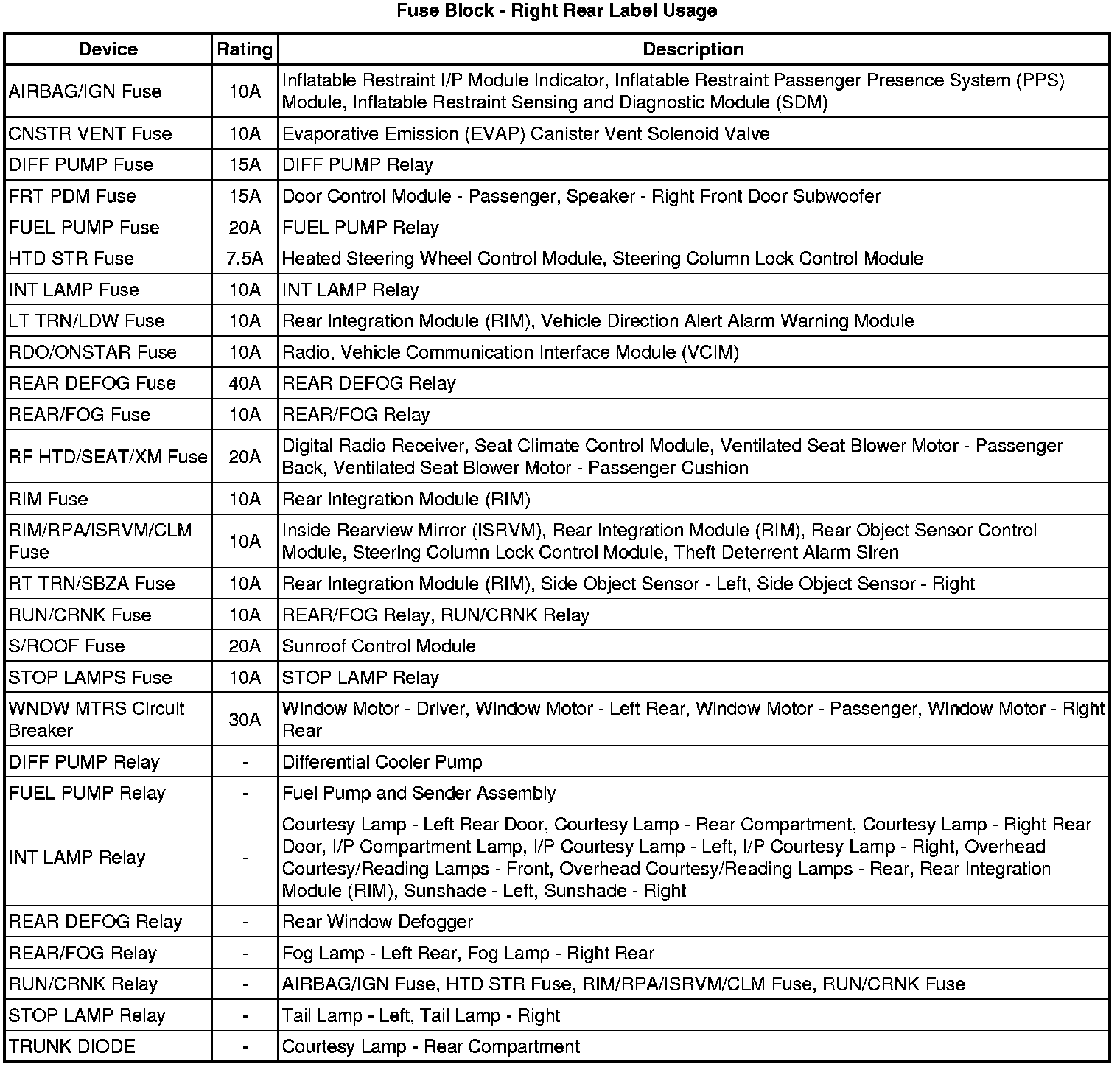

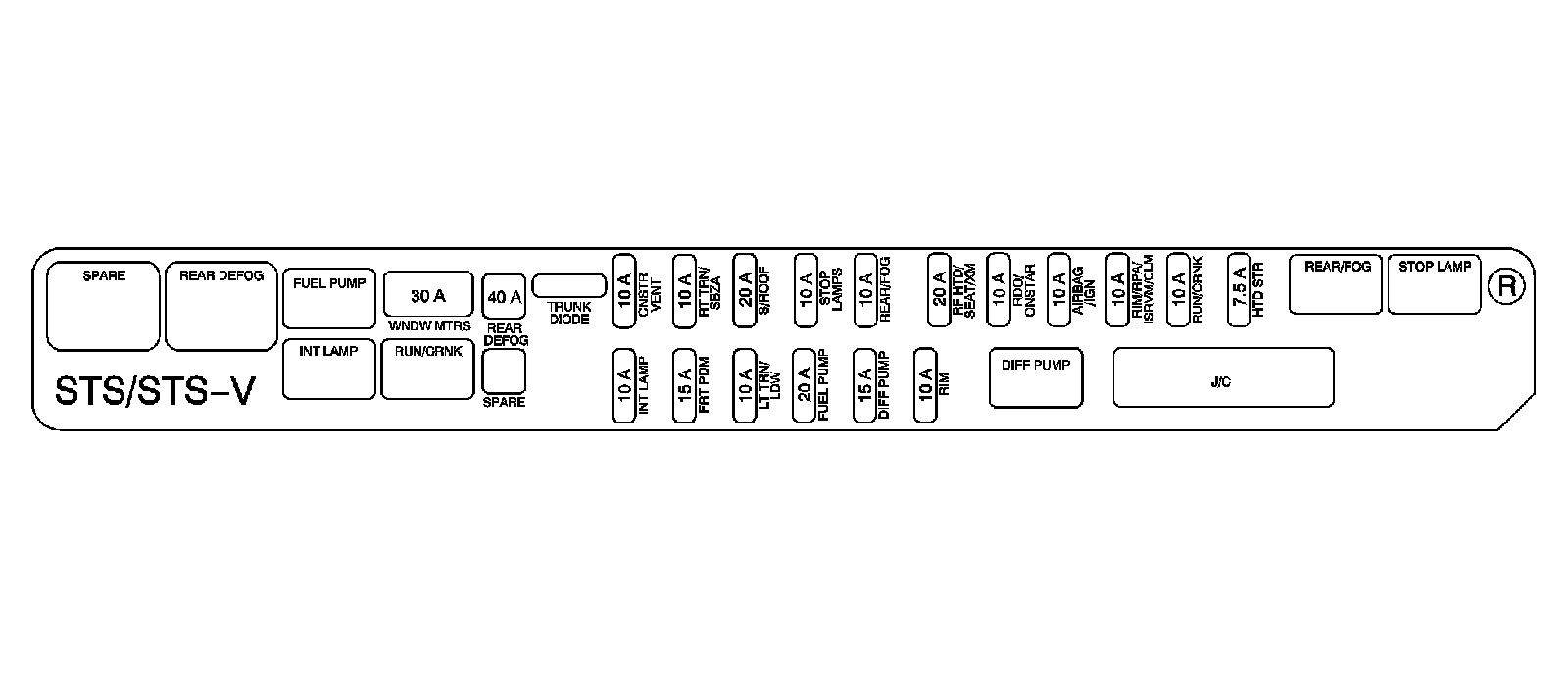

Fuse Block - Right Rear Label

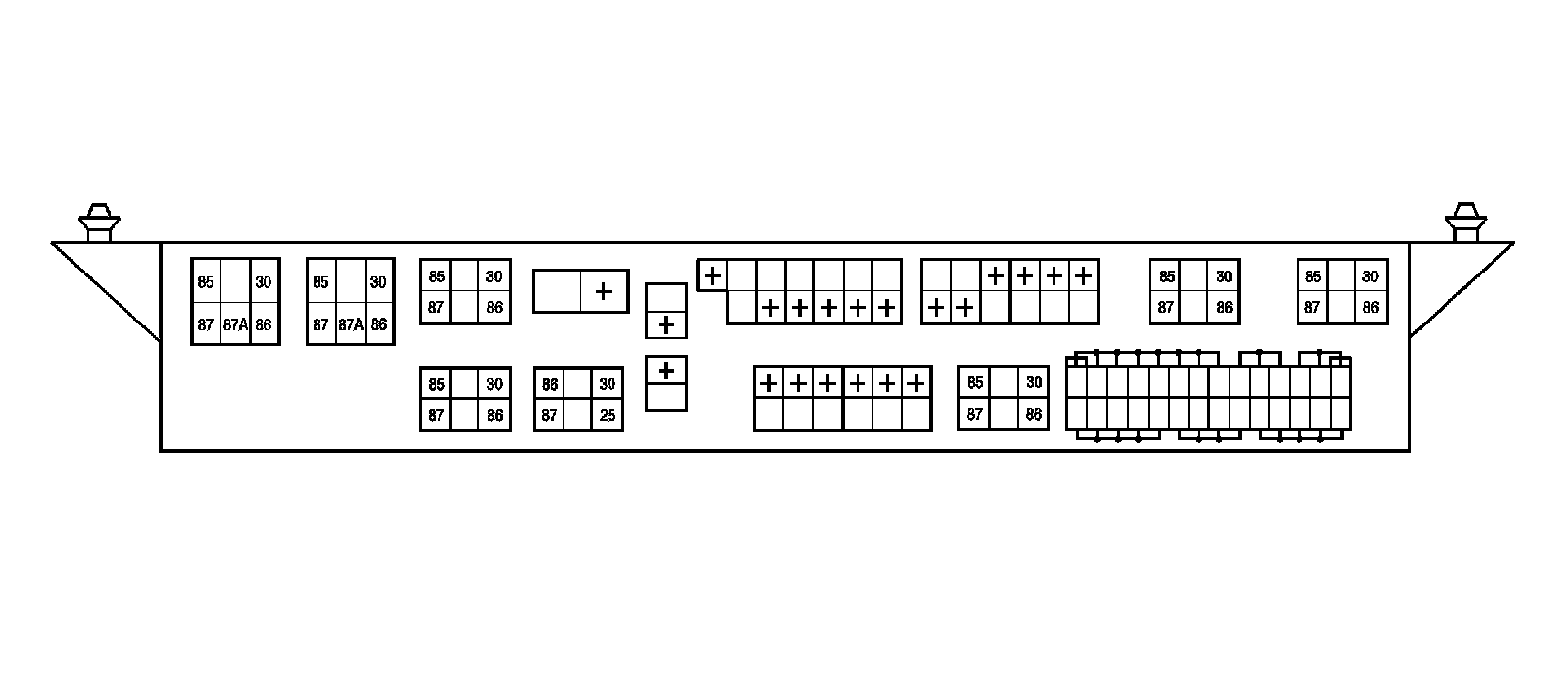

Fuse Block - Right Rear Top View

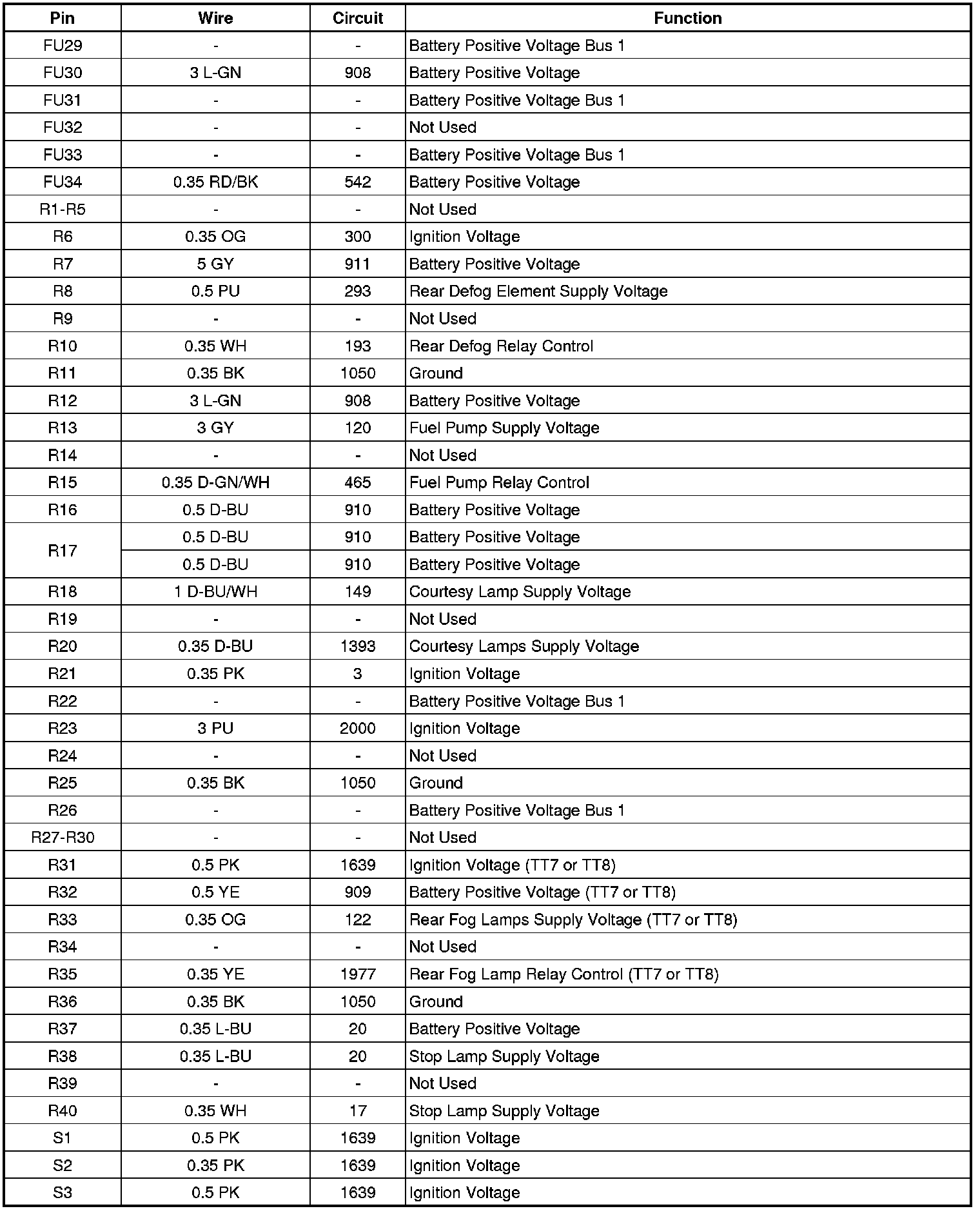

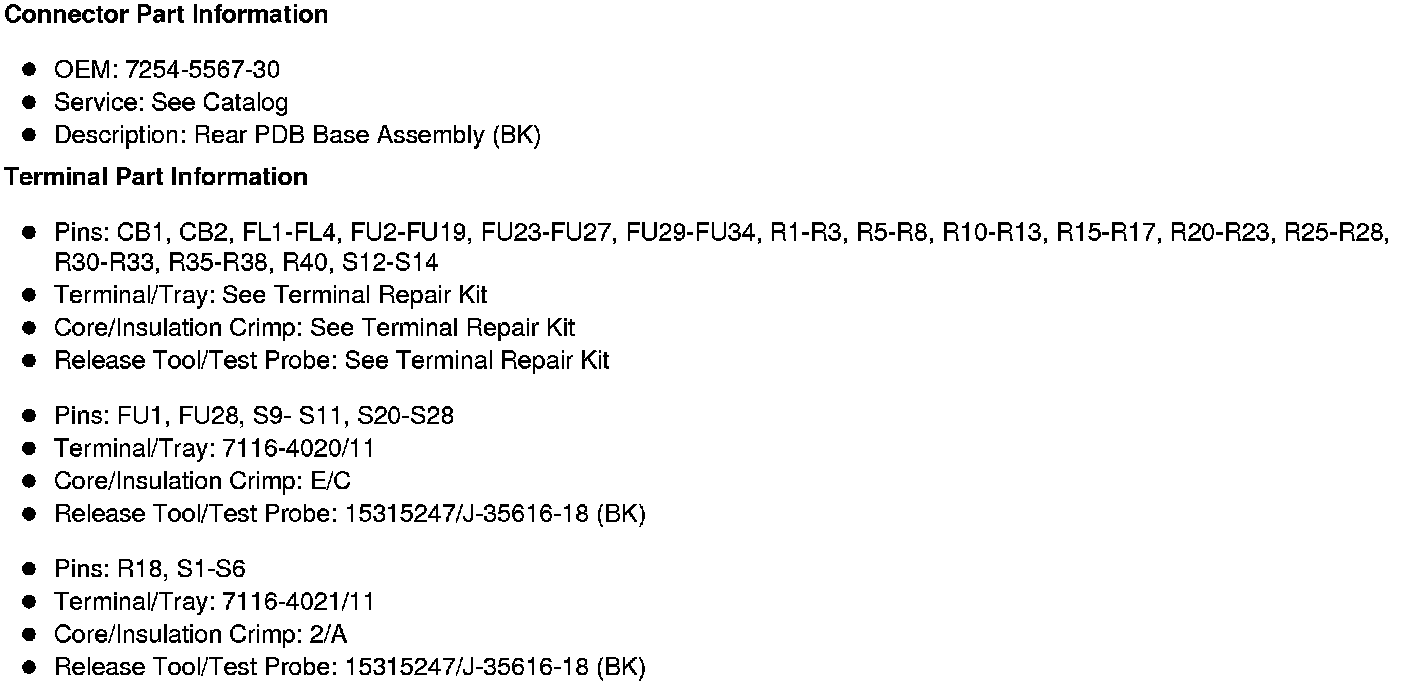

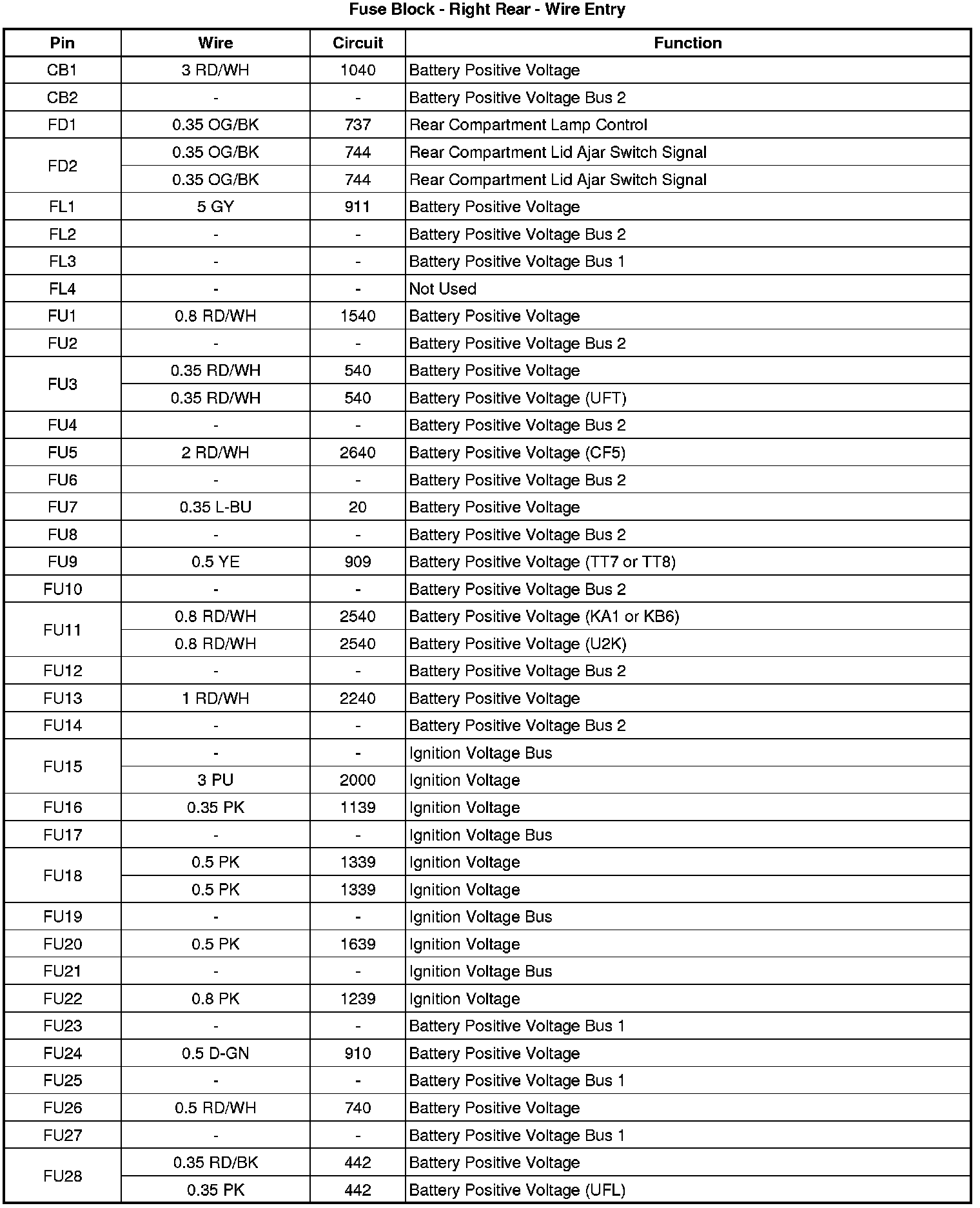

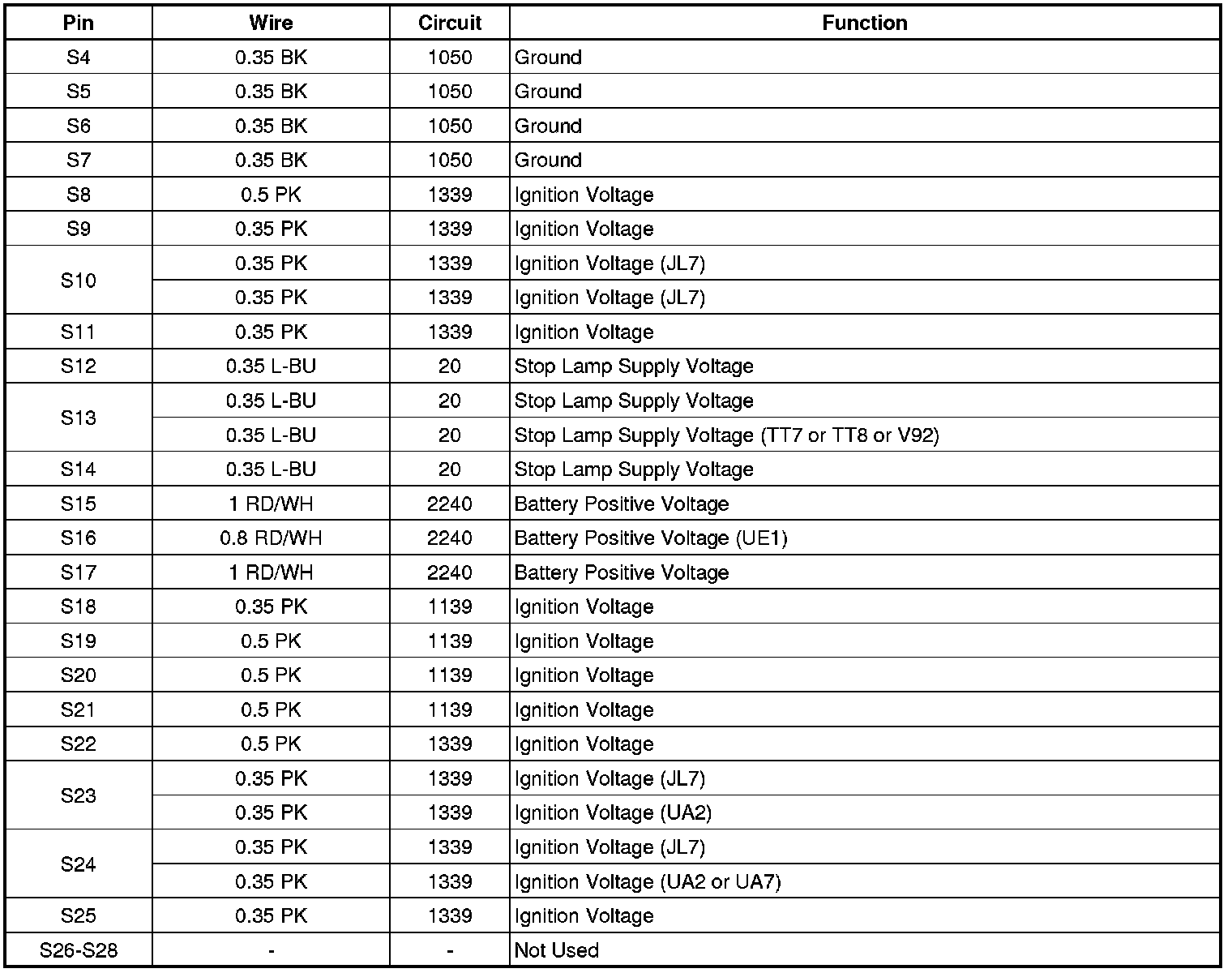

Fuse Block - Right Rear - Wire Entry
