X112

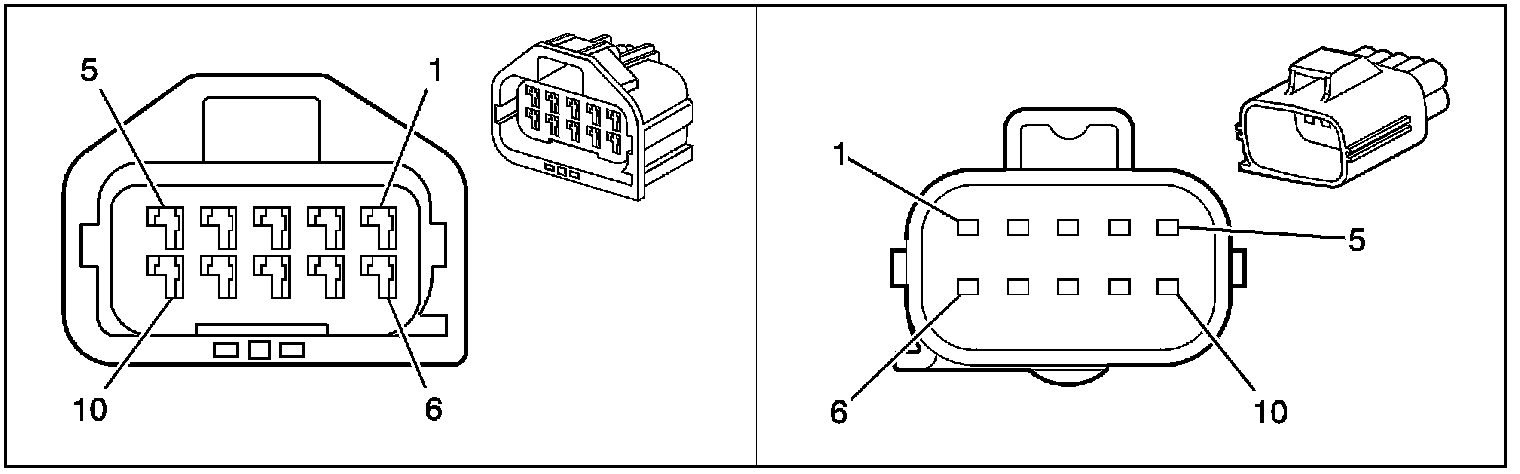

Inline Harness Connector End Views

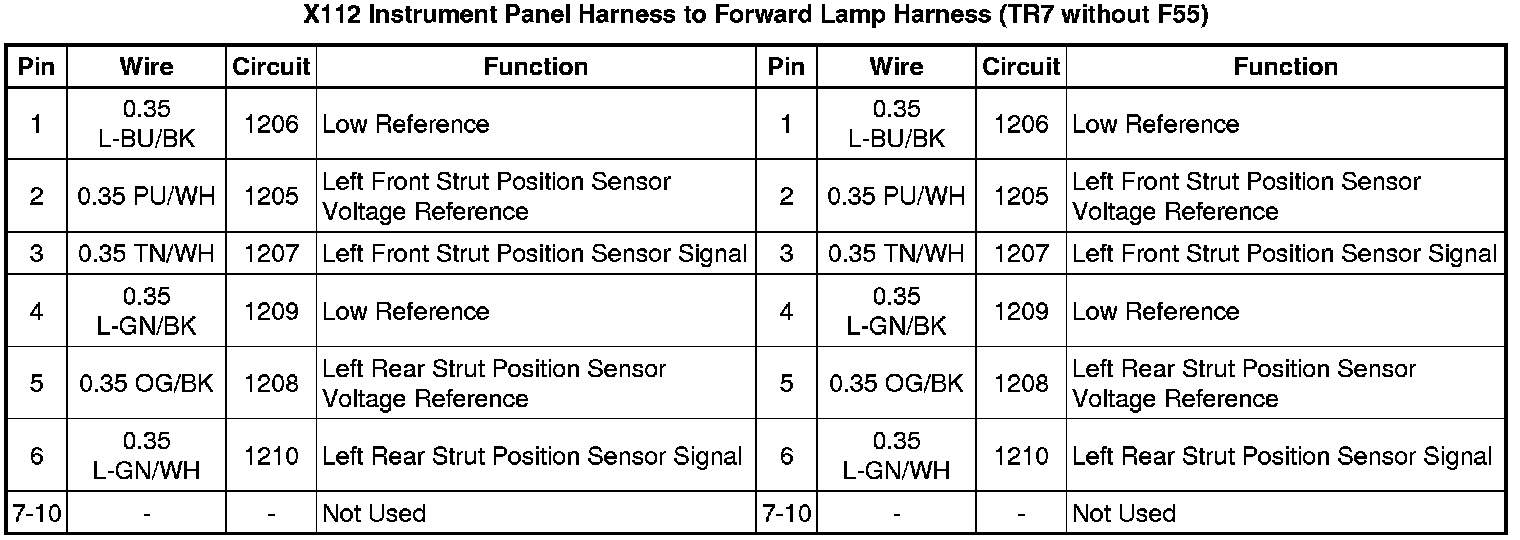

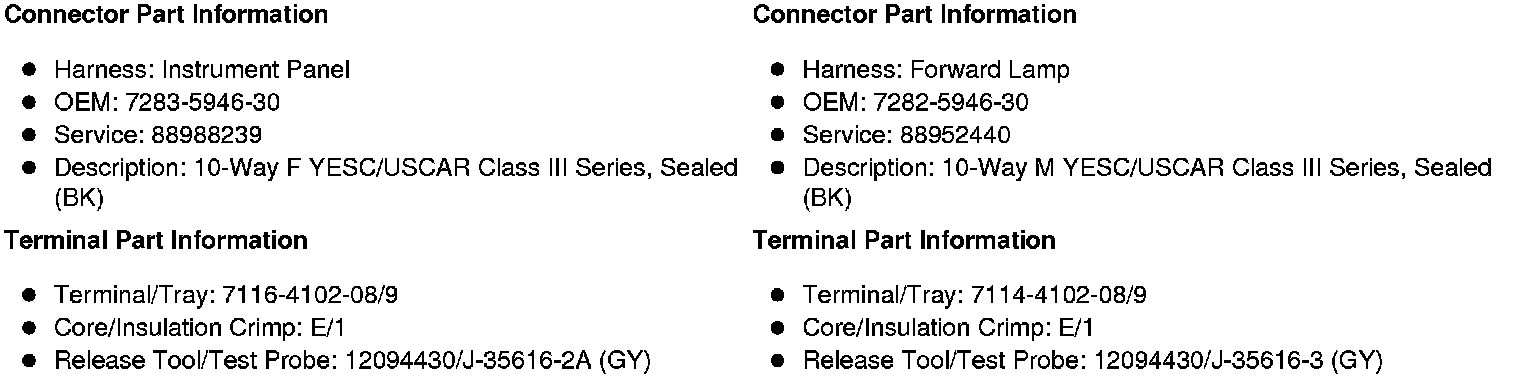

X112 Instrument Panel Harness to Forward Lamp Harness (TR7 without F55)
