Power Distribution Schematics 5




Power Distribution Schematics

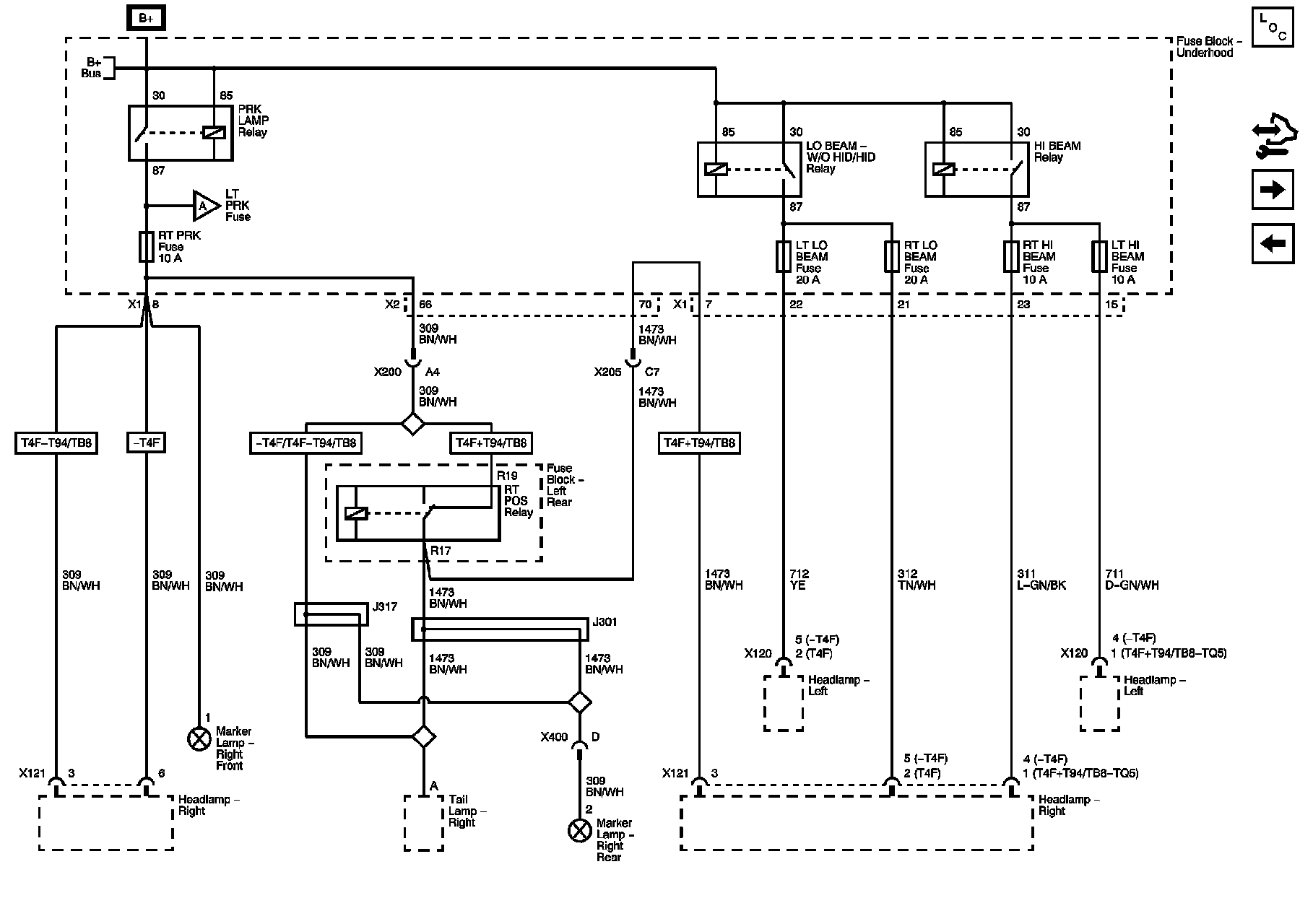

LT HI BEAM, LT LO BEAM, RT HI BEAM, RT LO BEAM, and RT PRK Fuses
