Exterior Lights Schematics
>>
Exterior Lights Schematics 6
Exterior Lights Schematics 6
Exterior Lights Schematics

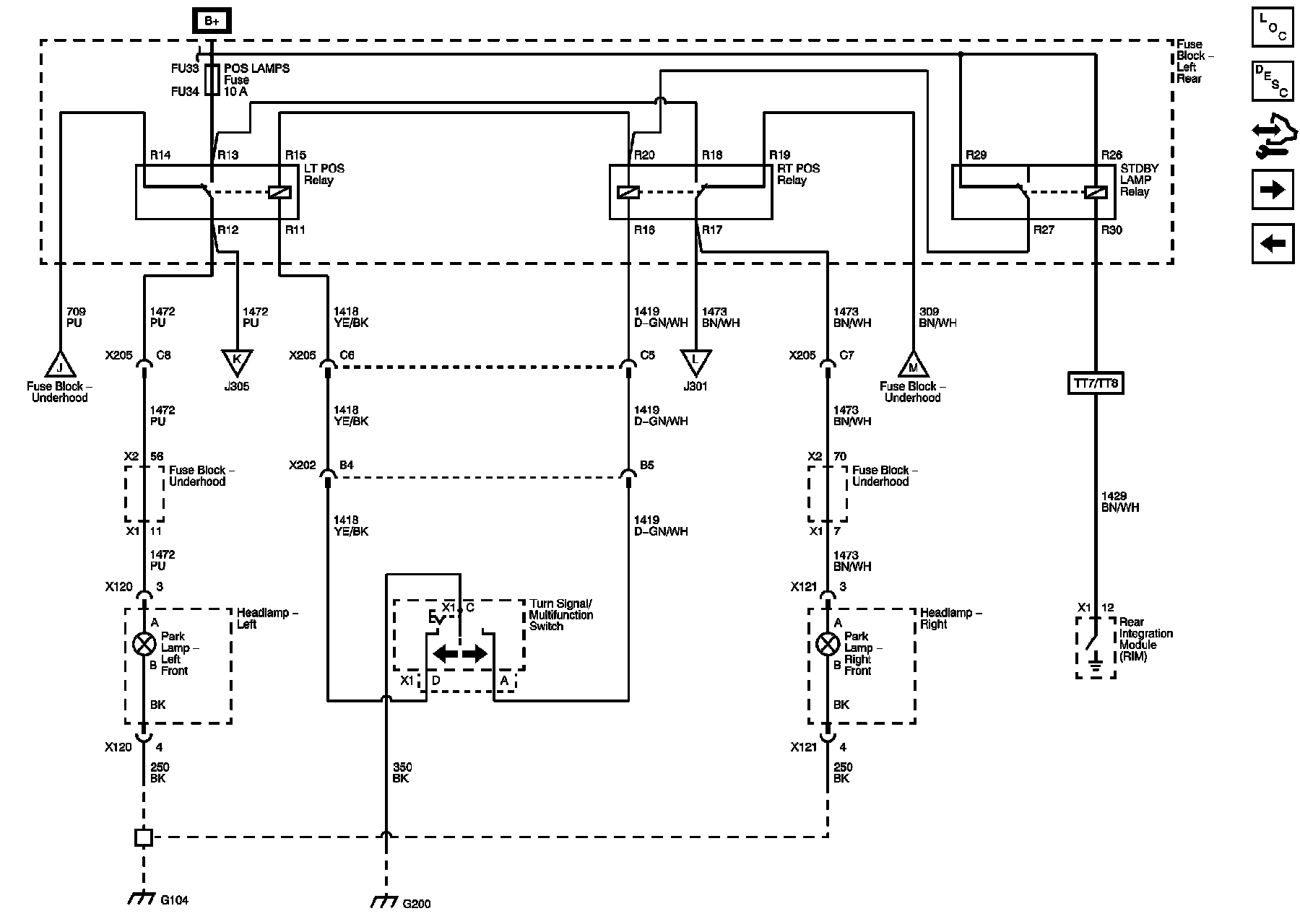

Front Park Lamps, LT, RT Position and Standby Lamp Relays (except North America)
