Exterior Lights Schematics 2




Exterior Lights Schematics

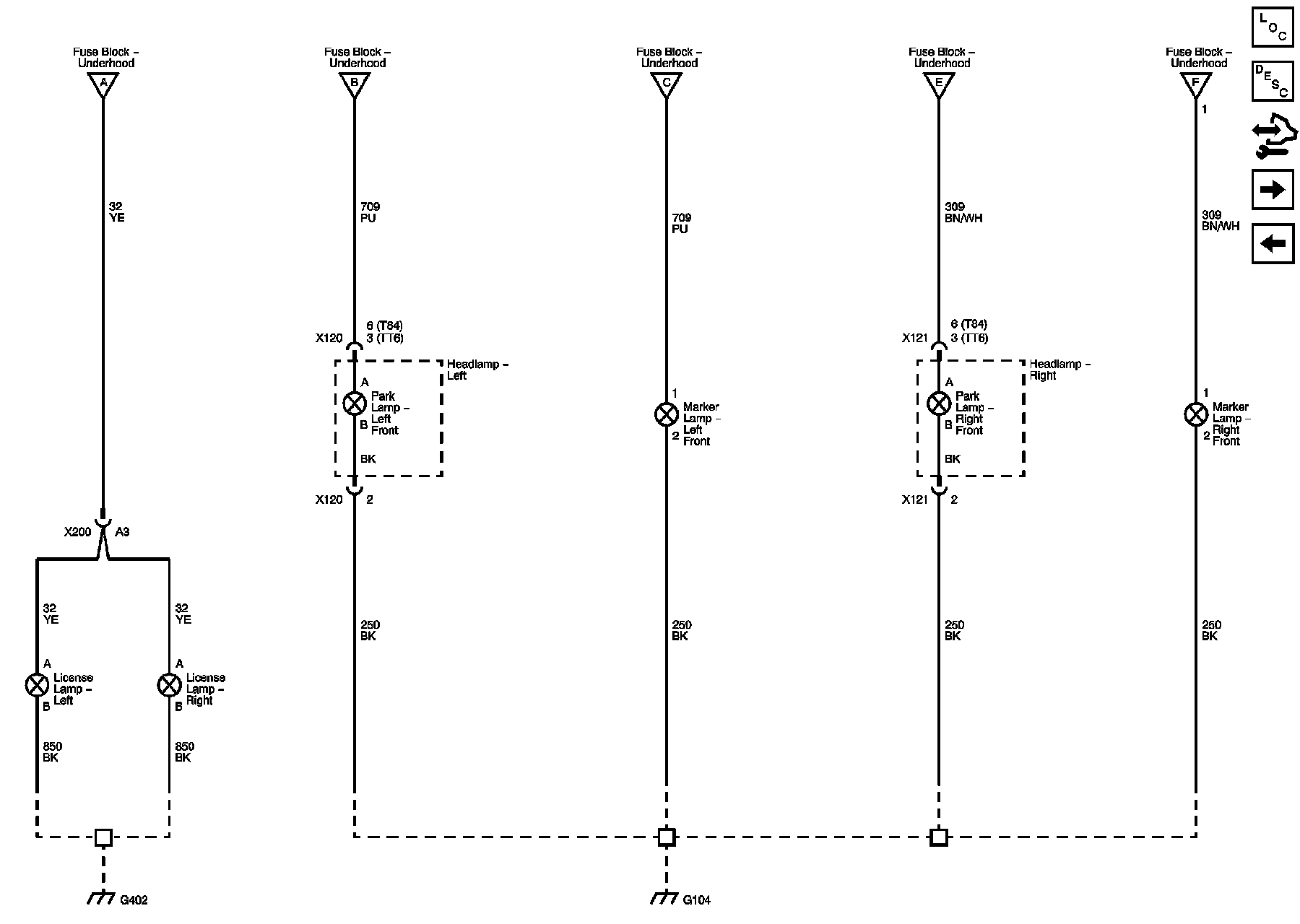

License, Park and Side Marker Lamps (North America)
