Differential Temperature Sensor/Switch

Component Connector End Views

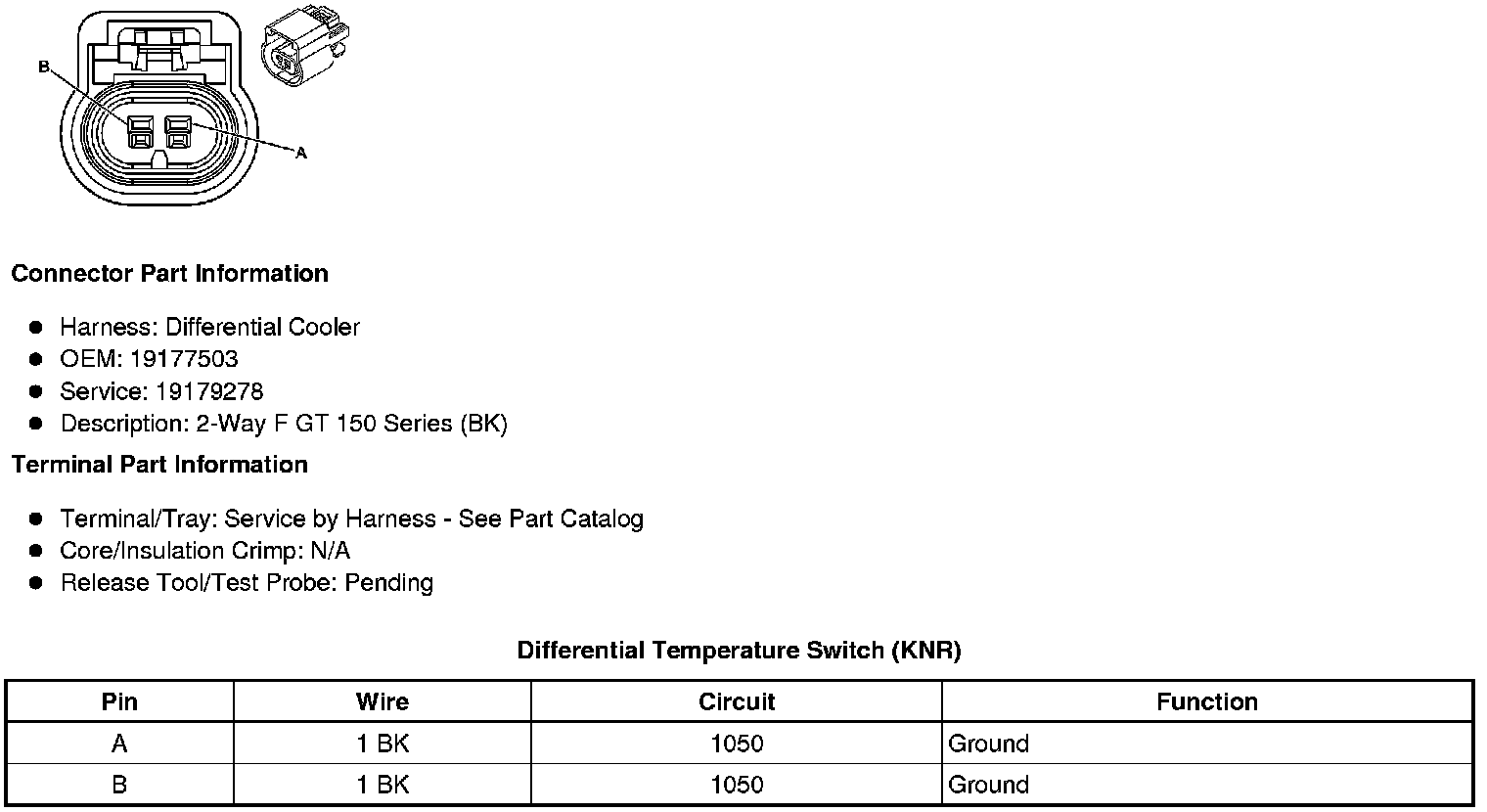

Differential Temperature Switch (KNR)

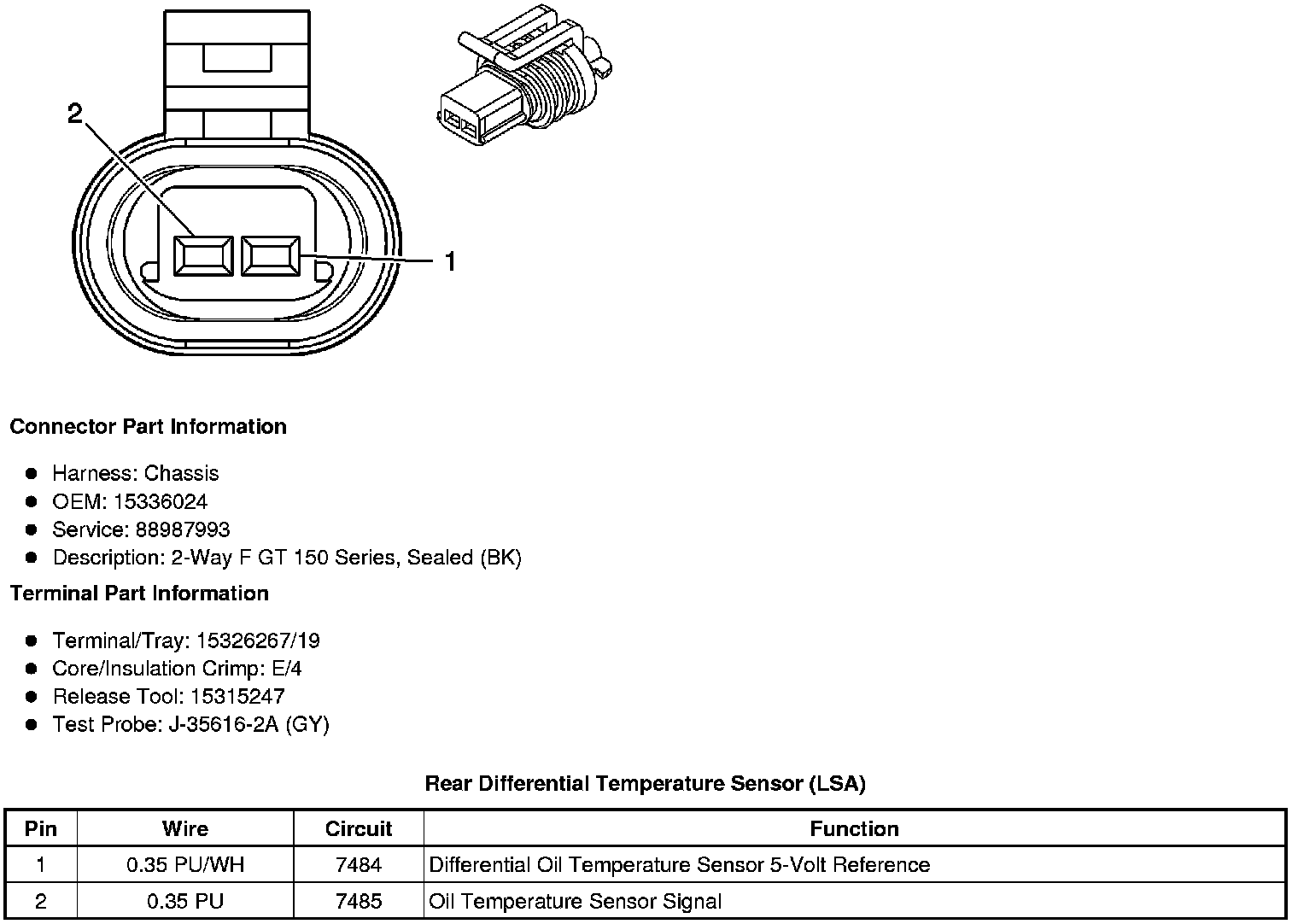

Rear Differential Temperature Sensor (LSA)
