Amplifier, Sound System

Component Connector End Views

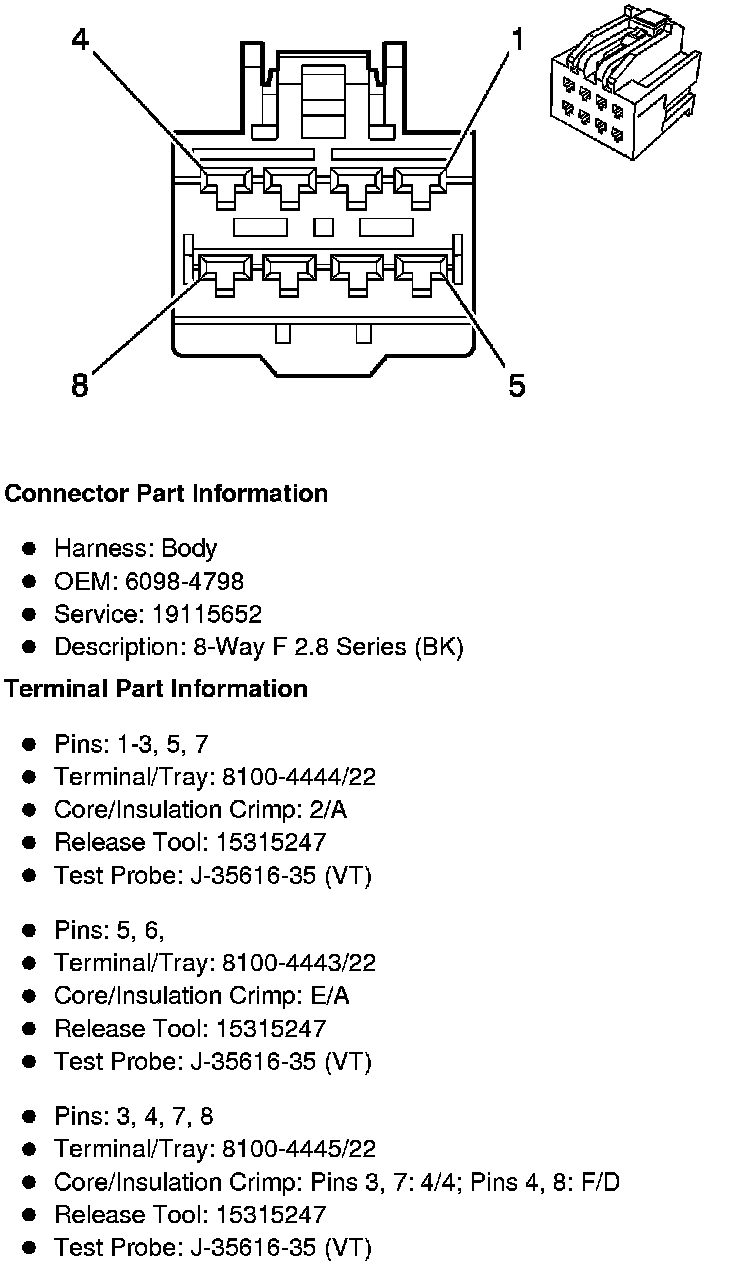

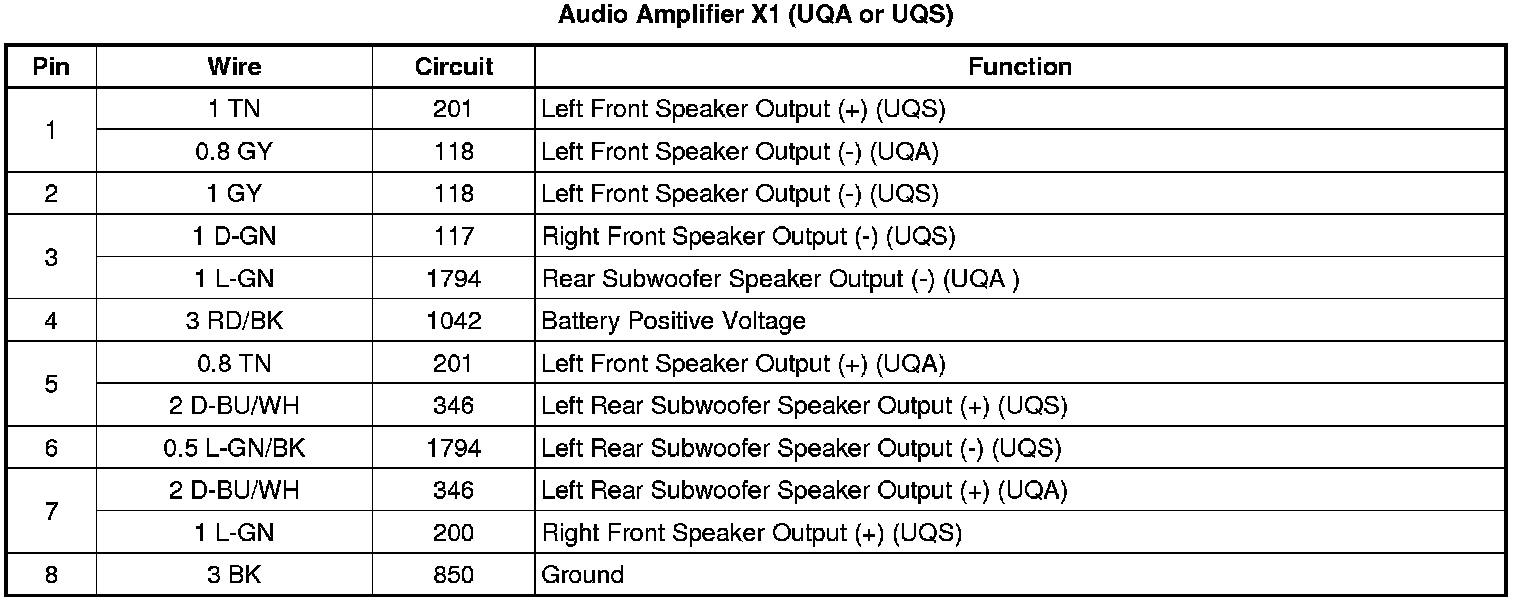

Audio Amplifier X1 (UQA or UQS)

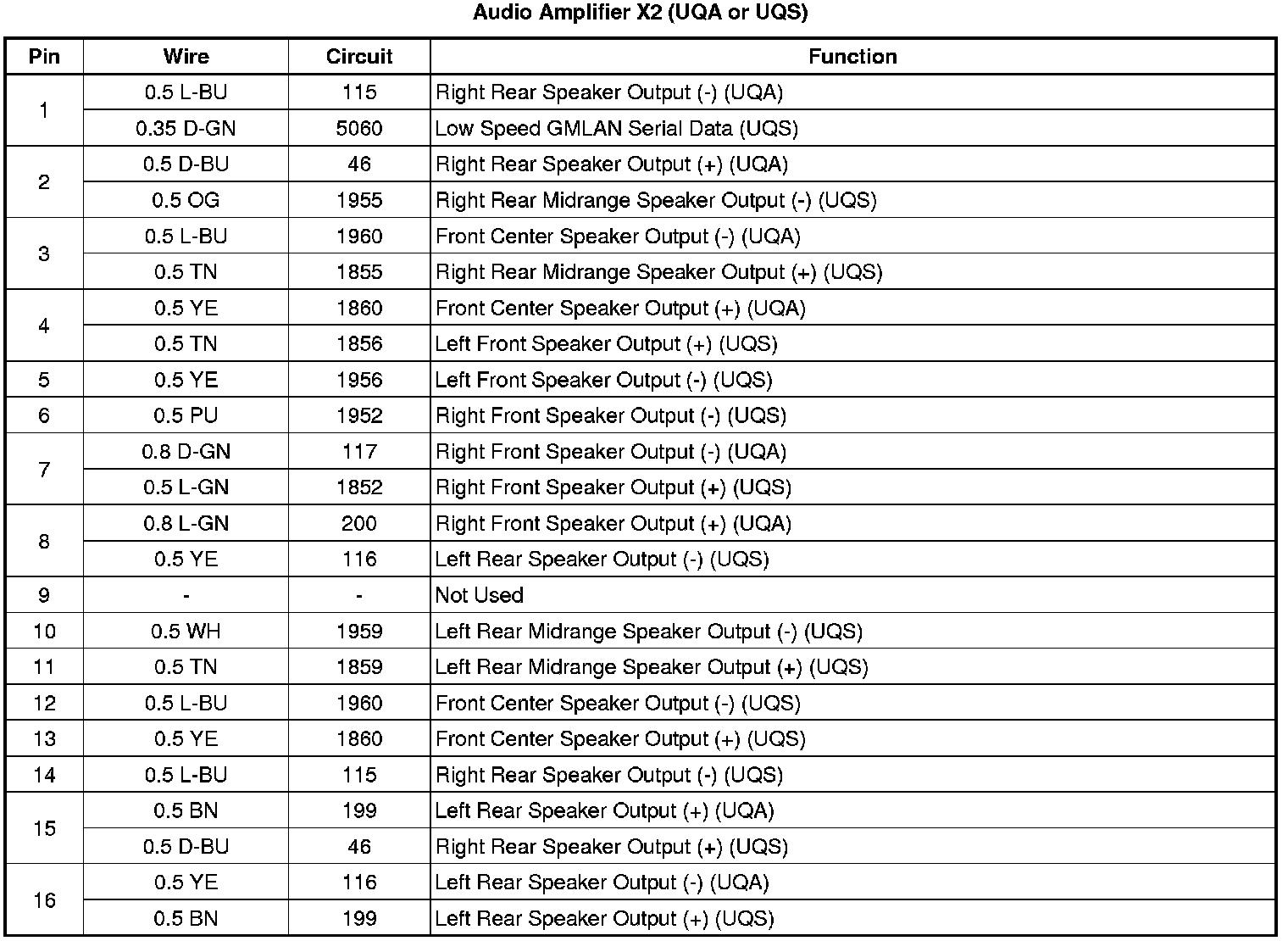

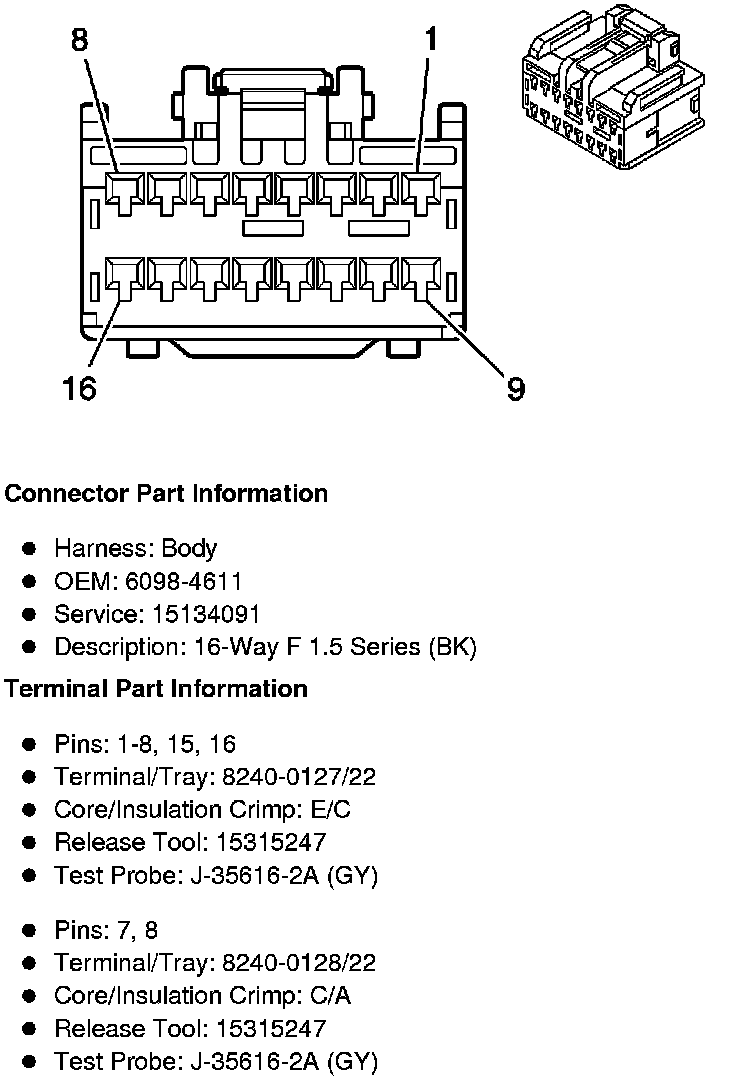

Audio Amplifier X2 (UQA or UQS)

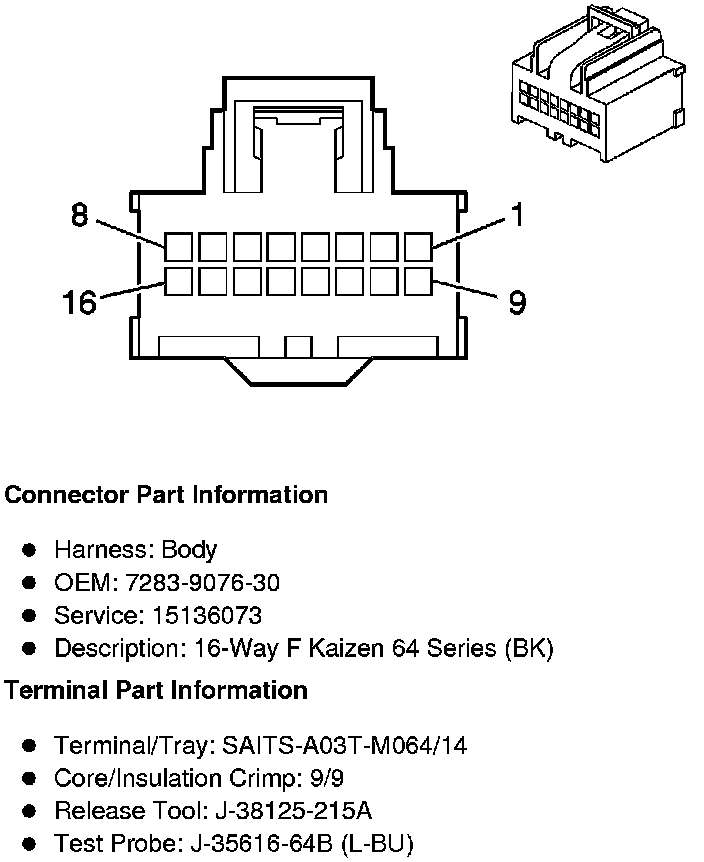

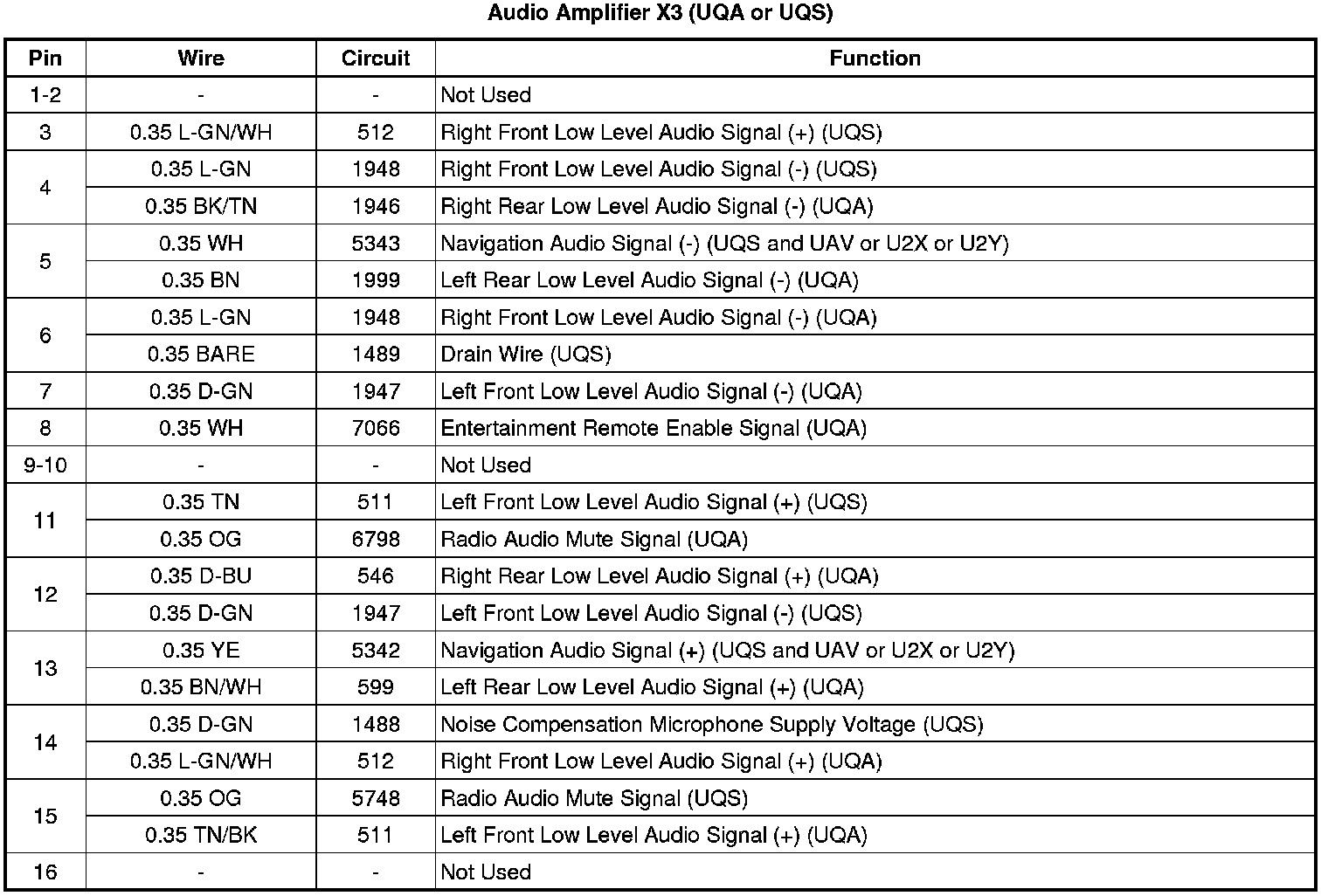

Audio Amplifier X3 (UQA or UQS)

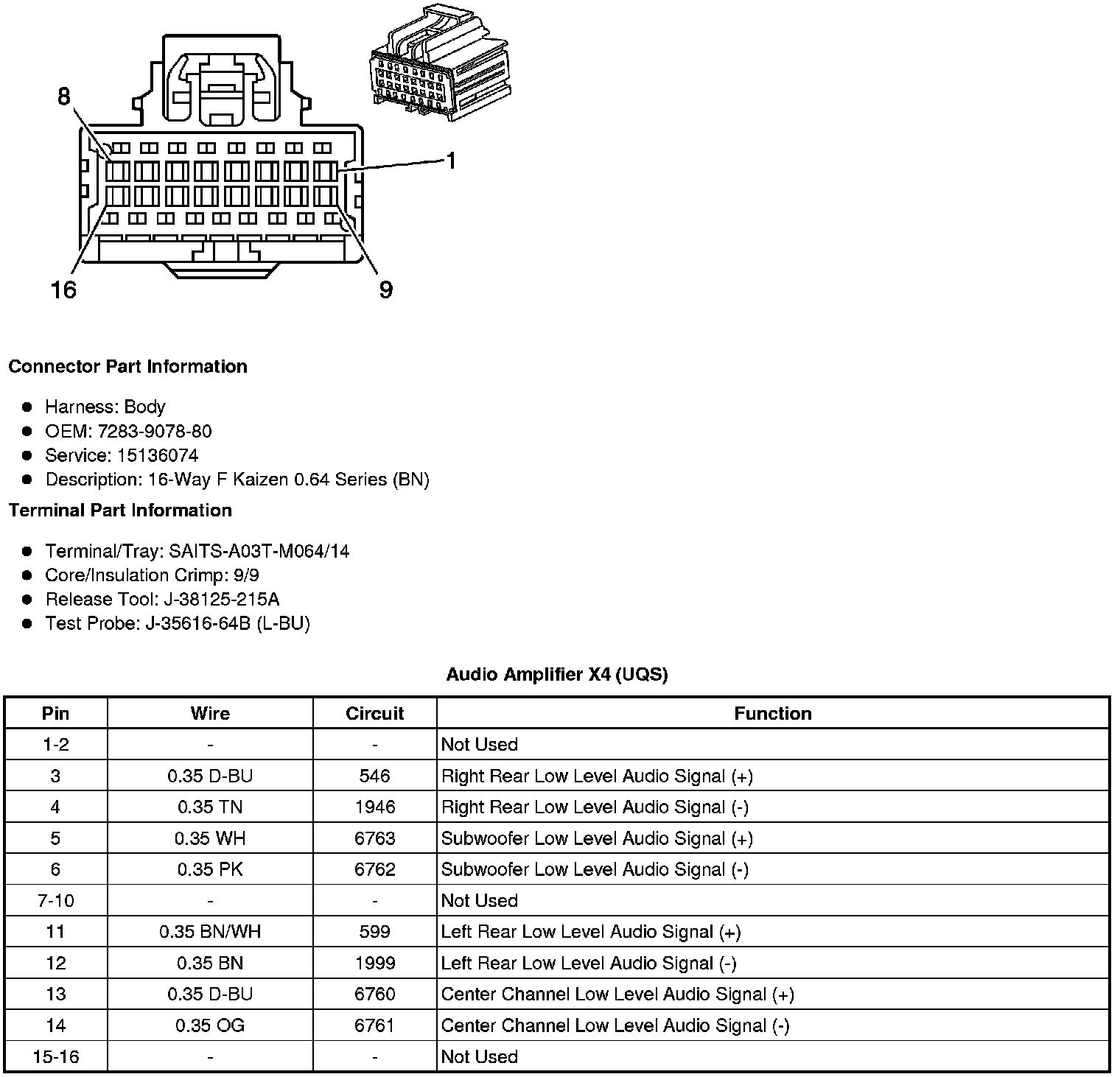

Audio Amplifier X4 (UQS)
